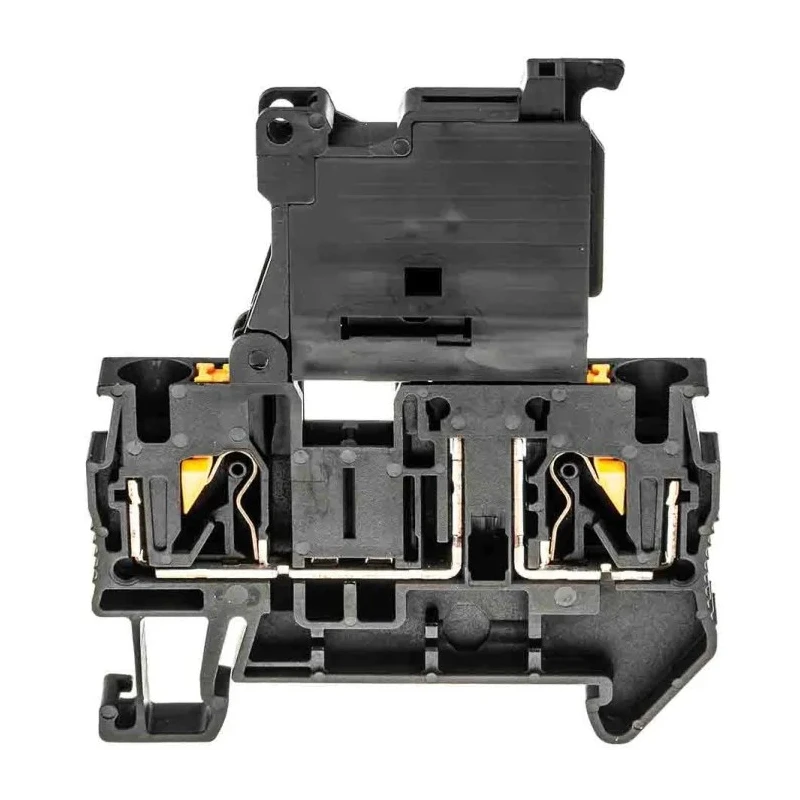

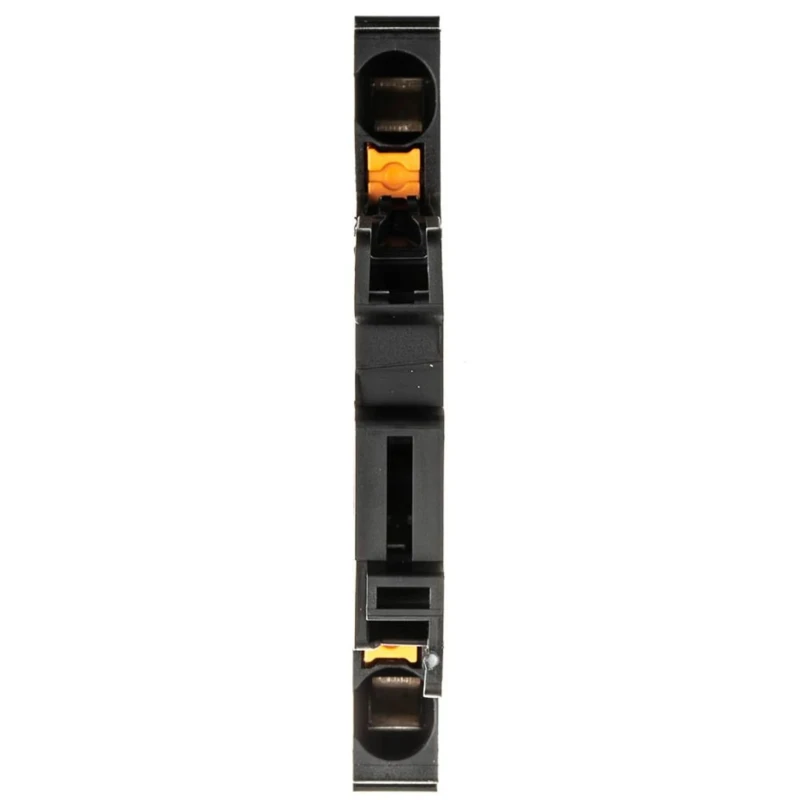

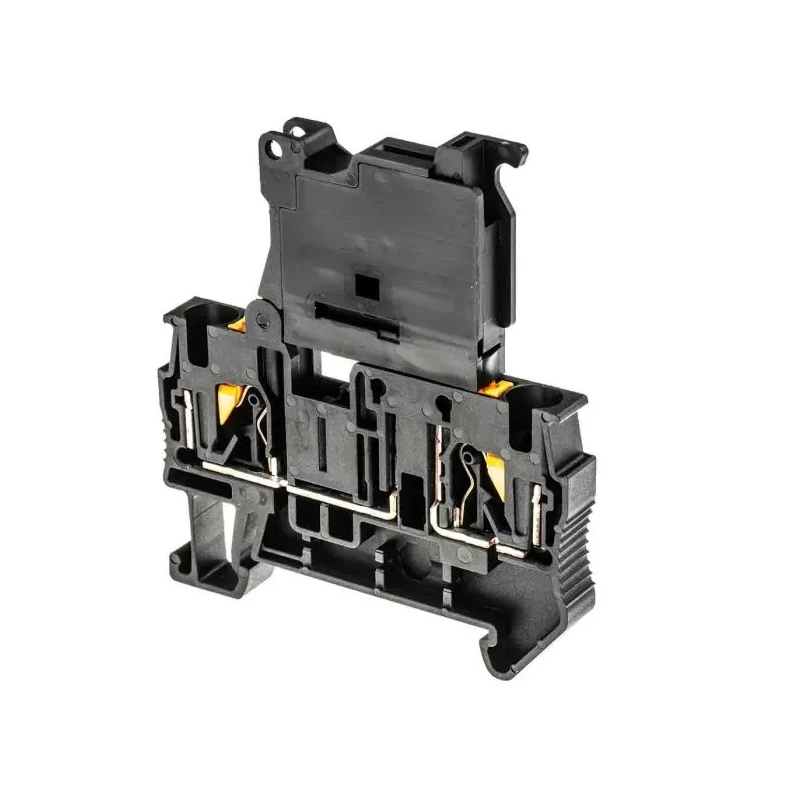

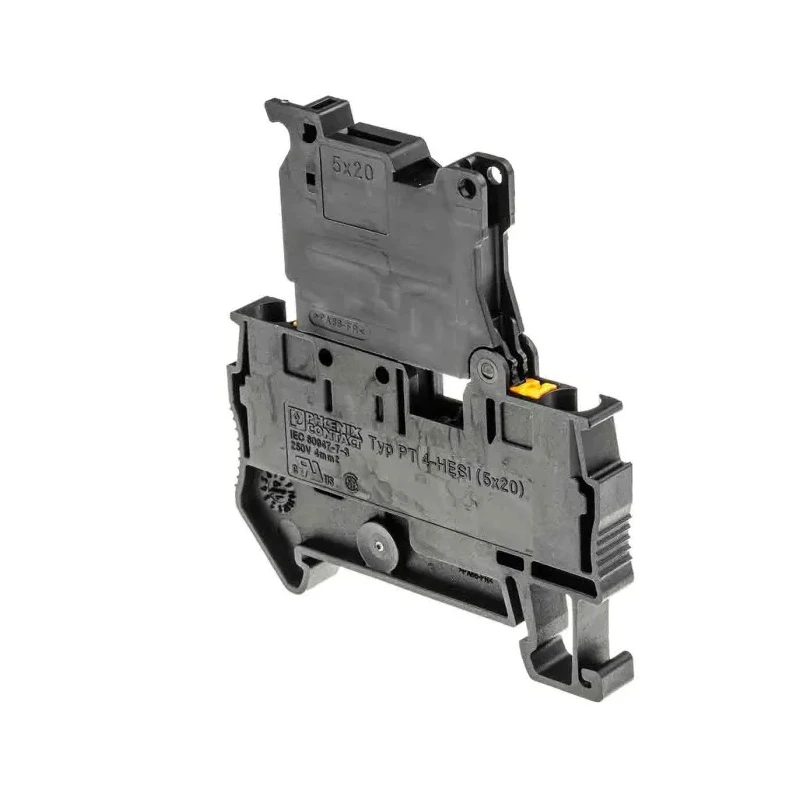

Phoenix Contact Fuse Modular DIN Rail Terminal Block PT 4-HESILA 250 (5X20) Black 250V 6.3A Push-In Termination 3211907
Specifications
| Country of Origin | Poland |
|---|---|
| Voltage | 250V |
| Brand | Phoenix Contact |
| Colour | Black |
| Model | 3211907 |
| Series | PT 4-HESILA 250 (5X20) |
| Termination Type | Push-in |
| Maximum Operating Temperature | 105°C |
| Number of Levels | 1 |
| Sub Type | Fuse Modular |
| Minimum Operating Temperature | -60°C |
| Pitch | 6.2mm |
| Standards/Approvals | DNV, CSA, NK, LR, EAC |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 10AWG |
| Cable CSA | 0.2, 6mm² |
| Terminal Block Current | 6.3A |
Key Features
- Operates at 250 volts with a maximum current rating of 6.3 amps.
- Compatible with cable cross sections from 0.2 to 6 mm² and wire sizes AWG 24 to AWG 10.
- Features a push-in termination type for tool-free wiring.
- Constructed with durable PA insulating material and black color for easy identification.
- Designed for a single-level fuse with fuse size 5 x 20 mm for circuit protection.
- Wide operating temperature range from -60°C to 105°C for use in harsh environments.
- Complies with safety standards including IEC 60947-7-3 and approvals from DNV, CSA, NK, LR, and EAC.
- Surge voltage rating of 4 kV ensures robust protection against power spikes.
Product Description
Phoenix Contact 3211907 Fuse Modular Terminal Block PT 4-HESILA 250 is a high-quality DIN rail terminal designed to provide reliable fuse protection in electrical circuits. Operating at 250 V and 6.3 A, it supports cable cross sections ranging from 0.2 mm² to 6 mm², accommodating wire sizes from AWG 24 to AWG 10. The push-in termination technology enables tool-free installation, saving time and reducing wiring effort.
This terminal block features robust black polyamide insulating material that withstands mechanical impacts, chemical splashes, and environmental stresses, making it ideal for demanding industrial and outdoor applications. Its single fuse level supports 5 x 20 mm fuse inserts, delivering effective short circuit and overload protection.
Designed to operate safely across a wide temperature range from -60°C to 105°C, this unit complies with IEC 60947-7-3 safety standards and has certifications from DNV, CSA, NK, LR, and EAC. The device also offers a surge voltage rating of 4 kV to protect sensitive equipment from voltage spikes.
This fuse modular terminal block is widely employed in industrial automation, railway engineering, and electrical distribution systems for enhanced circuit safeguarding and reliable termination performance.
250 V rated voltage and 6.3 A terminal block current for low-voltage fuse protection. Compatible with cable sizes from 0.2 to 6 mm² and wire sizes AWG 24 - 10 for versatile wiring options. Tool-free, push-in termination system for quick and efficient installation.
Robust PA insulating housing ensures durability in harsh industrial environments. Single fuse level designed for 5 x 20 mm fuse inserts for effective circuit protection. Wide temperature tolerance between -60°C and +105°C for reliable operation under varying conditions.
Surge voltage resistance of 4 kV to safeguard against voltage spikes. Certified to IEC 60947-7-3 and approved by DNV, CSA, NK, LR, and EAC for safety and compliance. Manufactured exclusively in Poland guaranteeing high-quality standards.
Explore the Electronics Components category at EnvMart for more advanced DIN Rail Terminal Blocks and related industrial electrical protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block operates at a maximum voltage of 250V.
It has a maximum current rating of 6.3A.
This terminal block is compatible with wire sizes from AWG 24 to AWG 10.
It supports cable cross sections ranging from 0.2 mm² to 6 mm².
It features a push-in termination type for tool-free wiring.
It operates within a wide temperature range from -60°C to 105°C.
The surge voltage rating is 4 kV, providing protection against voltage spikes.
It is designed for a single fuse level supporting 5 x 20 mm fuse inserts.
It is constructed with durable black polyamide insulating material.
It complies with IEC 60947-7-3 and has approvals from DNV, CSA, NK, LR, and EAC.
This terminal block is manufactured in Poland.
It features a single level design.
