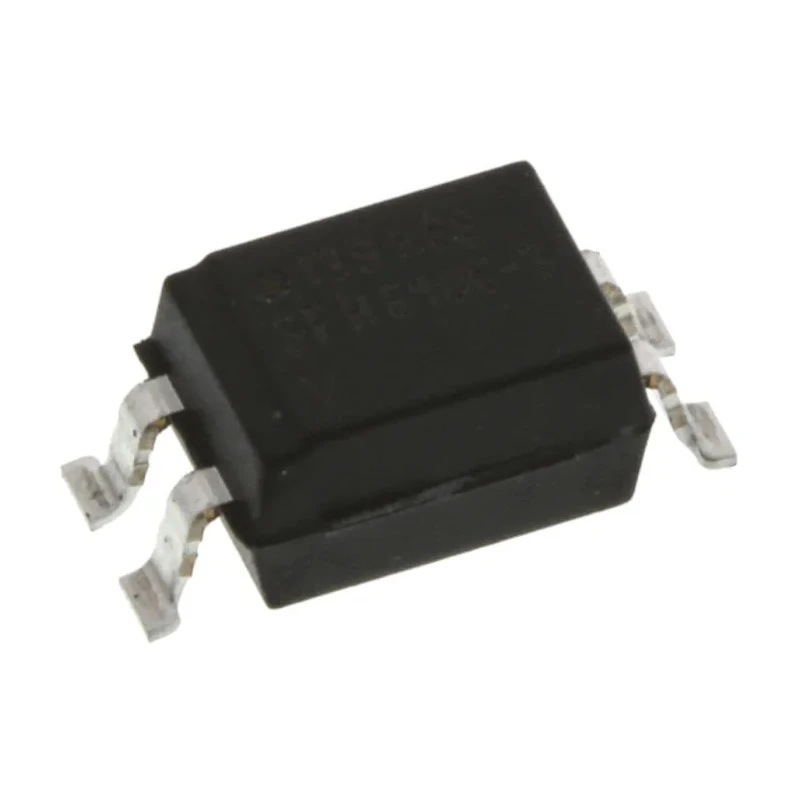

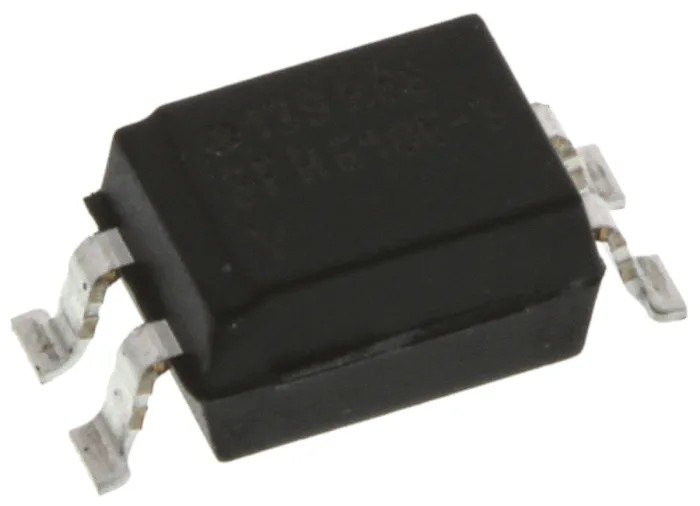

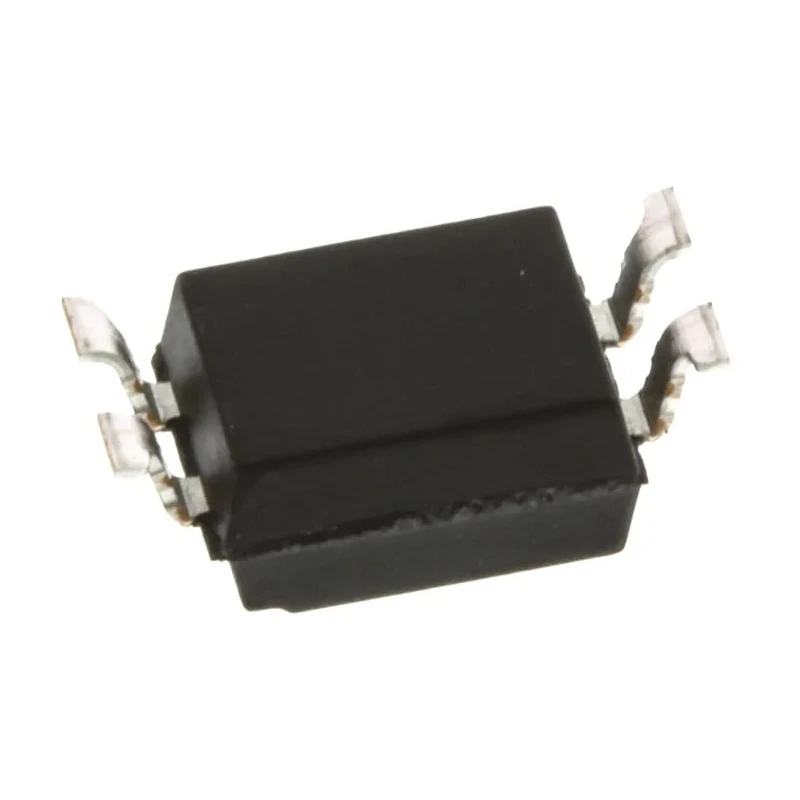

Vishay DC Input Transistor Output Optocoupler Surface Mount 4-Pin 1 Channel SFH6106-3T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | SFH6106-3T |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Output type | Transistor |
| Series | SFH |
| Maximum Operating Temperature | 100°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Standards/Approvals | EN, IEC, UL |
| Maximum Forward Voltage | 1.65V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 3μs |
| Maximum Current Transfer Ratio | 2% |
| Typical Fall Time | 14μs |
| Minimum Current Transfer Ratio | 100% |
| Isolation Voltage | 5300V ac |
Key Features
- Supports DC input current type at a maximum of 60mA.
- Provides up to 5300 Vrms isolation voltage ensuring strong electrical separation.
- Typical rise time is 3 microseconds and fall time is 14 microseconds.
- Operates reliably from -55°C to 100°C temperature range.
- Packaged on tape and reel for efficient automated assembly.
- Includes 1 channel with a transistor output type configuration.
- Maximum forward voltage is 1.65V, supporting low power application use cases.
- Meets EN, IEC, and UL standards for quality and safety compliance.
Product Description
Vishay SFH6106-3T is a DC input optocoupler designed for surface mount technology with 4 pins and 1 transistor output channel. It has a maximum forward voltage of 1.65V and supports a maximum input current of 60mA, operating efficiently across a temperature range from -55°C to 100°C.
This optocoupler provides an isolation voltage of up to 5300 Vrms, making it suitable for applications requiring high-voltage isolation such as isolation in AC adapters, switch mode power supplies, programmable logic controllers, industrial controls, telecom systems, smart meters, office equipment, and solar power monitoring systems.
The device has a typical rise time of 3μs and a fall time of 14μs, enabling swift signal transmission and response. Packaged in tape and reel format, it is ready for automated assembly processes, improving manufacturing efficiency.
Compliant with EN, IEC, and UL standards, the SFH6106-3T ensures reliable and safe operation in demanding electrical environments. Its transistor output configuration supports a broad range of industrial and commercial use cases.
Supports DC input current type at a maximum of 60mA. Provides 5300Vrms isolation voltage for electrical separation. Typical rise time of 3 microseconds and fall time of 14 microseconds. Operating temperature range from -55°C to 100°C.
Packaged on tape and reel for assembly efficiency. Single channel transistor output configuration. Maximum forward voltage of 1.65V for low power usage. Complies with EN, IEC, and UL standards. Ideal for use in industrial, telecom, smart meters, and solar applications.
This Vishay optocoupler is designed to meet rigorous industrial standards and is ideal for electronic component applications requiring reliable electrical isolation and fast switching performance. For more innovative and high-quality Optocouplers, explore the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum input current of 60mA.
It provides an isolation voltage of up to 5300 Vrms, ensuring strong electrical separation.
This unit operates reliably within a temperature range from -55°C to 100°C.
The typical rise time is 3 microseconds and the fall time is 14 microseconds.
It is packaged on tape and reel, which facilitates efficient automated assembly.
The SFH6106-3T features a transistor output configuration.
It meets EN, IEC, and UL standards for quality and safety compliance.
This model includes 1 channel with a transistor output type configuration.
The maximum forward voltage is 1.65V, supporting low power applications.
This optocoupler is designed for surface mount technology.
The SFH6106-3T is manufactured in India.
