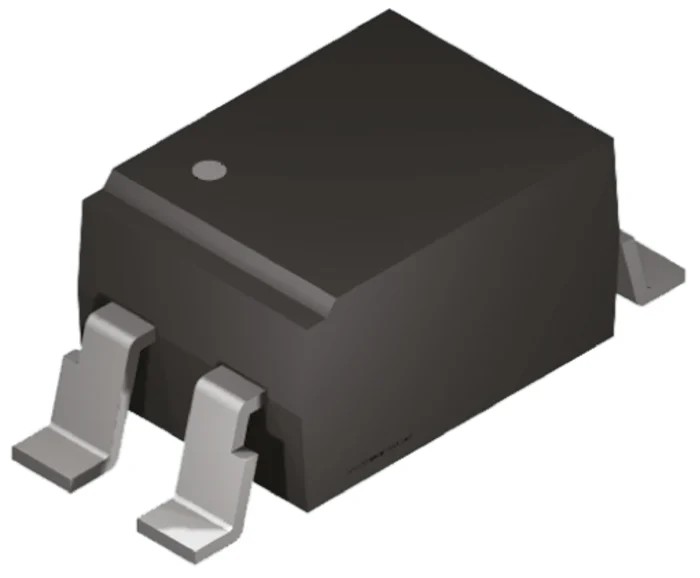

Vishay SFH6156-2X001T DC Input Phototransistor Output Optocoupler Surface Mount 4-Pin SFH6156-2X001T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | SFH6156-2X001T |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Output type | Phototransistor |
| Series | SFH |
| Maximum Operating Temperature | 100°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Standards/Approvals | EN, IEC, UL |
| Maximum Forward Voltage | 1.65V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 3μs |
| Maximum Current Transfer Ratio | 125% |
| Typical Fall Time | 14μs |
| Minimum Current Transfer Ratio | 0.63% |
| Isolation Voltage | 5300V ac |
Key Features
- This optocoupler features a maximum forward voltage of 1.65 V.
- It supports a maximum input current of 60 mA for robust signal transmission.
- Isolation voltage is rated at 5300 V AC, ensuring high safety standards.
- The device operates reliably between -55°C to 100°C operating temperatures.
- Typical rise and fall times are 3 μs and 14 μs respectively, ensuring fast signal response.
- The current transfer ratio ranges from 0.63% minimum to 125% maximum.
- Packaging is supplied on tape and reel for automated assembly.
- Compliant with EN, IEC, and UL standards for quality assurance.
Product Description
Vishay SFH6156-2X001T DC Input Optocoupler is a surface mount device with a phototransistor output and a 4-pin configuration, designed to provide electrical isolation and signal transmission for DC input signals.
This optocoupler model features a maximum forward voltage of 1.65 V and supports input currents up to 60 mA, making it compatible with various industrial electronic applications requiring signal isolation and noise immunity.
Its outstanding voltage isolation at 5300 V AC protects against high-voltage transients and ensures operator and equipment safety. The device functions over a wide temperature range of -55°C to 100°C, suitable for demanding environments.
With a typical rise time of 3 μs and fall time of 14 μs, the SFH6156-2X001T offers fast switching capabilities, improving the efficiency of control and communication systems.
The current transfer ratio, varying between 0.63% and 125%, allows for reliable and adjustable signal strength appropriate for diverse industrial, automotive, and telecommunications systems.
Maximum Forward Voltage: 1.65 V. Maximum Input Current: 60 mA. Isolation Voltage: 5300 V AC. Operating Temperature: -55°C to 100°C. Typical Rise Time: 3 μs; Typical Fall Time: 14 μs. Current Transfer Ratio: 0.63% minimum to 125% maximum.
Packaging: Tape and Reel for automated manufacturing processes. Compliant with EN, IEC, and UL safety standards. Ideal for industrial electronics, telecommunications, office equipment, and power supplies requiring isolation.
This Vishay semiconductor component is engineered to provide high reliability and performance in electronic isolation scenarios. It is particularly valuable for applications in programmable logic controllers, smart meters, and industrial controls where secure electrical isolation is critical.
Discover more high-quality Optocouplers and electronic components from Vishay with EnvMart, your trusted source for industrial and electronic parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of the Vishay SFH6156-2X001T is 1.65 V.
This model supports a maximum input current of 60 mA.
The isolation voltage for the SFH6156-2X001T is rated at 5300 V AC.
It operates reliably between -55°C to 100°C.
The typical rise time is 3 μs and the fall time is 14 μs.
The current transfer ratio ranges from 0.63% minimum to 125% maximum.
It is supplied in tape and reel packaging for automated assembly.
This optocoupler has a 4-pin configuration.
The output type of this model is a phototransistor.
It is compliant with EN, IEC, and UL standards.
It features a surface mount design.
This optocoupler belongs to the SFH series.
