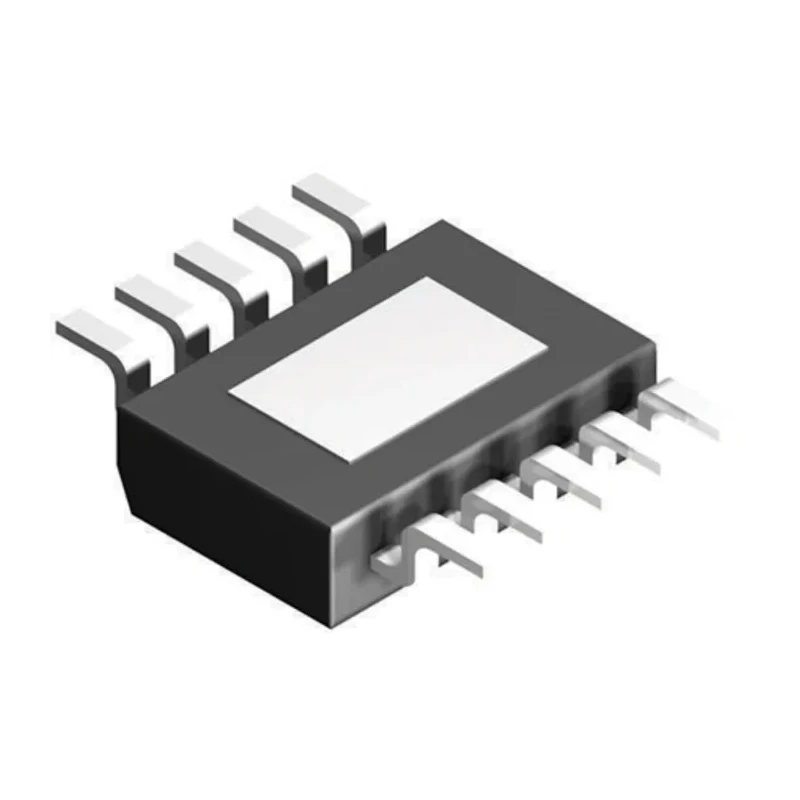

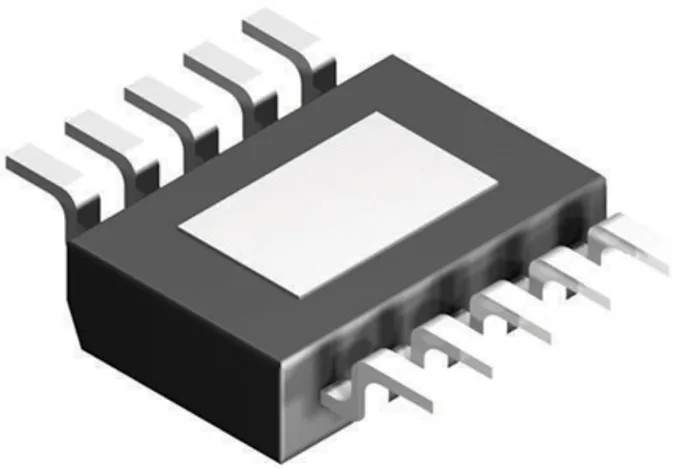

Texas Instruments Buck Converter Surface Mount 0.8V Output Voltage 500 mA Output Current TPS54060DGQ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Length | 3mm |
| Model | TPS54060DGQ |
| Depth | 1.1mm |
| Width | 3mm |
| Mount Type | Surface |
| Series | TPS54060 |
| Output Current | 500mA |
| Maximum Operating Temperature | 150°C |
| Package Type | HTSSOP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Ripple and Noise | 1% |
| Maximum Input Voltage | 60V |
| Standards/Approvals | ESDA, ANSI, JEDEC, REACH, RoHS |
| Minimum Input Voltage | 3.5V |
| Number of Pins | 10 |
| Output Voltage 1 | 0.8V |
| Output Voltage 2 | 57V |
Key Features
- Compact HTSSOP package measuring 3 mm x 3 mm x 1.1 mm.
- Supports wide input voltage range from 3.5 V to 60 V for versatile applications.
- High operating temperature range from -40°C to 150°C for robust performance.
- Low output ripple and noise at 1% ensures stable voltage regulation.
- Integrated step-down DC/DC converter with efficient switching regulator technology.
- 10-pin configuration suitable for surface mounting on PCBs.
- Compliant with ESDA, ANSI, JEDEC, REACH, and RoHS standards.
- Series TPS54060, ideal for embedded power supply designs.
Product Description
Texas Instruments TPS54060DGQ is a highly integrated buck converter providing a low 0.8V output voltage and 500 mA maximum output current. It comes in a compact HTSSOP package suited for surface mount technology, measuring just 3 mm in length and width, and 1.1 mm in depth. This DC/DC step-down converter supports a wide input voltage range from 3.5 V up to a maximum of 60 V, enabling use in diverse power supply applications in industrial, consumer electronics, automotive, and embedded systems.
The component operates reliably within a wide temperature range from -40°C to 150°C, making it suitable for harsh environments. The device boasts low ripple and noise performance at 1%, providing clean and stable voltage output essential for sensitive electronic circuits. It features a 10-pin package adhering to industry standards including ESDA, ANSI, JEDEC, REACH, and RoHS, ensuring compatibility and environmental compliance.
The TPS54060 series from Texas Instruments leverages advanced integrated switching regulator technology to enhance power efficiency and reduce the footprint in power supply design. This makes it ideal for compact embedded designs requiring reliable step-down voltage conversion.
Compact size reduces PCB space requirements. Wide input voltage range covers multiple power source scenarios. Robust thermal range ensures dependable operation under extreme conditions. Low ripple minimizes electrical noise for sensitive applications.
Compliance with key international standards guarantees quality and safety. Surface mount design facilitates automated assembly. Ideal for industrial, communication, and automotive electronics. Explore more switching regulators and DC/DC Converters from Texas Instruments at EnvMart for advanced power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TPS54060DGQ provides a low output voltage of 0.8V.
This model has a maximum output current of 500 mA.
It supports a wide input voltage range from 3.5 V to 60 V.
The dimensions of this unit are 3 mm x 3 mm x 1.1 mm.
It operates within a temperature range from -40°C to 150°C.
This buck converter comes in a compact HTSSOP package.
It features a 10-pin configuration suitable for surface mounting.
The device boasts low ripple and noise performance at 1%.
It is compliant with ESDA, ANSI, JEDEC, REACH, and RoHS standards.
This model is ideal for industrial, consumer electronics, automotive, and embedded systems applications.
The integrated switching regulator technology enhances power efficiency and reduces the footprint in power supply design.
The country of origin for this product is India.
