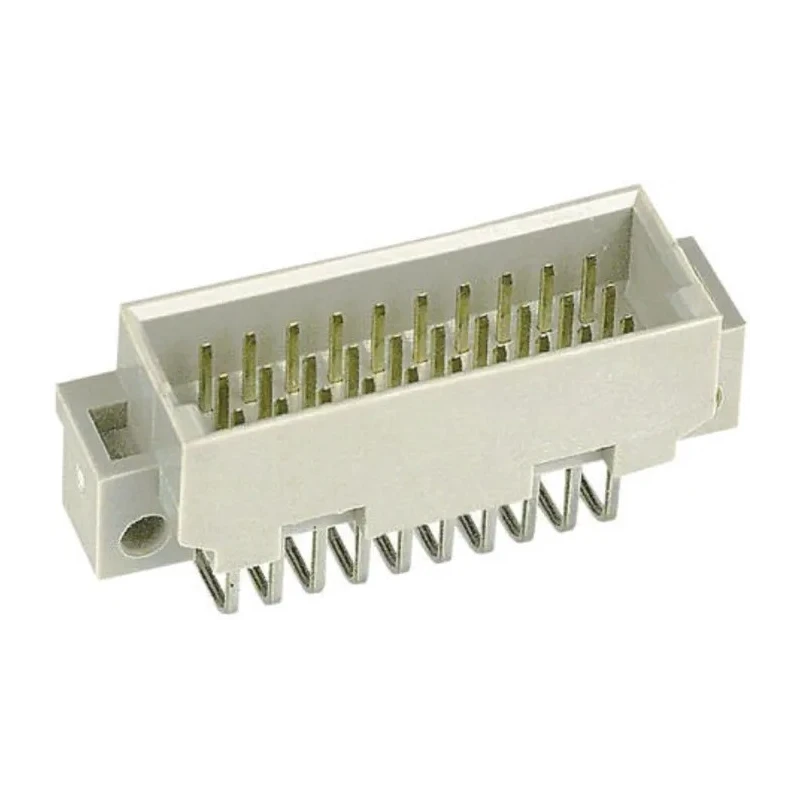

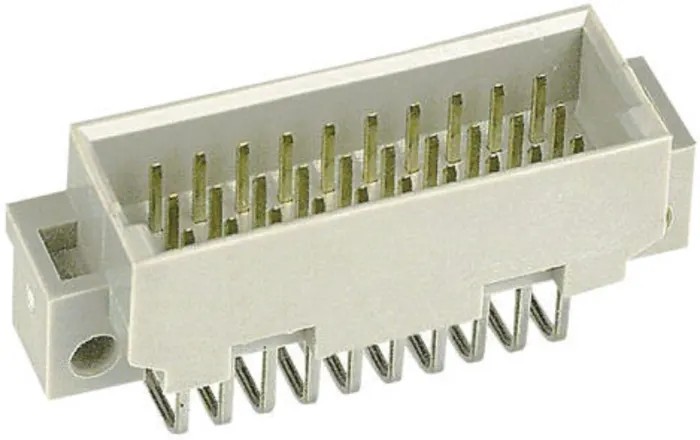

HARTING DIN 41612 30 Way 2.54 mm Pitch 3 Row Male Right Angle Through Hole Solder Class C2 Connector 09251306919

HARTING 09251306919 DIN 41612 Connector is a high-quality electrical connector engineered for industrial and electronic applications requiring robust and precise connections. This 30 way connector features three rows of male contacts arranged in the standard 2.54 mm pitch format facilitating reliable signal and power distribution in complex assemblies.

Manufactured in Germany, this connector employs copper alloy contacts plated with gold over nickel to provide excellent electrical conductivity and corrosion resistance, essential for longevity and reliability in demanding environments.

The right angle orientation and through hole mounting type ensure secure installation and mechanical stability on printed circuit boards (PCB). It supports a rated current of 2 Amps with a maximum contact resistance specified at 20 milliohms, minimizing energy losses and heat generation.

Its housing is fabricated from fibreglass reinforced thermoplastic, offering exceptional durability, flame resistance, and insulation properties. The connector is rated for a wide operating temperature range from -55°C to 125°C making it suitable for harsh industrial conditions.

The product meets Class C2 solder termination standards and aligns with IEC 60603-2 performance level 2 classifications. Primarily used for interconnections in 19 inch Eurocard racking systems, it is widely employed in industrial automation, telecommunications, and power distribution systems.

This connector features 30 contacts arranged in 3 rows for comprehensive connectivity. The pitch between contacts is 2.54 mm ensuring precise signal transmission. Constructed with copper alloy contacts plated with gold over nickel for enhanced conductivity and corrosion resistance.

Rated for a current of 2A with a maximum contact resistance of 20 mΩ for low power loss. Designed with a right angle orientation and through hole mount for stable PCB installation. Operating temperature range from -55°C up to 125°C ensuring performance stability in extreme environments.

Housing made of fibreglass reinforced thermoplastic providing durable and flame-resistant insulation. Conforms to Class C2 solder termination type and IEC 60603-2 performance level 2 specifications. Suitable for interconnecting 19 inch Eurocard racking systems and industrial electronic applications.
