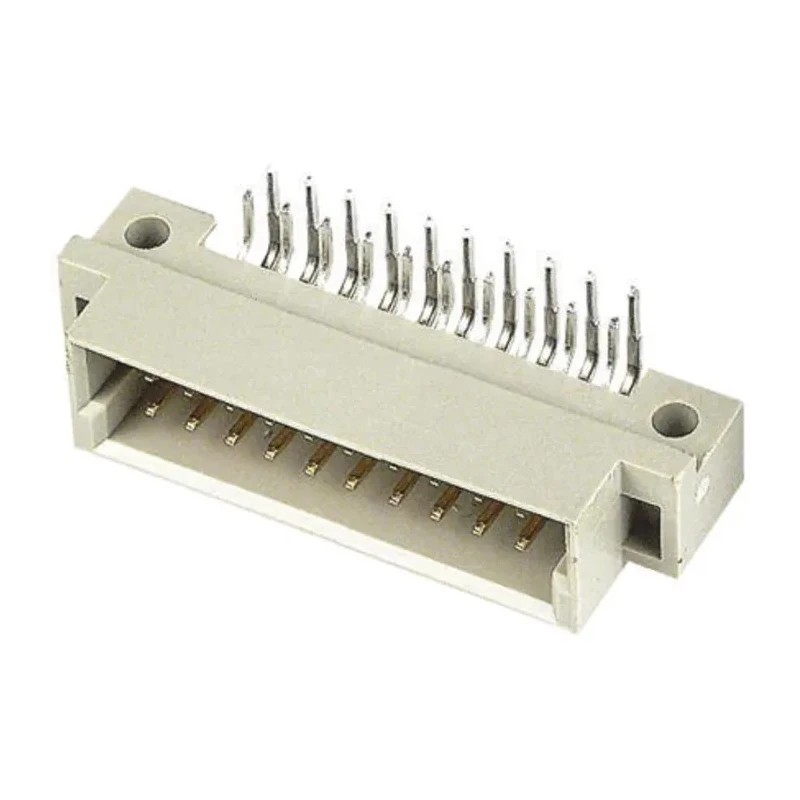

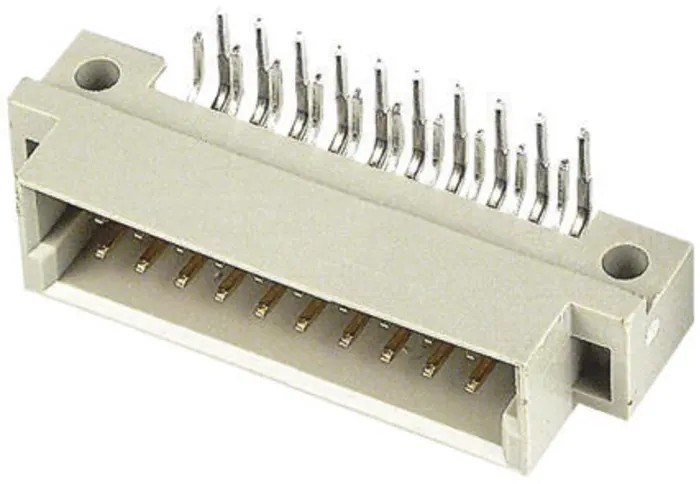

HARTING DIN 41612 20 Way 2.54 mm Pitch Type Through Hole Male Connector 3 Row, Solder Class C2 09241206921

HARTING 09241206921 DIN 41612 Connector is a precision-engineered 20 Way male connector featuring a 2.54 mm pitch and 3 rows designed for through hole PCB mounting. It belongs to the Type C/2 class with solder termination Class C2, ensuring dependable solderable connections in demanding electronic assemblies.

This connector is constructed with copper alloy contacts plated with gold over nickel for enhanced electrical performance and resistance to oxidation. Housed in durable Polybutylene Terephthalate material, it withstands mechanical stress and offers excellent thermal stability with an operating temperature range of -55°C to 125°C.

Designed to the DIN 41612 standard and rated for 2 amperes per contact, it is well suited for industrial, laboratory, manufacturing, and communication equipment requiring robust and reliable backplane connectors. Its straight orientation and 3-row configuration support efficient PCB layout and signal integrity.

The performance level 2 compliance as per IEC 60603-2 signifies its high reliability in electronic interconnections. This product is an essential component in 19-inch Eurocard racking systems and similar electronic rack-mount applications.

Manufactured in Germany, this HARTING connector assures premium quality and durability. The through hole mounting style provides excellent mechanical retention and electrical contact strength, making it ideal for high vibration and demanding environments.

Designed for reliable electrical connections with 20 contacts providing current rating up to 2A. Features a straight orientation suitable for various PCB mounting configurations. Gold over nickel contact plating ensures excellent conductivity and corrosion resistance.

Constructed with Polybutylene Terephthalate housing and copper alloy contacts for durability. Supports wide operating temperature range from -55°C to 125°C for harsh environment applications. Meets DIN 41612 standard and is part of Harting series with performance level 2 compliant to IEC 60603-2.

Through hole mounting provides strong mechanical and electrical connection stability. Ideal for use in electronic equipment requiring robust backplane and rack connector solutions. Originates from Germany with high-quality manufacturing standards.
