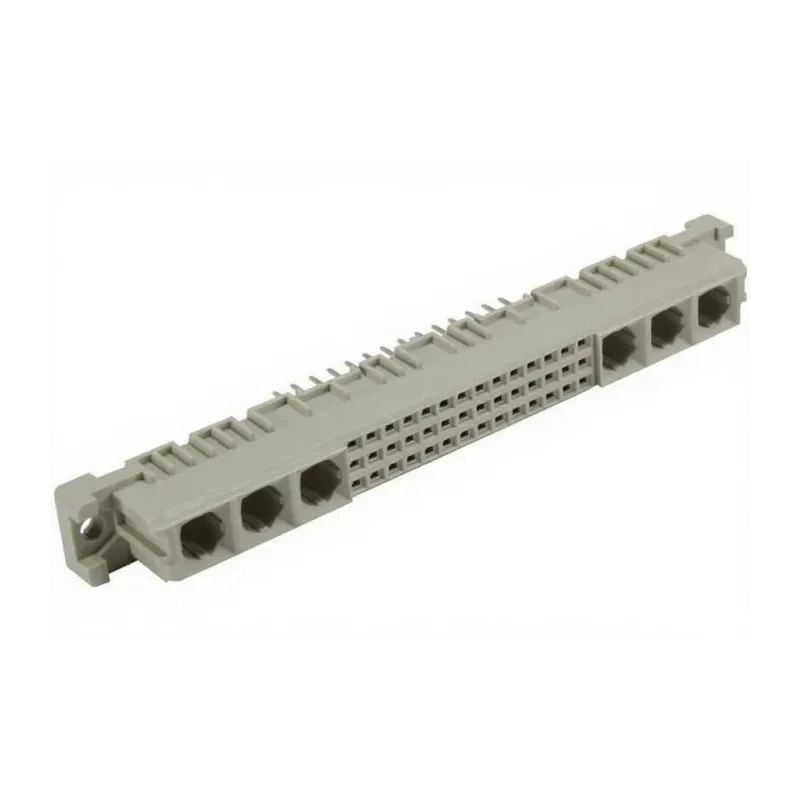

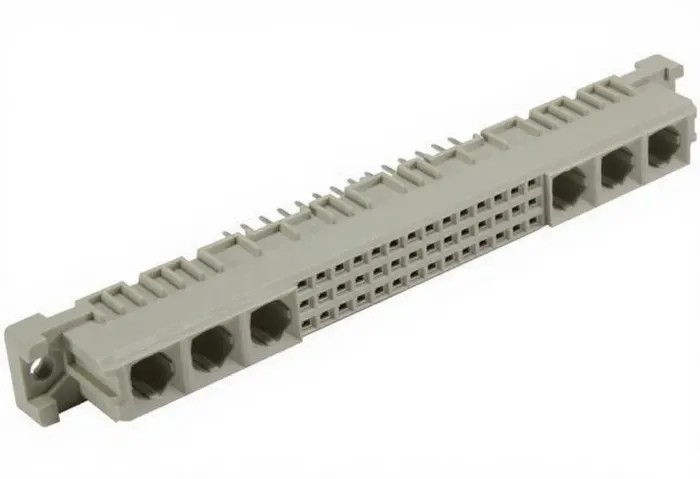

HARTING DIN 41612 48 Way 2.54 mm Pitch Type Through Hole Type C/2 Solder Class C2 3 Row Female Straight 09032426804

HARTING 09032426804 DIN 41612 Connector is a high-quality, 48-way female backplane connector with a 2.54 mm pitch, designed for through-hole mounting applications. This type C/2, class C2 connector features a robust Polybutylene Terephthalate housing and copper alloy contacts plated with gold over nickel to provide strong electrical conductivity and resistance to corrosion. It supports 3 rows with straight orientation to facilitate industrial-grade electronic interconnections.

Operating reliably in temperatures from -55°C to 125°C, this connector is engineered to perform in harsh industrial environments. It carries a current rating of 2 A and exhibits minimal contact resistance of 20 mΩ. Its solder termination ensures secure and durable assembly in PCB applications.

DIN 41612 connectors like the 09032426804 model are widely used in telecommunications, data communications, and measurement and control equipment, compatible with standard 19-inch Eurocard racking systems. They enable efficient communication pathways between plug-in cards and rack wiring, either at right angles or between parallel PCBs arranged vertically or horizontally.

This DIN 41612 connector supports 48 contacts with a 2.54 mm pitch for precision interfacing. It features a solder termination type for secure through-hole mounting. Gold plating over nickel ensures excellent contact conductivity and corrosion resistance.

The connector housing is made from durable Polybutylene Terephthalate suitable for industrial use. Rated for 2 A current with a maximum contact resistance of 20 mΩ ensures reliable electrical performance. Operating temperature ranges from -55°C to 125°C, making it suitable for extreme environments.

The connector is designed as female with a straight orientation in a 3-row configuration. Meets performance level 2 according to IEC 60 603-2 standards, ensuring quality compliance. Designed for applications in telecommunications, data communications, and measurement/control systems.

This product is made in Germany, reflecting high manufacturing standards and quality assurance. It is an essential component in electronics systems requiring secure and precise backplane connections. EnvMart offers this HARTING DIN 41612 connector as part of its extensive portfolio of electronic components for industrial, laboratory, telecommunications, and manufacturing applications.

Explore EnvMart's comprehensive range of DIN 41612 Connectors and related electronic components to find compatible complementary parts and enhance your system design efficiency.
