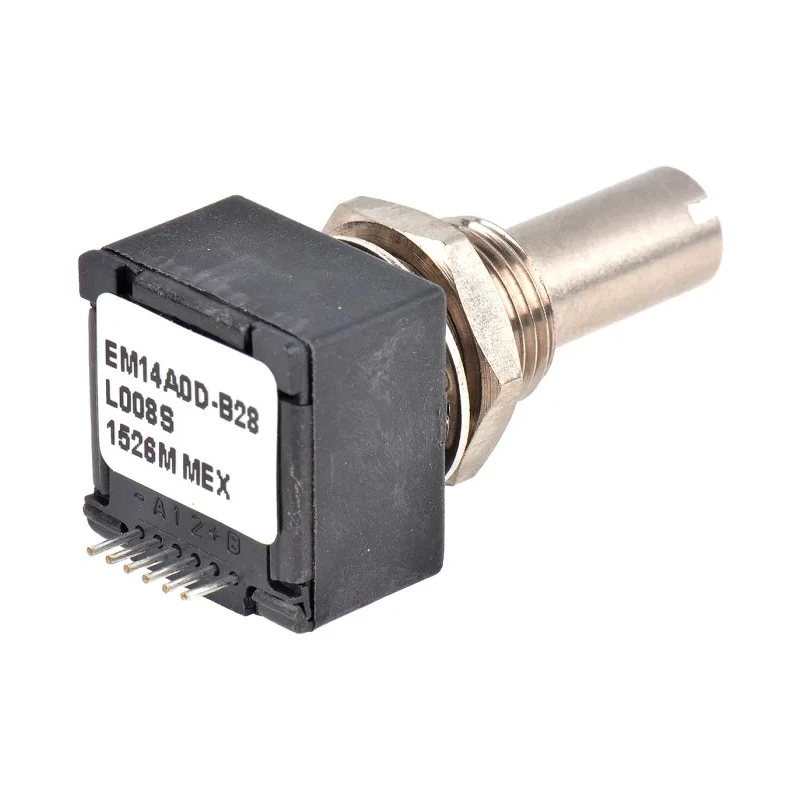

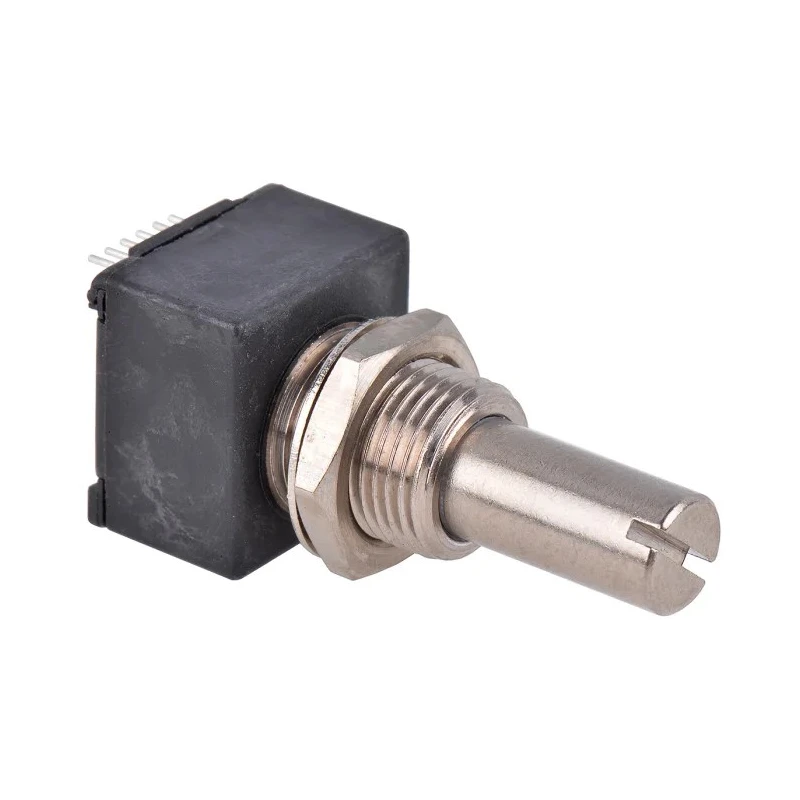

Bourns Optical Incremental Encoder 5V dc 8 ppr Quadrature Signal Slotted Shaft 6.35 mm Panel Mount EM14
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Bourns |
| Model | EM14 |
| IP Rating | IP54 |
| Mount Type | Panel Mount |
| Series | EM14 |
| Overall Width | 14.25mm |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Shaft Diameter | 6.35mm |
| Overall height | 14.76mm |
| Shaft Type | Slotted |
| Terminal type | Axial Multi Purpose Pin |
| Interface Type | HMI |
| Pulses per Revolution | 8ppr |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 5V dc |
| Overall Depth | 32.05mm |
| Encoder Technology | Optical |
| Maximum Revolutions | 120rpm |
| Output Signal Type | Quadrature |
Key Features
- This encoder operates with a maximum supply voltage of 5V dc.
- It produces quadrature output signals suitable for precise motion detection.
- The slotted shaft has a diameter of 6.35 mm, suited for panel mounting.
- The encoder features an IP54 rating ensuring splashproof protection.
- Operates reliably between -40°C and 70°C temperature range.
- Compatible with HCMOS, CMOS, and TTL interfaces for versatile applications.
- Compact overall dimensions with 14.76 mm height, 14.25 mm width, and 32.05 mm depth.
- Designed for human/machine interface (HMI) and motion control sensor applications.
Product Description
Bourns EM14 Series Optical Incremental Encoder model EM14 is a high-performance rotary optical encoder designed to provide precise motion control feedback with a compact 14 mm package size. It operates at a maximum supply voltage of 5V dc and outputs quadrature signals through an 8 pulses per revolution (ppr) optical increment, ideal for accurate position sensing.
The encoder features a slotted shaft with a diameter of 6.35 mm, optimized for panel mount applications with a splashproof shaft seal ensuring durability under IP54-rated environments. The operational temperature range is broad, from -40°C to 70°C, suitable for diverse industrial and automation conditions.
Equipped with axial multipurpose pin terminals and compatibility with HCMOS, CMOS, and TTL interface types, this encoder integrates well with various control systems. Its compact dimensions of 14.76 mm height, 14.25 mm width, and 32.05 mm depth make it ideal for space-constrained applications.
Typical uses include human/machine interface (HMI) systems and other motion control sensor applications requiring high reliability and long rotational life cycles. This encoder complies with RoHS directives and is manufactured in Mexico under stringent quality controls.
This encoder operates with a maximum supply voltage of 5V dc. It produces quadrature output signals suitable for precise motion detection. The slotted shaft has a diameter of 6.35 mm, suited for panel mounting. The encoder features an IP54 rating ensuring splashproof protection.
Operates reliably between -40°C and 70°C temperature range. Compatible with HCMOS, CMOS, and TTL interfaces for versatile applications. Compact overall dimensions with 14.76 mm height, 14.25 mm width, and 32.05 mm depth.
Designed for human/machine interface (HMI) and motion control sensor applications. Manufactured in Mexico to RoHS standards for quality and environmental compliance. Choose from EnvMart’s extensive catalog for advanced electronics and automation control gear to complement your application needs.
Explore more products in our Motion Control Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The encoder operates with a maximum supply voltage of 5V dc.
It produces quadrature output signals suitable for precise motion detection.
The slotted shaft has a diameter of 6.35 mm, which is suited for panel mounting.
It operates reliably between -40°C and 70°C.
The encoder has overall dimensions of 14.76 mm height, 14.25 mm width, and 32.05 mm depth.
It is compatible with HCMOS, CMOS, and TTL interfaces.
The encoder has a rating of 8 pulses per revolution (ppr).
It features an IP54 rating, ensuring splashproof protection.
The maximum revolutions for this encoder is 120 rpm.
It is equipped with axial multipurpose pin terminals.
It is designed for human/machine interface (HMI) systems and motion control sensor applications.
This encoder is manufactured in Mexico under stringent quality controls and complies with RoHS directives.
