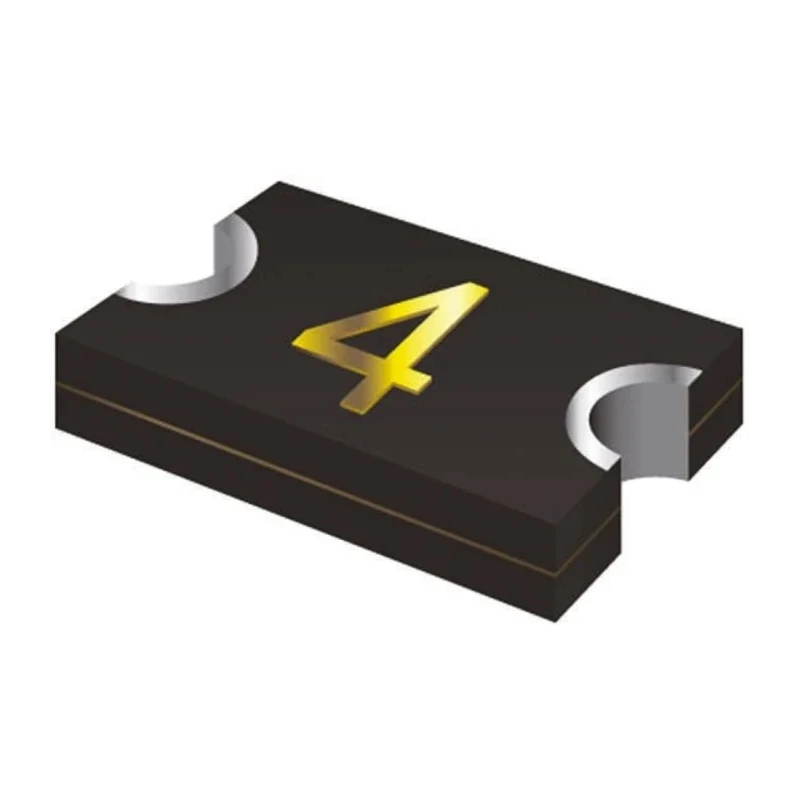

Bourns Resettable Fuse 0.1A Hold Current, 15V Voltage, 0.5W Power Dissipation MF-PSMF010X-2
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 15V |
| Brand | Bourns |
| Height | 0.85mm |
| Length | 2.3mm |
| Model | MF-PSMF010X-2 |
| Width | 1.5mm |
| Current Rating | 40A |
| Series | MF-PSMF |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 0805 |
| Trip Current | 0.3A |
| Power Dissipation | 0.5W |
| Terminal Material | Gold Plated Nickel |
| Standards/Approvals | RoHS, UL |
| Time to Trip | 1.5s |
| Hold Current | 0.1A |
| Minimum Resistance | 1Ω |
| Maximum Resistance | 7.5Ω |
Key Features
- Provides effective protection against excessive currents by switching rapidly from low to high resistance.
- Compact 0805 surface mount package suitable for space-saving PCB layouts.
- Gold plated nickel terminals ensure excellent conductivity and corrosion resistance.
- Power dissipation rating of 0.5W supports efficient thermal management during operation.
- Automatic resettable design allows thousands of use cycles without fuse replacement.
- Operating temperature range from -40°C to 85°C for diverse environmental conditions.
- Fast trip time of 1.5 seconds ensures quick response to fault events.
- Ideal for USB port, motherboard, battery, and port protection in various electronic devices.
Product Description
Bourns MF-PSMF010X-2 resettable fuse is designed for dependable protection of electrical and electronic circuits against overcurrent conditions and short circuits. It features a low 0.1A hold current and a rated voltage of 15V, suitable for USB ports, PC motherboards, mobile phones, PDAs, digital cameras, and game consoles.
The device is housed in a compact 0805 reel package with surface mount technology, facilitating space-saving PCB design and fast installation. Its gold plated nickel terminals improve electrical connectivity and corrosion resistance.
With a power dissipation of 0.5W and operating temperature range from -40°C to 85°C, this fuse reliably functions in various operating environments, delivering protection without the need for fuse replacement thanks to its automatic resettable functionality supporting thousands of cycles.
The fast trip time of 1.5 seconds offers rapid response to fault events, protecting sensitive components effectively. Its compact design and high reliability make it suitable for use in security systems, power supplies, automotive and medical equipment, instrumentation, control systems, computers, audio-visual and telecommunication devices.
Effective overcurrent and short circuit protection with automatic reset. Compact 0805 surface mount package for space-saving PCB integration. Gold plated nickel terminals for excellent conductivity and durability. 0.5W power dissipation rating suitable for thermal management.
Wide operating temperature range from -40°C to 85°C. Fast 1.5 second trip time for quick fault response. Ideal for USB, motherboard, battery, and port protection applications.
Bourns Resettable Fuses provide a maintenance-free solution for industrial, consumer electronics, and commercial applications, ensuring long product life and enhanced device safety. Explore more circuit protection devices and Bourns products on EnvMart for your electrical safety needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this resettable fuse is 0.1A.
The maximum operating temperature for this model is 85°C.
This fuse has a trip time of 1.5 seconds.
It can handle a rated voltage of 15V.
The dimensions of this fuse are 2.3mm in length, 1.5mm in width, and 0.85mm in height.
The power dissipation rating for this model is 0.5W.
The minimum operating temperature of this fuse is -40°C.
The terminals are made of gold plated nickel, ensuring excellent conductivity and corrosion resistance.
This resettable fuse comes in a reel package type, suitable for surface mounting.
The minimum resistance is 1Ω and the maximum resistance is 7.5Ω.
This fuse complies with RoHS and UL standards.
This resettable fuse is suitable for applications such as USB ports, PC motherboards, mobile phones, PDAs, digital cameras, and game consoles.
