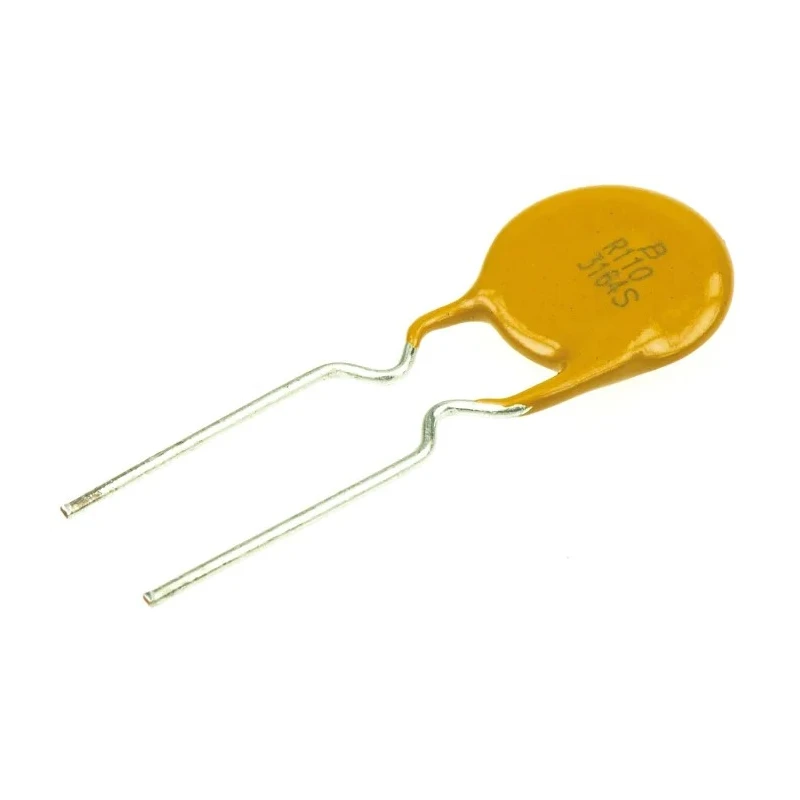

Bourns Resettable Fuse 1.1A Hold Current 30V Radial Lead MF-R110

Bourns MF-R110 is a resettable fuse designed to protect electrical and electronic circuits against excessive currents. This fuse automatically resets thousands of times and requires no maintenance, providing reliable protection with a hold current of 1.1A and a voltage rating of 30V.

Engineered with a cured flame retardant epoxy polymer body that complies with UL 94V-0 standards, the fuse features radial leads with a diameter of 0.51mm for ease of PCB mounting. It has compact dimensions measuring 8.9mm in length, 14mm in height, and 3mm in width, making it suitable for installations where space is limited.

The fuse provides rapid switching from a low resistance state to a very high resistance state in the event of an electrical overload or short circuit, with a trip current of 2.2A and a time to trip of 6.6 seconds. Once the fault condition is corrected and power is removed, the fuse automatically resets to its normal low resistance state, making it maintenance-free.

Operating effectively within a temperature range of -40°C to 85°C, this resettable fuse is ideal for a variety of industrial and commercial uses, including security systems, power supplies, transformers, automotive and medical equipment, instrumentation, control, computers, and peripherals.

Automatically resets itself thousands of times. Radial lead orientation with 0.51mm lead diameter. Rated at 40A current with a hold current of 1.1A. Compact size: 8.9mm length, 14mm height, 3mm width. Flame retardant epoxy polymer body meeting UL 94V-0.

Operating temperature range from -40°C to 85°C. Rapid switching from low to high resistance during overloads. Maintenance-free and reliable circuit protection. RoHS and UL certified for safety and compliance.

This product is part of the Bourns MF-R series resettable fuses. These are widely used in industrial, laboratory, manufacturing, and electronics applications. Explore EnvMart for a comprehensive selection of Resettable Fuses and related components to suit your technical requirements.
