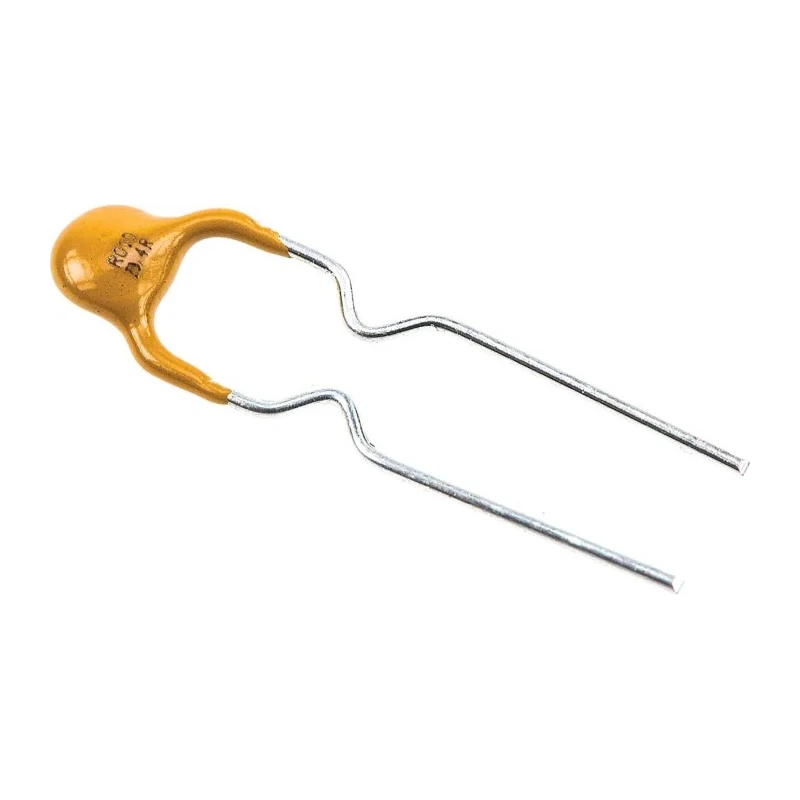

Bourns Resettable Fuse 0.1A 60V Radial Leaded Epoxy Polymer MF-R010

Bourns MF-R010 Resettable Fuse is a high-quality circuit protection device rated at 0.1A hold current and 60V voltage. Its compact radial leaded design facilitates easy PCB mounting in various industrial and commercial electronic applications.

This fuse belongs to the MF-R series known for rapid switching from low resistance to high resistance under electrical overload or short circuit conditions, allowing automatic reset after fault clearance without replacement. The flame retardant epoxy polymer housing ensures safety compliance with UL 94V-0 standards.

Key features include a trip current of 100mA, current rating of 40A, and power dissipation of 0.38W. It operates within a wide temperature range from -40°C to 85°C, guaranteeing stable performance in harsh environments.

The fuse dimensions are 7.4mm in length, 12.7mm in height, and 3.1mm in width, with lead diameter of 0.51mm and radial lead orientation for simple integration into printed circuit boards. It has low minimum resistance of 2.5Ω and maximum resistance of 7.5Ω.

This product is UL and RoHS certified, reflecting compliance with international safety and environmental standards. It is maintenance-free and designed for thousands of automatic reset operations, suitable for use in security systems, power supplies, transformers, automotive and medical equipment, instrumentation and control systems, computers, audio-visual devices, and telecommunications.

Bourns MF-R010 is an essential automatic protective component for modern electronic circuits requiring reliable and rapid response resettable fusing. Automatically resets itself thousands of times after fault conditions are cleared.

Radial leaded fuse with size dimensions of 7.4mm length, 12.7mm height, and 3.1mm width. Low hold current of 0.1A with a trip current of 100mA ensures circuit protection. Operates reliably between -40°C to 85°C with UL and RoHS approvals.

Power dissipation of 0.38W suitable for compact electronic circuit protection. Flame retardant epoxy polymer casing meets UL 94V-0 for high safety. Lead diameter is 0.51mm with radial orientation optimized for PCB mounting.

Widely used in power supplies, security systems, automotive, medical, and telecommunications equipment. Explore more electronic circuit protection devices and fuses at EnvMart for reliable industrial and laboratory applications.
