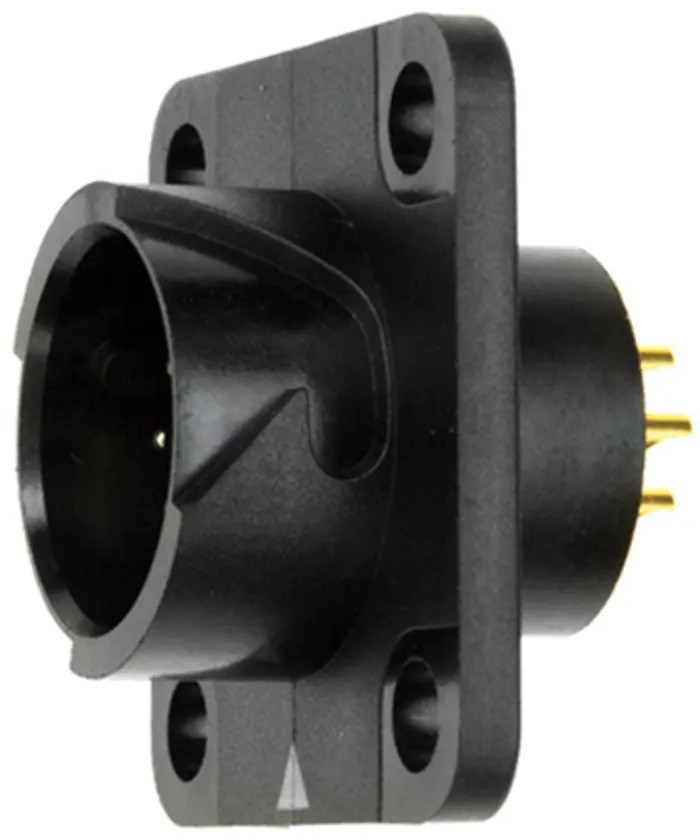

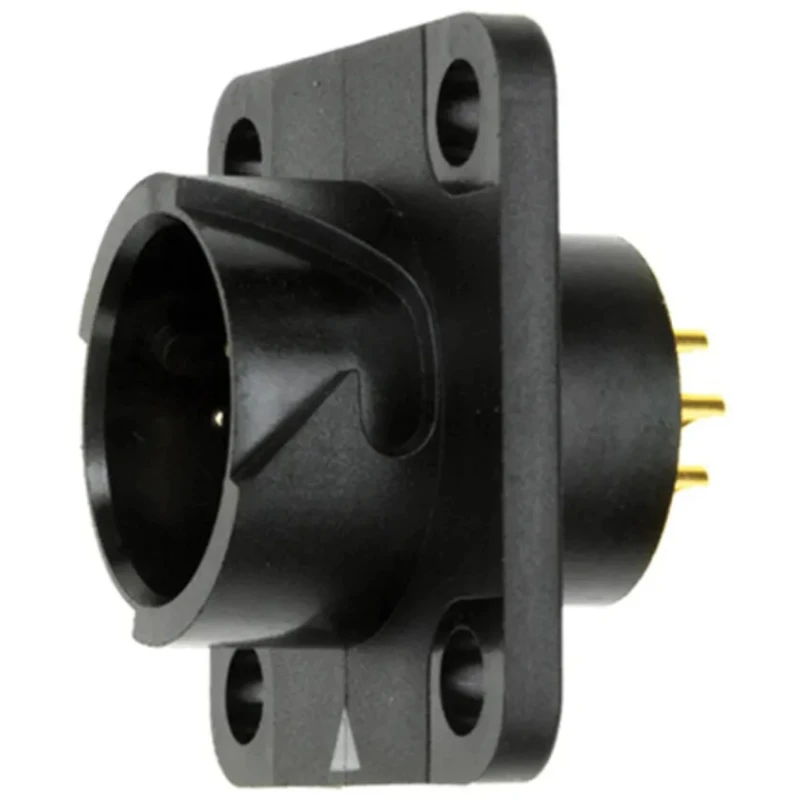

JAE Circular Connector, 10 Contacts, Panel Mount, 14.8 mm Socket, Male, IP67 Rated, 3A Current, 200V Voltage JN1AS10ML2-R
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V |
| Brand | JAE |
| Orientation | Straight |
| Current | 3A |
| Model | JN1AS10ML2-R |
| IP Rating | IP67 |
| Mount Type | Panel Mount |
| Housing Material | Synthetic Resin |
| Contact Material | Copper |
| Series | JN1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -20°C |
| Pole Format | 10 |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shell Size | 23.4 mm |
| Mating Type | Push Lock |
| Connector Size | 14.8 mm |
| Plug/Socket | Socket |
Key Features
- Features a push and twist type one-touch lock mechanism for reliable connectivity.
- Panel mount style ensures straightforward installation in various equipment.
- Constructed with synthetic resin housing for durability and environmental resistance.
- Gold over nickel plating on contacts guarantees excellent conductivity and corrosion resistance.
- Capable of handling 3A current and voltage up to 200V.
- Offers protection against dust and water ingress to IP67 standards.
- Operating temperature ranges from -20°C to 125°C for versatile industrial use.
- Designed with solder termination and straight orientation for seamless wiring.
Product Description
JAE JN1AS10ML2-R Circular Connector is a high-quality panel mount socket connector featuring 10 contacts with male contact gender. Part of the JN1 Series, this connector provides excellent environmental protection with an IP67 rating, making it waterproof and dustproof for demanding industrial settings.
The connector utilizes a synthetic resin housing for robust mechanical strength and electrical insulation. Its gold over nickel contact plating ensures superior electrical performance with corrosion resistance essential for long-term reliability.
This component supports a current rating of 3A and voltage rating of 200V, suitable for power and signal transmission in industrial equipment. The push-lock mating type combined with a push and twist one-touch lock mechanism facilitates quick and secure connections, minimizing maintenance time.
Operating temperatures span from -20°C to 125°C, accommodating a wide range of industrial environments. The connector size is 14.8 mm with a shell size of 23.4 mm, and it features a straight orientation with solder termination for ease of installation.
JAE's JN1 Series connectors are widely used in industrial automation, power distribution, and equipment manufacturing where durability and performance are critical. This connector ensures dependable operation in harsh conditions where dust and moisture protection are required.
Features a push and twist type one-touch lock mechanism for reliable connectivity. Panel mount style ensures straightforward installation in various equipment. Constructed with synthetic resin housing for durability and environmental resistance.
Gold over nickel plating on contacts guarantees excellent conductivity and corrosion resistance. Capable of handling 3A current and voltage up to 200V. Offers protection against dust and water ingress to IP67 standards. Operating temperature ranges from -20°C to 125°C for versatile industrial use.
Designed with solder termination and straight orientation for seamless wiring. Explore the full range of Industrial Circular Connectors at EnvMart for compatible and complementary components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is capable of handling a current of 3A and a voltage of up to 200V.
It has an IP67 rating, providing protection against dust and water ingress.
The housing is made of synthetic resin, while the contacts are copper with gold over nickel plating for enhanced conductivity and corrosion resistance.
The operating temperature range is from -20°C to 125°C, making it suitable for various industrial environments.
It features a solder termination type, allowing for secure and reliable wiring connections.
The shell size of this connector is 23.4 mm.
This model has 10 contacts with a male contact gender.
It supports panel mount installation, facilitating straightforward integration into various equipment.
The connector utilizes a push-lock mating type, which ensures a secure connection.
The connector size is 14.8 mm.
The JAE JN1AS10ML2-R is manufactured in India.
This connector is part of the JN1 Series, designed for industrial applications.
