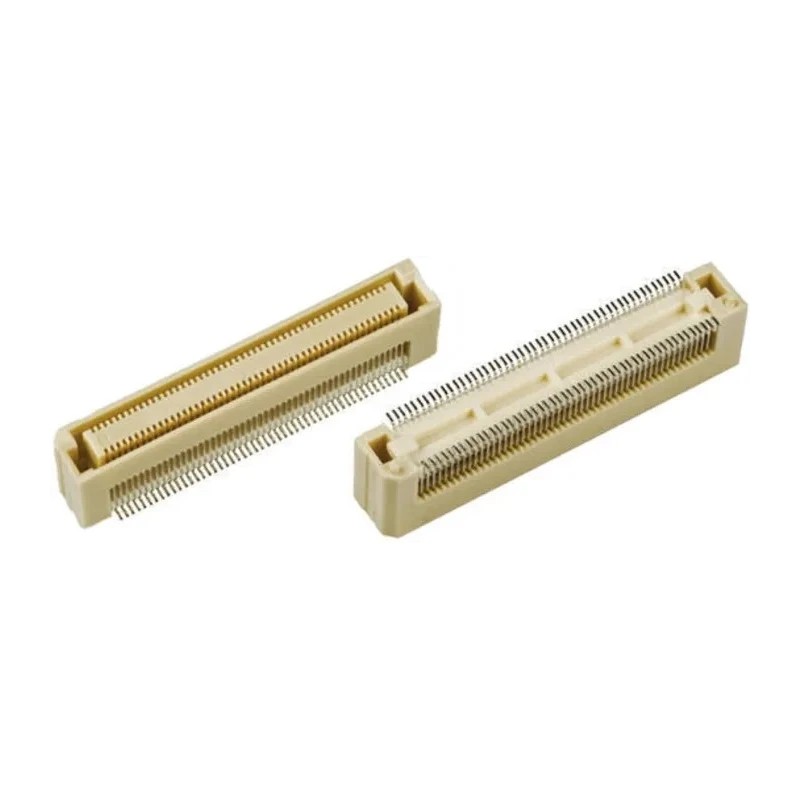

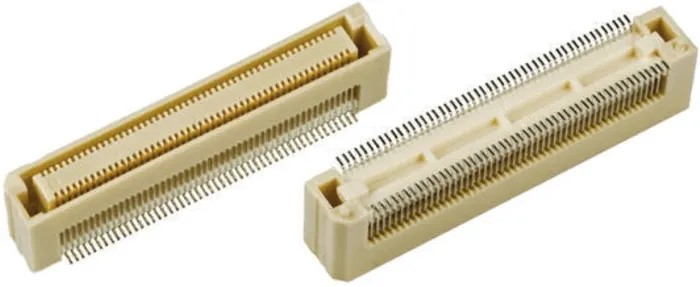

Hirose FunctionMAX FX8C Series Straight Surface PCB Socket, 80-Contact, 2 Row, 0.6 mm Pitch Solder FX8C
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 100V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 400mA |
| Model | FX8C |
| Mount Type | Surface |
| Housing Material | Polyphenylene Sulphide |
| Contact Material | Bronze |
| Series | FunctionMAX FX8C |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.6mm |
| Contact Plating | Gold |
| Number of Contacts | 80 |
| Contact Gender | Female |
| Stacking Height | 16mm |
Key Features
- Designed for board-to-board connections with a 0.6 mm pitch.
- Supports current of 400 mA and voltage up to 100 V.
- Constructed with polyphenylene sulphide housing for durability.
- Features gold-plated bronze contacts for reliable signal transmission.
- Equipped with built-in mating guide ribs allowing +/- 0.6 mm self-alignment tolerance.
- Stacking height of 16 mm for versatile design integration.
- Optimized spring deflection contact design enhances reliability and electrical continuity.
- Mount type is surface mount with straight orientation.
Product Description
Hirose FX8C Series Straight Surface PCB Socket FX8C is an 80-contact, 2-row board-to-board connector with a 0.6 mm pitch designed for high-speed data transmission and reliable electronic performance. Operating at 100 V and 400 mA current, it integrates gold-plated bronze contacts within a durable polyphenylene sulphide housing optimized for SMT surface mounting.
This connector series delivers exceptional signal integrity with a data transmission speed up to 3.125 Gbit/s. Built-in guide ribs enable a self-alignment tolerance of +/- 0.6 mm, facilitating easy and precise mating during PCB assembly. The connectors also feature guide posts of different diameters to prevent misinsertion and ensure correct placement.
The FX8C series stacking height of 16 mm accommodates flexible design needs in compact industrial and electronic equipment. Contacts with an optimized spring deflection design maintain excellent electrical continuity and reliability in demanding environments.
Engineered for use in servers, broadcast equipment, industrial machines, medical devices, and POS terminals, this PCB socket suits advanced high-speed board-to-board connections requiring robust performance from -55°C to 85°C.
High-speed transmission capacity supporting up to 3.125 Gbit/s. Self-aligning mating guide ribs with +/- 0.6 mm tolerance. Gold plating and bronze contacts for enhanced conductivity and corrosion resistance. Surface mount straight orientation with 16 mm stacking height.
Polyphenylene sulphide housing material for thermal and mechanical robustness.
With its reliable mechanical and electrical properties, the Hirose FunctionMAX FX8C PCB Socket FX8C is ideal for industrial, manufacturing, communications, and medical applications requiring space-optimized and high-performance board interconnects.
Explore the EnvironmentMart catalog to find more high-quality PCB Sockets and connectors from trusted brands like Hirose to elevate your electronic system designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hirose FX8C Series PCB socket supports a maximum voltage of 100 V.
This model has a current rating of 400 mA.
The connector features a pitch size of 0.6 mm.
The FX8C series connector has 80 contacts.
The housing is made of polyphenylene sulphide, and the contacts are made of bronze with gold plating.
The stacking height of this PCB socket is 16 mm.
This connector can operate within a temperature range of -55°C to 85°C.
This model is designed for surface mounting.
The FX8C series uses solder termination.
The orientation of this PCB socket is straight.
This PCB socket is suitable for applications in servers, broadcast equipment, industrial machines, medical devices, and POS terminals.
The FX8C series supports a data transmission speed of up to 3.125 Gbit/s.
