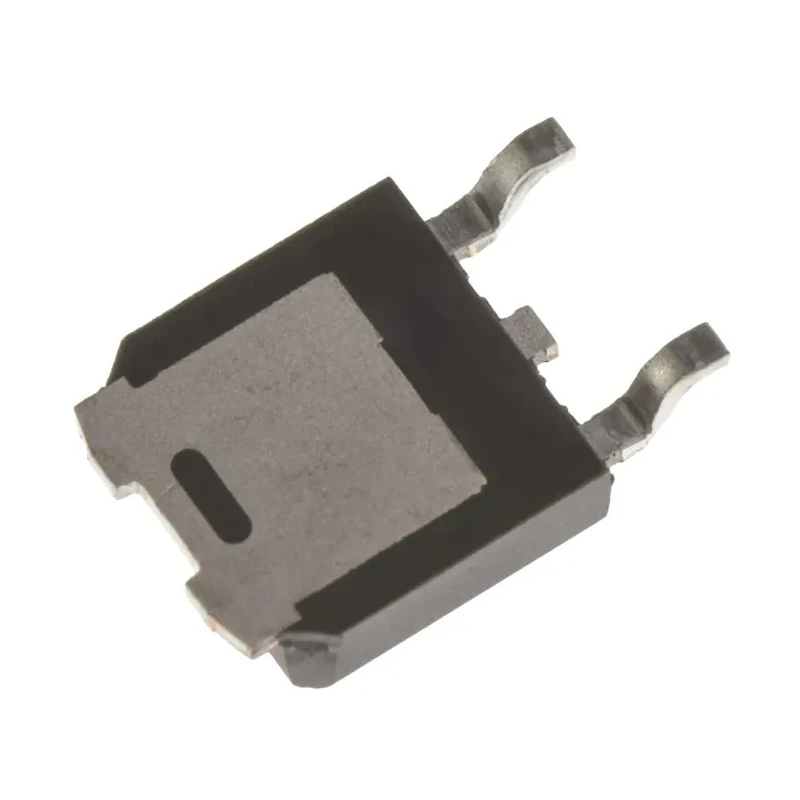

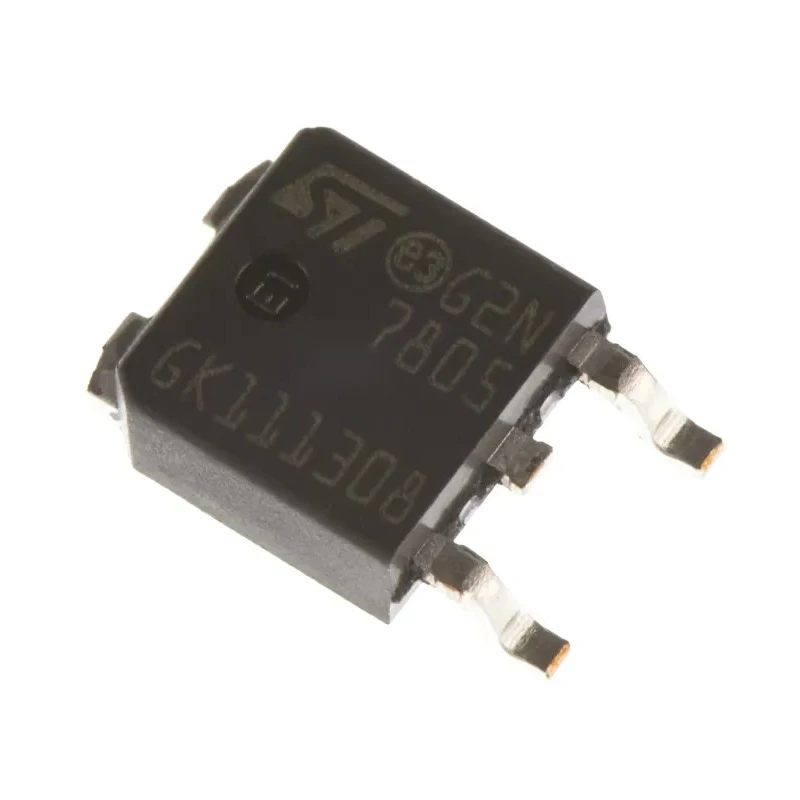

STMicroelectronics Surface Mount Positive Voltage Regulator 35V 1.5A 3-Pin L7805CDT-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators STMicroelectronics L7805CDT-TR, Voltage Regulator 35V 3-Pin RS Stock |
| Brand | STMicroelectronics |
| Height | 2.4mm |
| Length | 6.6mm |
| Model | L7805CDT-TR |
| Width | 6.2mm |
| Mount Type | Surface |
| Series | L78xx |
| Maximum Operating Temperature | 150°C |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 8mA |
| Pin Count | 3 |
Key Features
- Provides fixed output voltage with output current capability up to 1.5A.
- Incorporates thermal overload protection and output current limiting.
- Compact surface mount design measuring 6.6mm x 6.2mm x 2.4mm.
- Quiescent current of 8mA ensures energy-efficient operation.
- Suitable for power management in industrial and electronic devices.
- Operates reliably up to a maximum temperature of 150°C.
- Features internal safe operating area (SOA) protection.
Product Description
The STMicroelectronics L7805CDT-TR is a surface mount positive linear voltage regulator designed to provide a fixed output voltage with high reliability and protection features. Featuring a 3-pin package with compact dimensions (6.6mm length, 6.2mm width, 2.4mm height), it integrates thermal overload and output current limiting protections to safeguard both the regulator and the connected circuitry.
Capable of delivering a stable output current up to 1.5A, the L7805CDT-TR is ideal for use in a variety of electronic applications requiring regulated power supply solutions. Its quiescent current of 8mA allows for energy-efficient operation, making it well-suited for power management in industrial, manufacturing, HVAC, and commercial electronic systems.
The device's maximum input voltage rating of 35V and maximum operating temperature of 150°C ensure reliable performance even under demanding environmental conditions. This voltage regulator belongs to the widely used L78xx series known for robust linear regulation.
Provides fixed output voltage with up to 1.5A output current capability. Incorporates internal thermal overload and output current limiting protections. Compact surface mount form factor facilitates PCB design and integration.
Optimized quiescent current for power-efficient operation. Wide application range including industrial, laboratory, HVAC, and consumer electronics. Ensures safe operation with internal SOA protection and thermal shutdown.
This voltage regulator is a reliable component choice for engineers and designers aiming to implement efficient and safe power management circuits. It supports enhanced performance in various electrical and electronic industrial tools and instruments.
Explore more quality Voltage Regulators and power management solutions through EnvMart's comprehensive Electronics & Electricals catalog, designed to meet diverse technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This voltage regulator can deliver a stable output current of up to 1.5A.
The L7805CDT-TR has a maximum input voltage rating of 35V.
This model has compact dimensions of 6.6mm in length, 6.2mm in width, and 2.4mm in height.
The quiescent current of the L7805CDT-TR is 8mA, which allows for energy-efficient operation.
This voltage regulator operates reliably up to a maximum temperature of 150°C.
It features a surface mount design, which facilitates PCB integration.
This model is part of the widely used L78xx series of voltage regulators.
It incorporates thermal overload protection and output current limiting to safeguard the regulator and connected circuitry.
It is suitable for power management in industrial, manufacturing, HVAC, and commercial electronic systems.
This voltage regulator has a 3-pin configuration.
The L7805CDT-TR is a positive voltage regulator.
The country of origin for this model is India.
