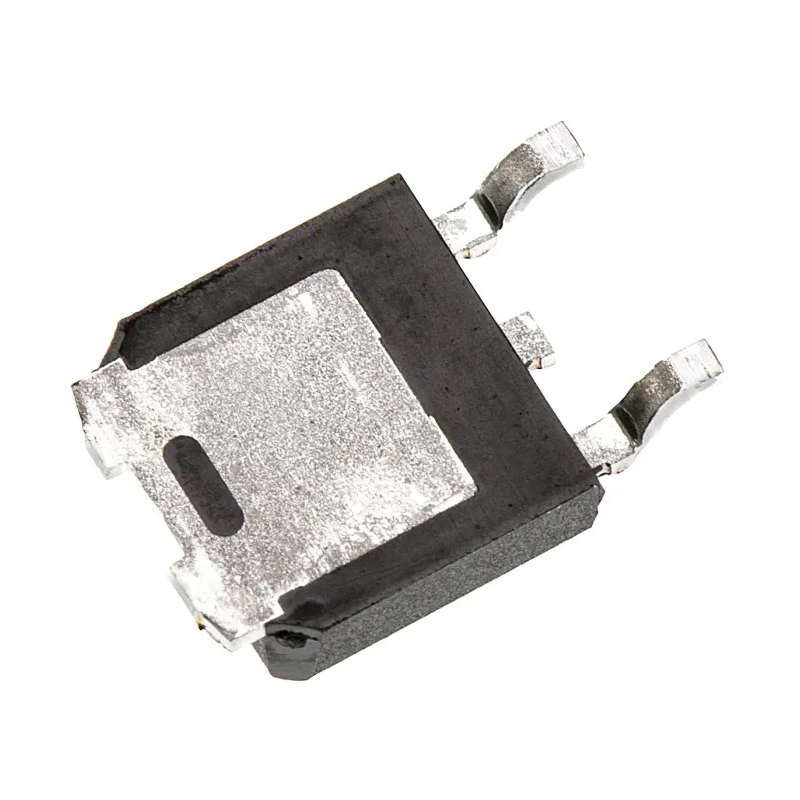

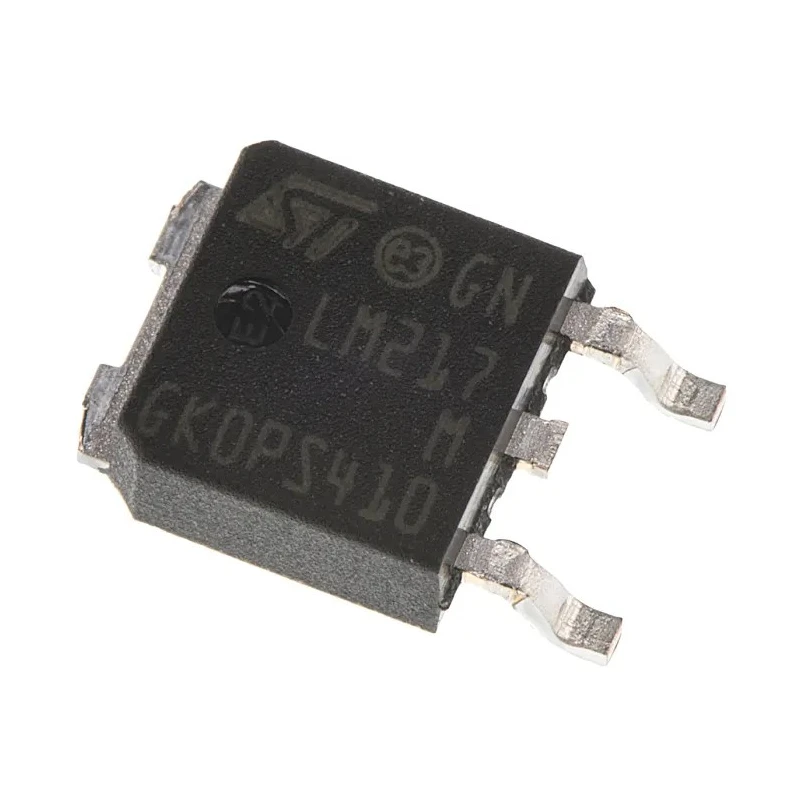

STMicroelectronics Voltage Regulator 40V 3-Pin Surface Mount LM217MDT-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators STMicroelectronics, Voltage Regulator 40V 3-Pin RS Stock No |
| Brand | STMicroelectronics |
| Height | 2.4mm |
| Length | 6.6mm |
| Model | LM217MDT-TR |
| Width | 6.2mm |
| Mount Type | Surface |
| Series | LM217 |
| Maximum Operating Temperature | 125°C |
| Polarity | Positive |
| Maximum Input Voltage | 40V |
| Output Voltage Range | 1.2 V to 37 V at 500 mA |
| Standards/Approvals | ECOPACK |
| Minimum Input Voltage | 3V |
| Pin Count | 3 |
Key Features
- Operates with input voltage ranging from 3V to a maximum of 40V.
- Adjustable output voltage range from 1.2 V to 37 V at 500 mA load.
- Highly accurate line regulation of 0.01% and load regulation of 0.1%.
- Includes thermal overload, short circuit protection and safe area compensation.
- Package dimensions approximately 6.6 mm length, 6.2 mm width, and 2.4 mm height.
- Compliant with ECOPACK standards for environmental safety.
- Suitable for use in power management IC applications requiring stable output voltage.
- Positive polarity with a 3-pin layout designed for surface mounting.
Product Description
The STMicroelectronics LM217MDT-TR is a monolithic integrated circuit used as a positive linear voltage regulator with an adjustable output voltage, tailored for surface mount technology applications. It is designed to provide precise voltage regulation over a wide input range and delivers up to 500 mA load current. The device is suitable for various industrial, electronic components, power management ICs, and PCB voltage regulation uses.
This voltage regulator supports an input voltage range of 3 V minimum up to a maximum of 40 V and allows the output voltage to be adjusted from 1.2 V to 37 V using an external resistive divider. It delivers excellent line regulation of 0.01% and load regulation of 0.1%, ensuring stable voltage output in fluctuating power environments.
The LM217MDT-TR incorporates built-in thermal overload protection, short circuit protection, and safe area compensation features, enhancing its reliability in demanding applications. The component is compliant with ECOPACK standards, making it an environmentally friendly choice for modern electronics manufacturing.
The compact 3-pin surface mount package measures approximately 6.6 mm in length, 6.2 mm in width, and 2.4 mm in height, facilitating easy PCB integration with minimal space requirements. It is rated for operation up to 125°C, suitable for industrial-grade electronic environments.
This model is ideal for developers and engineers looking for reliable, adjustable, and protected voltage regulation in embedded systems, power supplies, and related electronic equipment.
Operates with input voltage ranging from 3V to a maximum of 40V. Adjustable output voltage range from 1.2 V to 37 V at 500 mA load. Highly accurate line regulation of 0.01% and load regulation of 0.1%. Includes thermal overload, short circuit protection and safe area compensation.
Compliant with ECOPACK environmental standards. Compact 3-pin surface mount package. Maximum operating temperature of 125°C. Positive linear voltage regulator with adjustable output. Suitable for various power management integrated circuit applications.
Explore more power management ICs and Voltage Regulators at EnvMart for integrating into your advanced electronics projects and applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This voltage regulator operates with an input voltage ranging from 3V to a maximum of 40V.
The adjustable output voltage range is from 1.2V to 37V at a load current of 500 mA.
It features a highly accurate line regulation of 0.01%.
The load regulation is specified at 0.1%.
This model includes thermal overload protection, short circuit protection, and safe area compensation features.
The package dimensions are approximately 6.6 mm in length, 6.2 mm in width, and 2.4 mm in height.
The maximum operating temperature is rated at 125°C.
It is designed for surface mounting with a 3-pin layout.
This voltage regulator is compliant with ECOPACK standards for environmental safety.
This model has a positive polarity.
It is suitable for various power management IC applications requiring stable output voltage.
The LM217MDT-TR has a pin count of 3.
