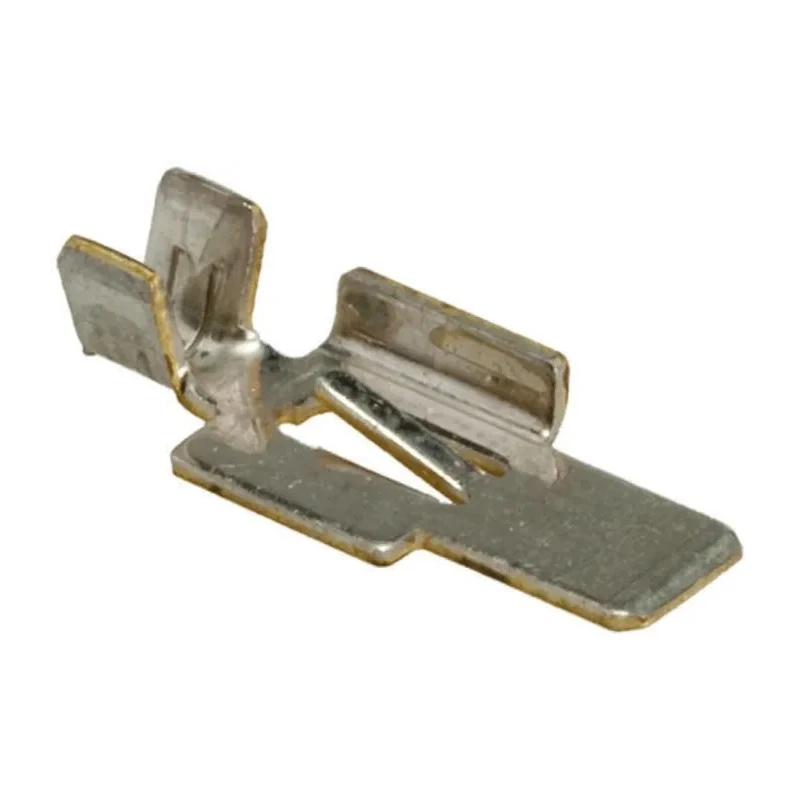

TE Connectivity Hermaphroditic Series Male Crimp Terminal 22 AWG Min, 18 AWG Max, 5A, Tin Plated Copper Alloy 2058301-2

TE Connectivity 2058301-2 Hermaphroditic Series Male Crimp Terminal is engineered to deliver robust and reliable electrical connections in electronic applications requiring board-to-board connectivity. This crimp terminal supports wire sizes from 22 AWG minimum to 18 AWG maximum, making it versatile for various cable gauges while maintaining a current rating of 5 amperes.

The contacts are constructed from high-quality copper alloy with tin plating to ensure excellent electrical conductivity and corrosion resistance. The component operates reliably across a broad temperature range, from -40°C to 105°C, making it suitable for challenging industrial environments and electronic assemblies.

This male crimp terminal is designed for mating with hermaphroditic blade and receptacle connector housings, promoting efficient and hassle-free integration. Its compact 11.9 mm length allows for low-profile PCB assemblies and SMT-compatible processing techniques.

The connector mates both horizontally and vertically and supports articulation from 90° to 180°, offering design flexibility. Rounded corners minimize shadowing in LED lighting applications. The terminal includes redundant SMT pads to enhance solder joint reliability and features a solder pad footprint compatible with Tyco Electronics SMT Poke-In LED connectors.

Applications for this product include LED lighting controls, LED strips, channel lettering, and other board-to-board electronic solutions requiring reliable crimp contact connections. The product meets environmental standards including EU ELV 2000/53/EC and EU RoHS 2011/65/EU, ensuring compliance with industry regulations.

This crimp terminal supports a current capacity of 5A for reliable electrical connections. The contact material is copper alloy with tin plating for enhanced conductivity and corrosion resistance. Suitable for use with hermaphroditic blade and receptacle connector housing.

Operates within a temperature range from -40°C to 105°C, ensuring durability in harsh environments. The compact length of 11.9mm enables low-profile PCB assembly compatibility. Meets EU ELV 2000/53/EC and EU RoHS 2011/65/EU standards for environmental compliance.

Connector mates to itself for flexible design options and is articulated from 90° to 180° positions. Ideal for applications like LED lighting controls, LED strips, and channel lettering connectors. Designed with rounded corners to minimize shadowing and compatible with SMT and reflow solder processing.

Provides redundant SMT pads and a solder pad footprint compatible with Tyco Electronics SMT Poke-In LED connectors. Explore more high-quality Crimp Contacts and connectors in the Electronics Components category at EnvMart to enhance your electronic assembly designs and production efficiency.
