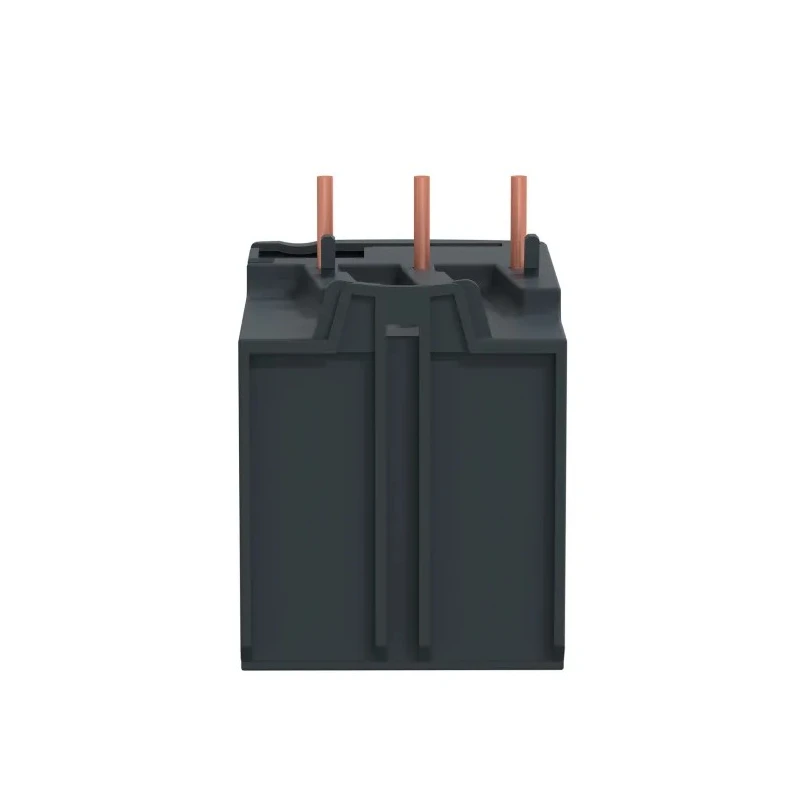

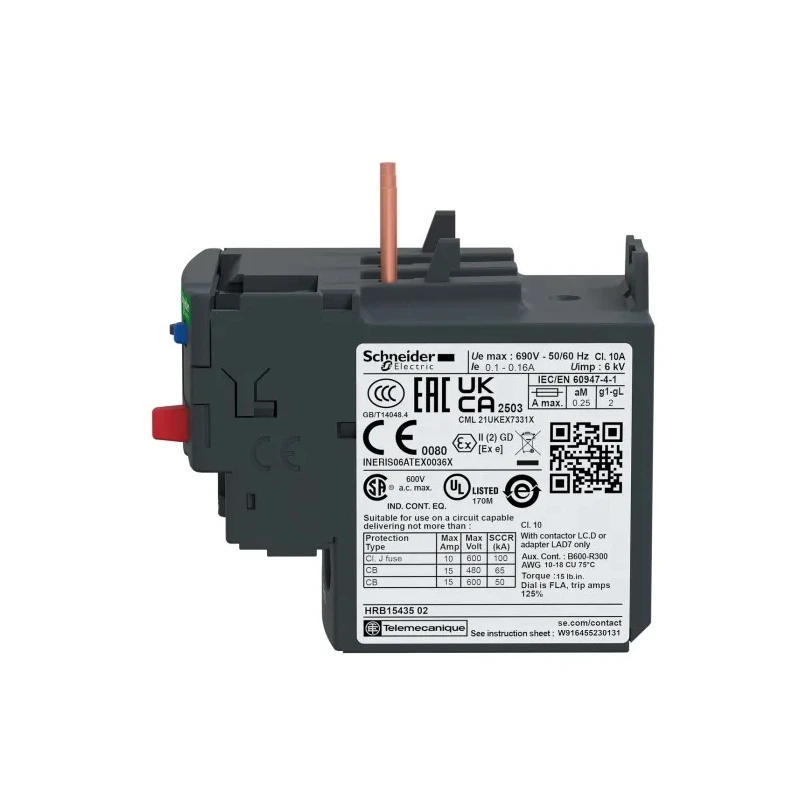

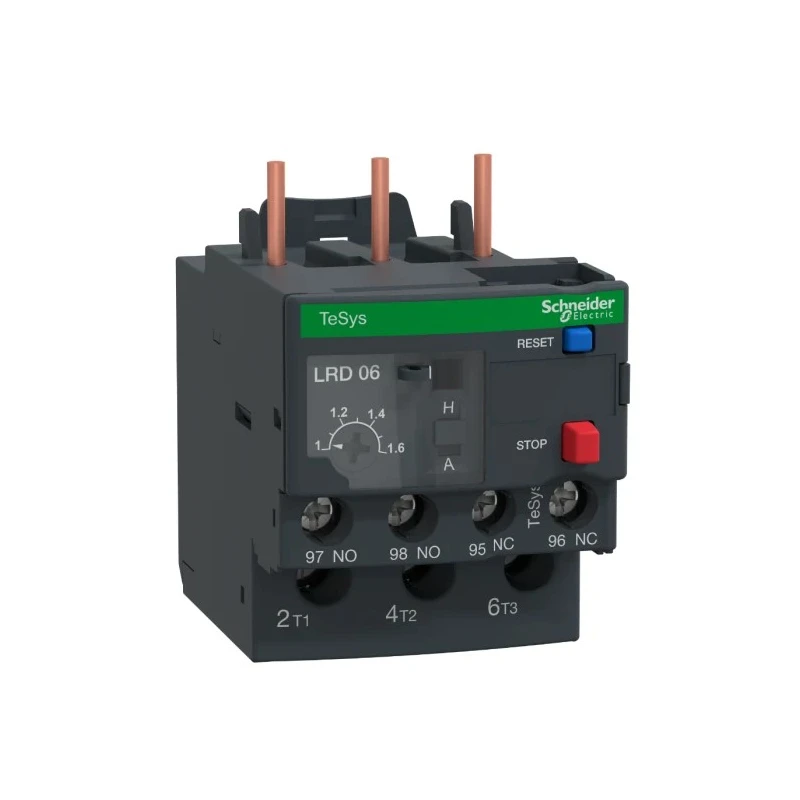

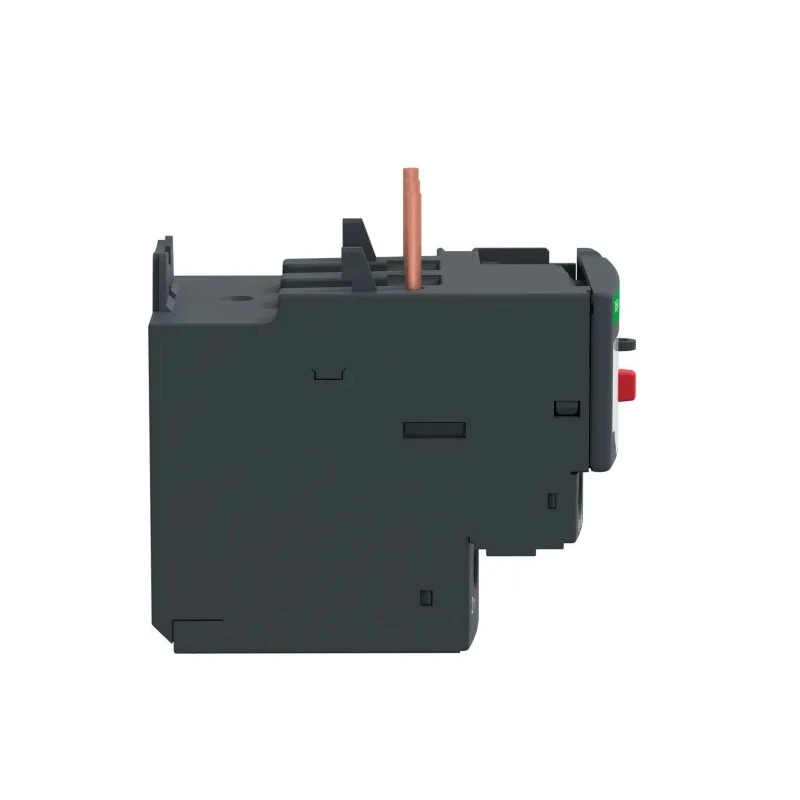

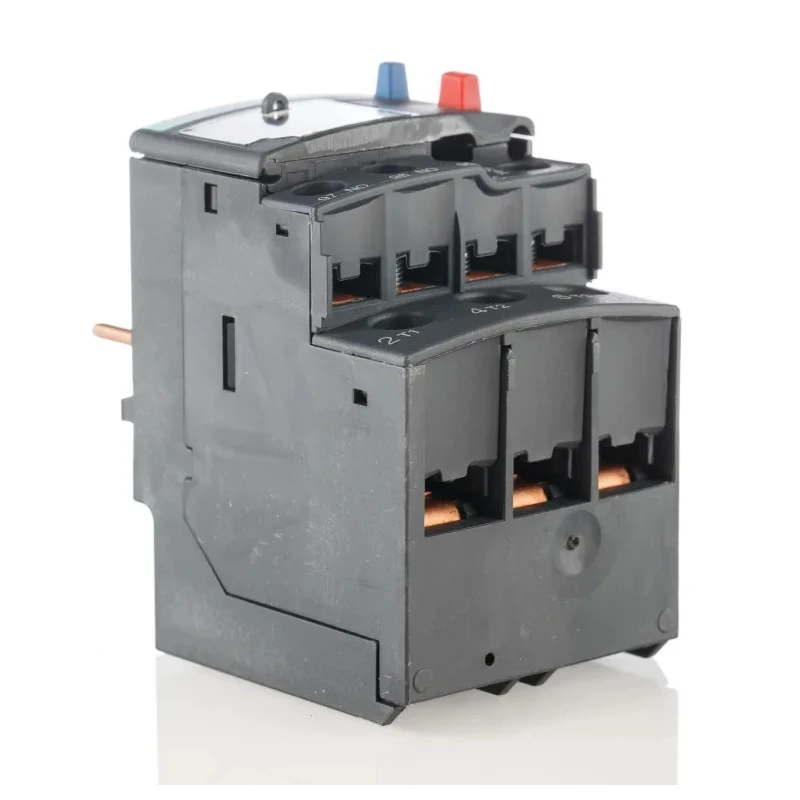

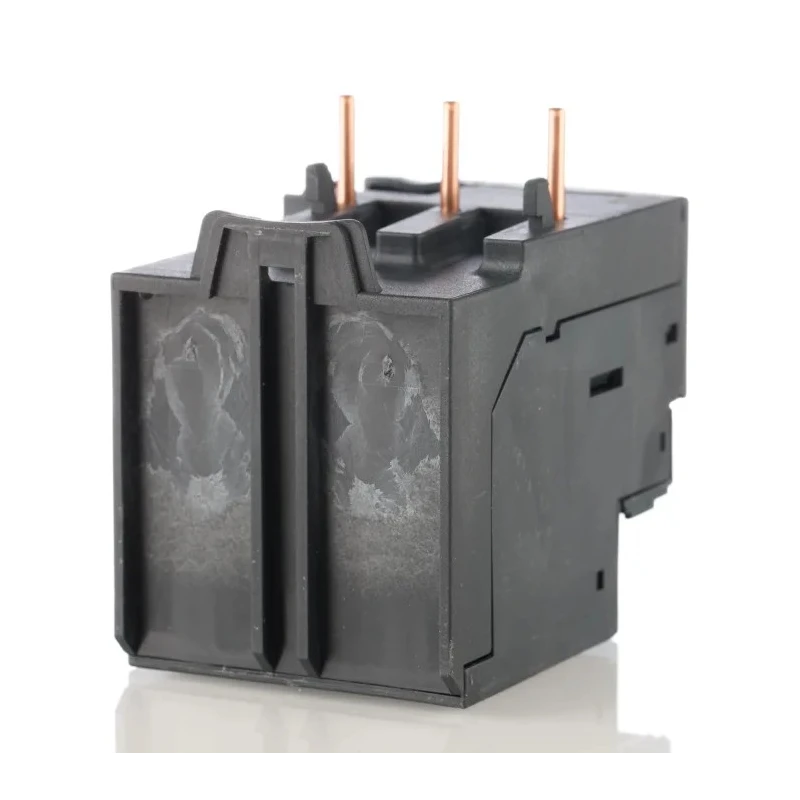

Schneider Electric Overload Relay 1 NO/1 NC, 1A, 1.6 A F.L.C, 1.6A Contact Rating, 550 W, Thermal Class 10A, 3P Pole LRD06

Schneider Electric LRD06 Overload Relay is a high-quality thermal overload relay designed for efficient protection of motors in industrial and automation environments. Featuring a 3-pole configuration with 1 NO and 1 NC contacts, it supports a full load current (FLC) range from 1 to 1.6 A and a contact rating of 1.6 A at 550 W power. The relay integrates both automatic and manual reset methods, allowing adaptability for various operational needs.

This device operates reliably within a temperature range of -20°C to 60°C and features screw clamp terminals for robust and straightforward wiring. Its compact dimensions of 66 mm height, 45 mm width, and 70 mm depth enable compatibility with diverse control panels and systems. The thermal overload class 10A ensures quick response to overload conditions, providing superior motor protection.

The LRD06 conforms to numerous international safety and quality standards including UL 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, EN/IEC 60947-5-1, and DNV-GL approvals, making it suitable for applications requiring verified compliance. Rated for 690 V AC supply voltage and IP20 ingress protection, this relay is engineered for demanding industrial automation and control systems.

Applications include motor control monitoring, thermal protection for AC and DC motors, and use within automation and industrial manufacturing processes. The dual auxiliary contacts (1 NO/1 NC) allow simultaneous monitoring and protective circuit interruption, enhancing operational safety and efficiency.

The Schneider Electric LRD06 provides a reliable and durable solution for motor overload protection, critical in sectors such as manufacturing, HVAC, water treatment, and industrial automation.

Features 3-pole configuration suitable for industrial motor control. Equipped with automatic and manual reset methods for operational flexibility. Operating temperature range from -20°C to 60°C for varied environments. Screw terminal connections ensure secure and easy installation.

Complies with multiple international standards including UL, CSA, and IEC approvals. Compact size with 66 mm height, 45 mm width, and 70 mm depth for seamless integration. IP20 rated for protection against solid foreign objects.

Designed to operate at supply voltage up to 690 V AC for broad application compatibility. Explore more Schneider Electric products and Overload Relays for robust electrical and industrial automation solutions on EnvMart.
