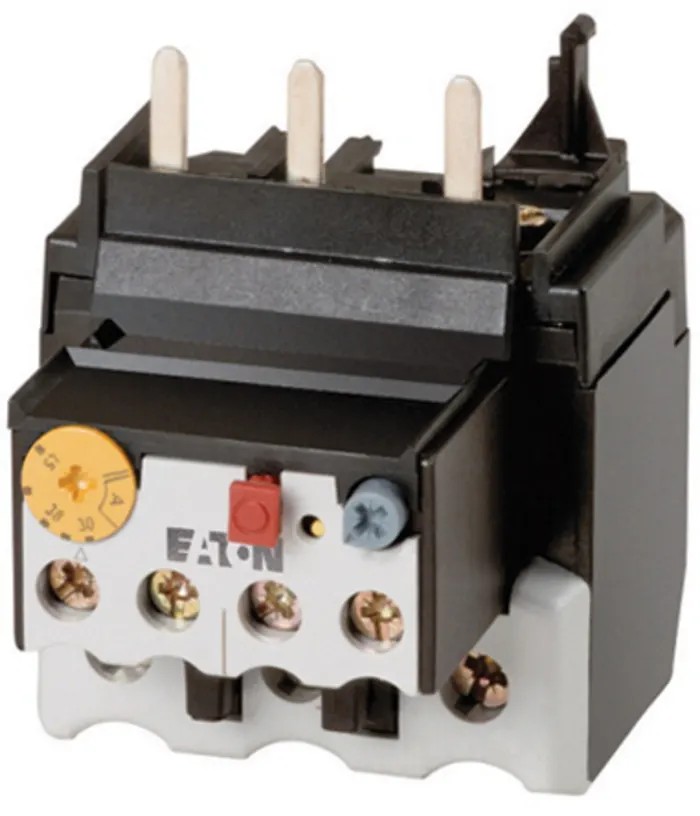

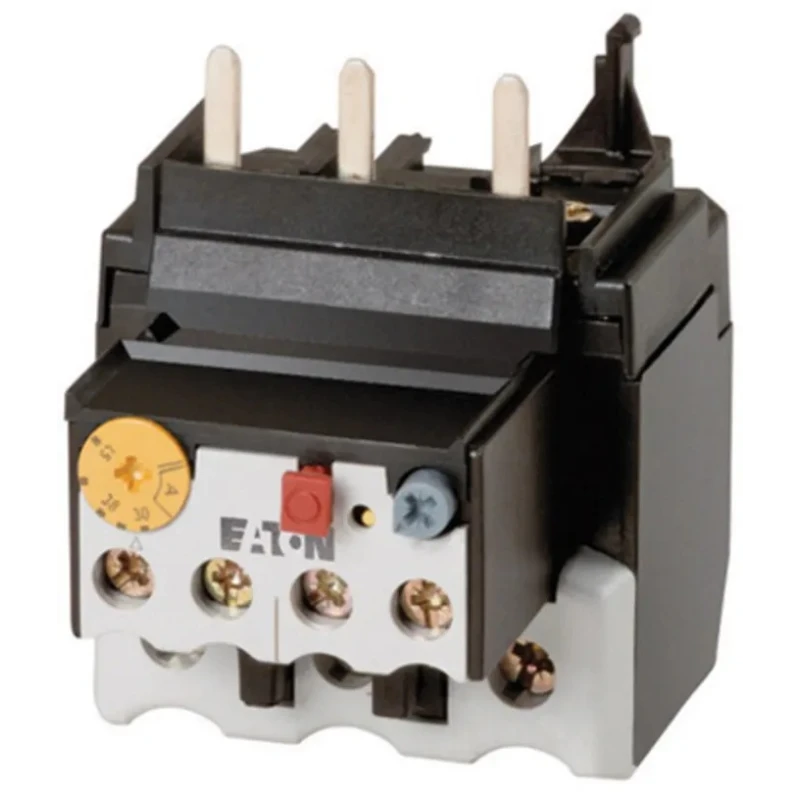

Eaton ZB65 Overload Relay 1 NO/1 NC, 16A, 24 A F.L.C, 24A Contact Rating, 7.5 W, 500V AC ZB65

The Eaton ZB65 Overload Relay model ZB65 is a professional-grade industrial electrical component designed specifically for motor protection applications. It supports 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts with a full load current (FLC) motor rating ranging from 16 to 24 amperes, and a relay contact current capacity of 24 amperes. The device has a power rating of 7.5 W and operates at a control voltage of 500V AC with contact voltage rating up to 690V AC, making it suitable for a wide range of electrical control circuits.

This relay is engineered for direct mounting and fits seamlessly with DILM contactors from DILM40 up to DILM65. The adjustable current range from 16 to 24 A allows precise motor overload protection based on specific operational requirements. With both automatic and manual reset methods, users have control over resetting conditions post-tripping events.

Constructed with screw terminal types, the relay ensures secure and reliable electrical connections in demanding industrial environments. The compact design with dimensions 60 mm width, 172 mm length, and 132 mm depth facilitates space-efficient installation. Operating temperature ranges from -5°C to +55°C, accommodating common industrial ambient conditions.

The product holds certifications and standards including IEC/EN 60947, IEC/EN 60947-4-1, UL 508, and CE marking, among others, underscoring its compliance with global safety and performance benchmarks. Featuring IP00 ingress protection rating, the relay is best suited for installations within electrical enclosures compliant with environmental controls.

Additional features include two auxiliary contacts enhancing control versatility and reliable mounting configurations. This relay is a trusted choice across diverse industrial sectors including manufacturing, automation, HVAC systems, and water treatment plants requiring dependable motor overload protection.

Suitable for use with DILM40 to DILM65 contactors. Adjustable current range from 16 to 24 amperes. Automatic and manual reset methods included. Compliant with IEC, UL, CSA, and CE standards. Compact dimensions promote easy mounting.

Operates under temperature range -5°C to 55°C. Screw terminal type for strong connectivity. Accepts control voltage of 500V AC and contact voltage of 690V AC. Explore other Eaton premium electrical protection components and accessories in the EnvMart catalog for your industrial automation and control gear needs.
