HARTING RJ Industrial Series RJ45 Connector Male Cable Cat5 Shielded Straight 1 Port 4 Way 09451511100
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Length | 13.97mm |
| Depth | 52.6mm |
| IP Rating | IP20 |
| Number Of Ways | 4 |
| Mount Type | Cable |
| Series | RJ Industrial |
| Number Of Ports | 1 |
| Termination Type | IDC |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | Ethernet link installations Ideal for connecting field controllers to switches in control cabinets Used for industrial sensor and actuator network cabling Can be used for PROFINET copper c |
| Shield Type | Shielded |
| Contact Plating | Nickel |
| Connector Gender | Male |
| LAN Category | Cat5 |
| Ethernet Connector Type | RJ45 |
| Harting Female RJ45 Connector, Cable MountBrand | HARTING |
Key Features
- Provides shielded, straight cable-mounted RJ45 plug with 4 contacts for Cat5 data transmission.
- Supports industrial automation Ethernet link installations with RJ Industrial series robustness.
- Features 360° shielding to minimize electromagnetic interference ensuring signal integrity.
- IDC termination allows fast and reliable field assembly on site.
- Rated for wide temperature use from -40°C to 70°C for harsh industrial environments.
- Durable nickel-plated contacts and polyamide housing with UL94 V-0 flammability rating.
- Supports Cat5 performance up to 100 MHz for 10/100 Mbit/s network speeds.
- Constructed to withstand 750+ mating cycles for extended service life.
Product Description
HARTING 09451511100 RJ Industrial Series RJ45 Connector Male Cable Cat5 Shielded Straight 1 Port 4 Way is a robust industrial-grade Ethernet connector designed for factory automation and control system network cabling requiring reliable and compact cable connections.
This connector provides a shielded, straight male RJ45 interface terminated with insulation displacement connection (IDC) suitable for Cat5 data transmission up to 100 MHz, enabling stable 10 Mbit/s and 100 Mbit/s network communications.
The RJ Industrial series connector features 360° shielding that reduces electromagnetic interference (EMI), nickel-plated contacts to enhance durability, and a polyamide housing rated UL94 V-0 for flame retardance. Operating temperature ranges from -40°C to 70°C, ensuring performance in harsh industrial environments.
It is constructed to endure over 750 mating cycles, provides IP20 protection in the mated state, and is well-suited for industrial automation Ethernet link installations, including PROFINET copper connections. The housing withstands vibration frequencies of 10 - 500 Hz at 10 g and up to 95% non-condensing humidity conditions.
This connector accepts stranded conductors sized 0.22 - 0.32 mm² (AWG24 - 22) and solid conductors sized 0.26 - 0.32 mm² (AWG23 - 22), facilitating versatile field wiring. Its cable mount configuration includes a hood with shielding, splicing element, cable gland, and detailed assembly instructions for on-site termination efficiency.
Applications include connecting field controllers to switches within control cabinets, industrial sensor and actuator network cabling, and factory automation Ethernet links requiring high reliability and signal integrity.
Provides shielded, straight cable-mounted RJ45 plug with 4 contacts for Cat5 data transmission. Supports industrial automation Ethernet link installations with RJ Industrial series robustness. Features 360° shielding to minimize electromagnetic interference ensuring signal integrity.
IDC termination allows fast and reliable field assembly on site. Rated for wide temperature use from -40°C to 70°C for harsh industrial environments. Durable nickel-plated contacts and polyamide housing with UL94 V-0 flammability rating.
Supports Cat5 performance up to 100 MHz for 10/100 Mbit/s network speeds. Constructed to withstand 750+ mating cycles for extended service life. IP20 rating provides basic contact protection suitable for industrial automation systems.

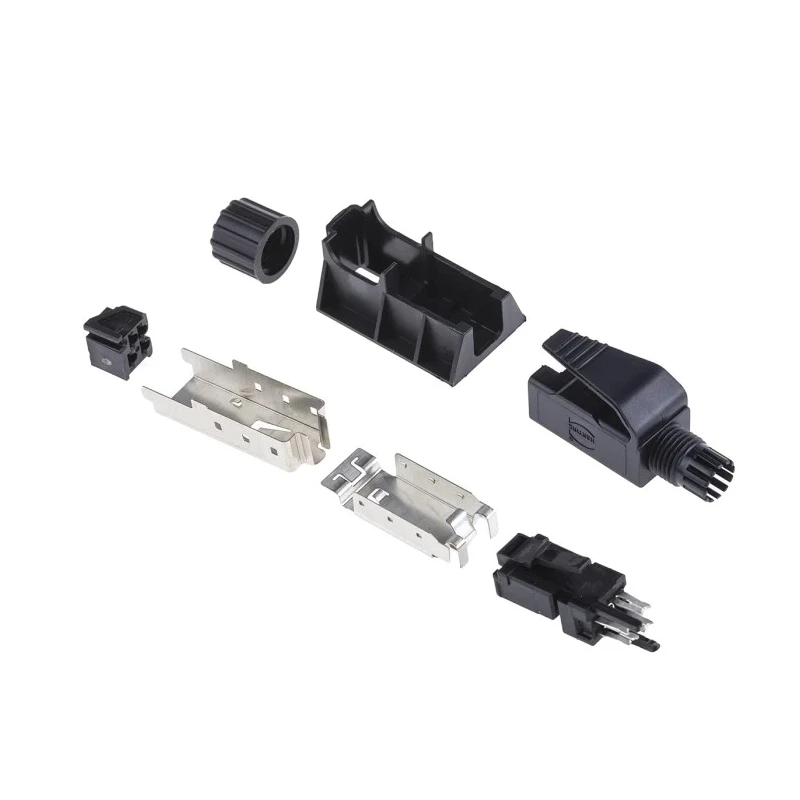

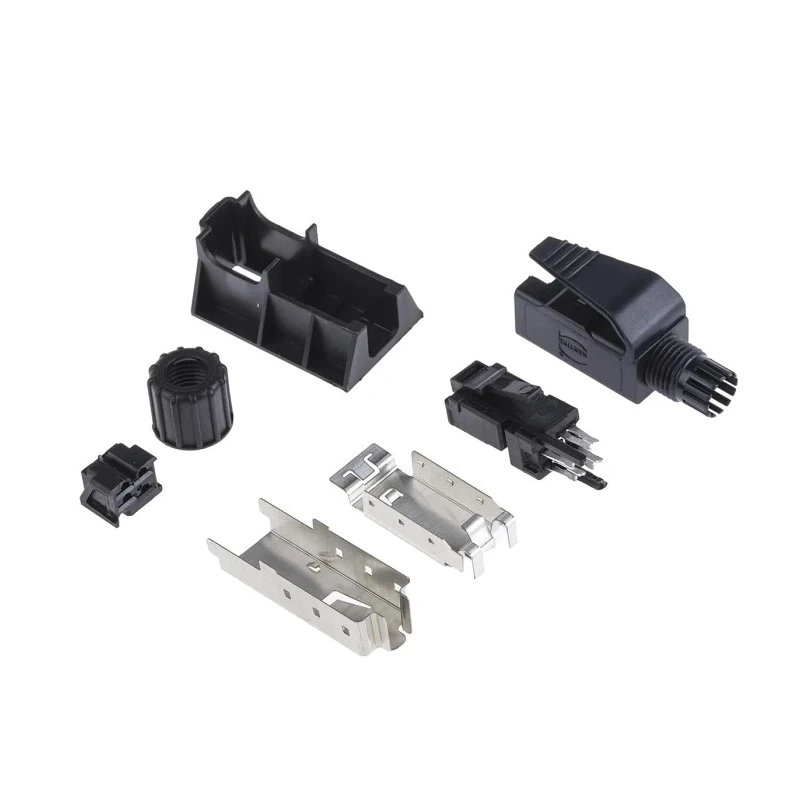

Package includes hood with shielding, splicing element, cable gland, and assembly instructions. Explore more industrial Ethernet Connectors and HARTING products in the Electronics Components category at EnvMart for reliable network and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this RJ45 connector is 70°C.
This connector uses insulation displacement connection (IDC) for termination.
This model has 1 port.
The IP rating of this connector is IP20, providing basic contact protection.
The orientation of this connector is straight.
The length of this connector is 13.97 mm and the depth is 52.6 mm.
This connector accepts stranded conductors sized 0.22 - 0.32 mm² (AWG24 - 22) and solid conductors sized 0.26 - 0.32 mm² (AWG23 - 22).
This RJ45 connector supports Cat5 performance up to 100 MHz.
This connector is suitable for connecting field controllers to switches, industrial sensor and actuator network cabling, and factory automation Ethernet links.
The minimum operating temperature for this connector is -40°C.
This connector features nickel-plated contacts and a polyamide housing with a UL94 V-0 flammability rating.
This connector is constructed to withstand over 750 mating cycles.
