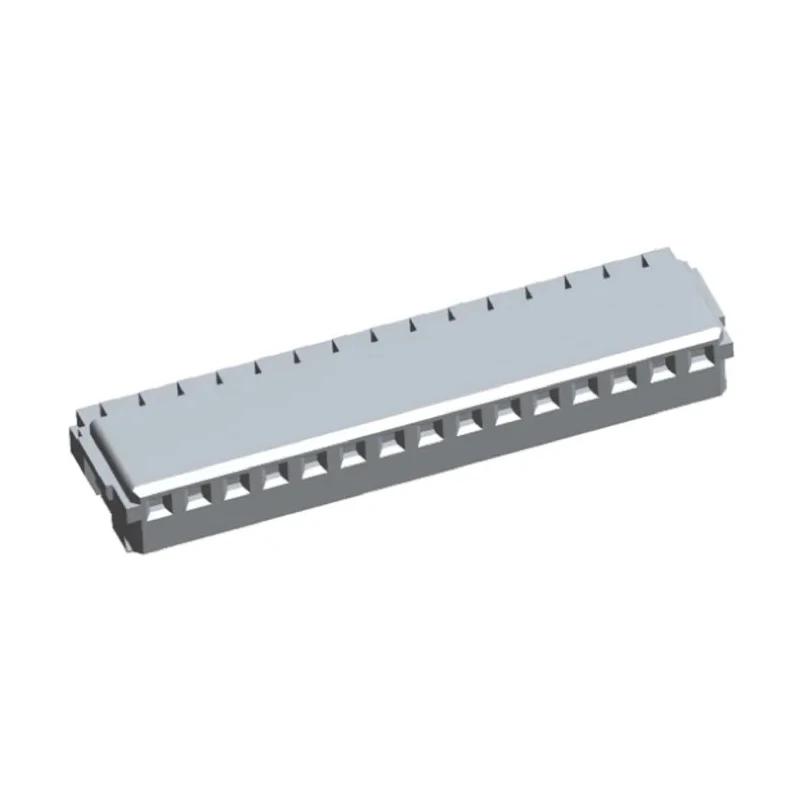

TE Connectivity 15-Way IDC Connector Female Cable Mount 1.5mm Pitch AMP Mini CT Series 1-353293-5

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity 15-Way IDC Connector Female Cable Mount 1.5mm Pitch AMP Mini CT Series 1-353293-5

Name: TE Connectivity 15-Way IDC Connector Female Cable Mount 1.5mm Pitch AMP Mini CT Series 1-353293-5
Brand: TE Connectivity
SKU: 126416



Category IDC Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Voltage	50, 50V ac
Brand	TE Connectivity
Orientation	Straight
Current	2A
Mount Type	Cable
Housing Material	Nylon
Contact Material	Phosphor Bronze
Series	AMP Mini CT
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-30°C
Number of Rows	1
Pitch	1.5mm
Contact Plating	Tin over Nickel
Number of Contacts	15
Contact Gender	Female
Connector Gender	Female

Key Features

This IDC connector features 15 female contacts suitable for cable mounting.
It supports up to 2A current with a voltage rating of 50V AC.
Constructed with phosphor bronze contacts plated with tin over nickel for durability.
The housing is made of UL 94V-0 nylon for high flame retardance.
Operating temperature ranges from -30°C to 105°C ensuring stable performance.
The connector series is AMP Mini CT designed for compact wire-to-board and wire-to-wire applications.
It accepts wire sizes from 22 to 28 AWG, making it versatile for various cables.
The connector is oriented straight with IDC termination type for easy mass termination processes.

Product Description

TE Connectivity 1-353293-5 is a 15-Way IDC Connector Female designed for cable mounting applications, part of the AMP Mini CT series. It features a 1.5mm pitch in a single row configuration, making it suitable for compact interconnection needs in electronics and electrical assemblies.

This connector houses 15 female contacts made of phosphor bronze with tin over nickel plating to ensure reliable conductivity and corrosion resistance. The housing is crafted from UL 94V-0 rated nylon, providing excellent flame retardance and mechanical durability suitable for industrial and commercial environments.

The connector supports current up to 2A and operates safely at voltages of 50V AC. Its rated operating temperature spans from -30°C to 105°C, enabling stable performance across a wide range of environmental conditions. The straight orientation and IDC (Insulation Displacement Contact) termination facilitate fast and efficient mass termination processes on cables ranging from 22 to 28 AWG.

The AMP Mini CT interface system is designed for wire-to-board and wire-to-wire interconnections, offering proven wire harness capabilities. These connectors are widely used in industrial machinery, telecommunications equipment, consumer electronics, and other applications requiring compact and reliable electrical connections.

This connector provides easy mass termination with IDC contacts pre-loaded in the housing. It is commonly mated with compatible PCB headers to form strong electrical connections. The nylon housing ensures resilience to mechanical stress and environmental factors.

Phosphor bronze contact material secures long-term electrical performance and oxidation resistance. Its design suits automated assembly lines, enhancing production efficiency.

For engineers and system integrators, this TE Connectivity 1-353293-5 connector is a dependable choice for robust wire harness solutions. Browse the extensive catalog for compatible headers and accessories to complete your interconnection system projects on EnvMart.
