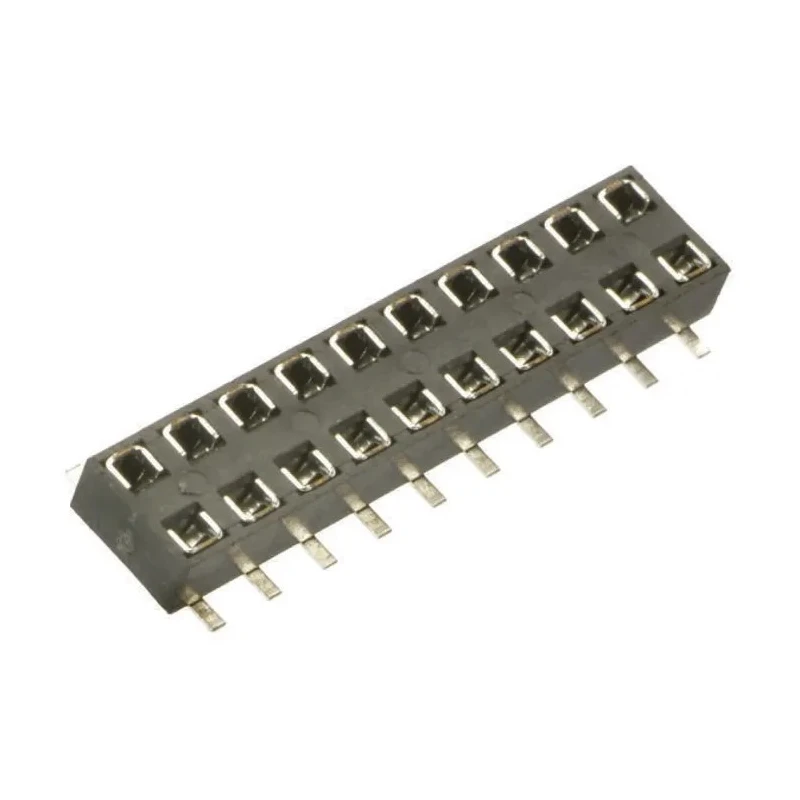

HARWIN M22 Series Straight Surface PCB Socket 16-Contact 2 Row 2 mm Pitch Solder M22-6360842

The HARWIN M22-6360842 PCB socket is a straight surface mount connector offering 16 female contacts arranged in 2 rows at a 2 mm pitch, ideal for applications requiring compact, reliable board-to-board connections.

Its nylon housing meets UL94V-0 high temperature standards, enabling resilience to reflow soldering processes. The bronze contacts plated with gold provide superior electrical performance and corrosion resistance, supporting a current rating of 1.5A per contact and voltage insulation up to 1kV.

The socket’s design accommodates PCB density needs and height restrictions, making it suitable for consumer electronics, communications, industrial monitoring, drives and controls, and embedded PC motherboards. It performs reliably within an operational temperature range of -40°C to 105°C and withstands up to 300 mating operations for durability over extended use.

With its compact and robust construction, the HARWIN M22-6360842 PCB socket offers a high-quality solution for demanding electronic component applications in industrial, laboratory, and manufacturing environments.

The compact 2 mm pitch design supports high PCB density and height restrictions. Constructed with durable nylon housing rated UL94V-0 for high temperature resistance. Gold-plated bronze female contacts assure excellent conductivity and corrosion resistance.

Supports 1.5A current rating per contact with voltage insulation of 1kV. Designed for surface mount board-to-board applications across diverse electronic sectors. Operating temperature ranging from -40°C to 105°C facilitates versatile deployment.

Rated for up to 300 mating cycles ensuring connector reliability.
