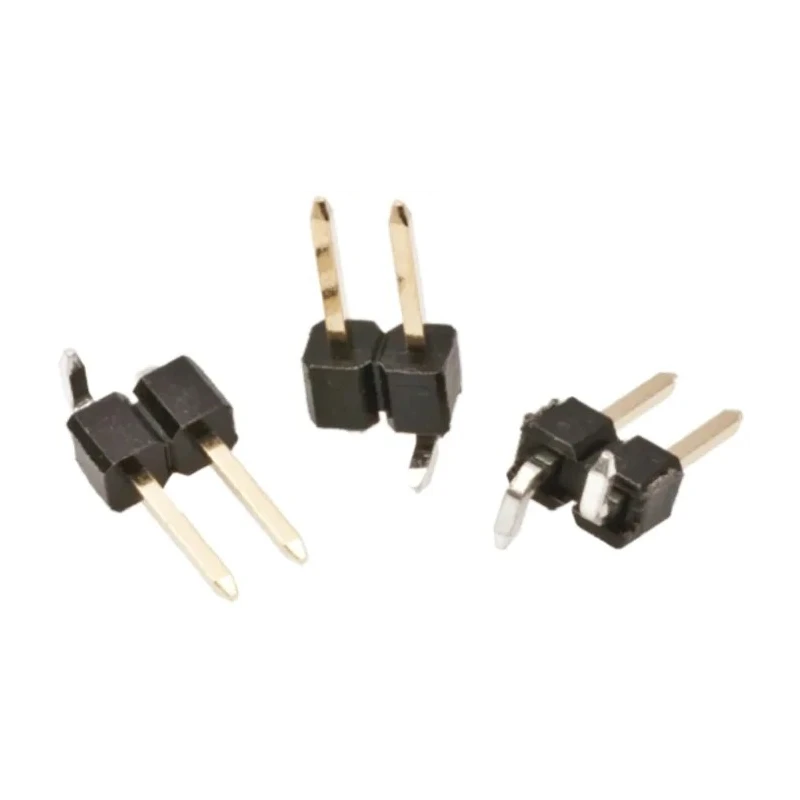

HARWIN M20 Series Straight Surface Pin Header 8 Contacts 2.54 mm Pitch 1 Row Unshrouded M20-8770842
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | HARWIN |
| Orientation | Straight |
| Current | 3A |
| Model | M20-8770842 |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | M20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Mating Pin Length | 5.8mm |
Key Features
- Features unshrouded single row configuration for flexible PCB connectivity.
- Constructed with brass contacts plated in gold for superior conductivity and durability.
- Housing made of high-temperature resistant nylon ensuring reliable soldering processes.
- Supports a maximum operating temperature of 105°C and a minimum of -40°C.
- Compatible with board-to-board and wire-to-board connector systems.
- Mating pin length of 5.8 mm optimized for secure and reliable connection.
- Rated for a current of 3 amps suitable for standard electronic applications.
- Manufactured in Taiwan, Province Of China, complying with required industrial standards.
Product Description
HARWIN M20-8770842 is a precision-engineered straight surface pin header featuring 8 male contacts arranged in a single unshrouded row with a 2.54 mm pitch. Designed to meet the connectivity needs of modern electronic assemblies, it supports a current rating of 3 amps, making it suitable for a variety of industrial and commercial electronics applications.
The connector housing is made from high-temperature nylon thermoplastic, capable of withstanding reflow soldering processes for secure and durable PCB mounting. The gold-plated brass contacts ensure excellent electrical conductivity and corrosion resistance, enhancing the longevity and performance of the connections.
This pin header is unshrouded, allowing for versatile mating options with compatible M20 series sockets and jumpers. Its surface mount design facilitates easy placement on printed circuit boards, ideal for embedded PCs, consumer electronics, communication equipment, and industrial control systems.
Operating reliably between -40°C and 105°C, this connector is robust enough to withstand various environmental conditions encountered in manufacturing and field use. The 5.8 mm mating pin length offers secure connector engagement, enhancing signal integrity and mechanical stability.
Unshrouded single row configuration provides design flexibility. Gold-plated brass contacts for reliable conductivity. Thermoplastic housing suitable for reflow soldering. Surface mount type for easy PCB assembly. Wide operating temperature range from -40°C to 105°C.
Rated for 3 A current, suitable for diverse electronic applications. Mating pin length of 5.8 mm provides secure connections. Compatible with board-to-board and wire-to-board systems. Manufactured in Taiwan ensuring quality and compliance.
This pin header is widely used in electronic manufacturing across consumer electronics, industrial monitoring devices, communications equipment, and embedded computing platforms. It is a dependable choice for engineers requiring consistent and efficient board-level connectivity solutions.
Discover a comprehensive range of high-quality electronic components including PCB Headers and connectors at EnvMart for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HARWIN M20-8770842 pin header has a maximum current rating of 3 amps, making it suitable for standard electronic applications.
This model features a pitch size of 2.54 mm, which is standard for many PCB connections.
The contacts are made of brass and are gold-plated for superior conductivity, while the housing is constructed from high-temperature resistant nylon.
It operates reliably between -40°C and 105°C, accommodating various environmental conditions.
This pin header has 8 male contacts arranged in a single row configuration.
Yes, it is compatible with both board-to-board and wire-to-board connector systems, providing flexible connectivity options.
The mating pin length is 5.8 mm, which is optimized for secure and reliable connections.
It uses solder termination, which is common for mounting on printed circuit boards.
The orientation of this pin header is straight, allowing for direct connections on PCBs.
It is manufactured in Taiwan, ensuring compliance with required industrial standards.
The housing is made from high-temperature nylon thermoplastic, suitable for reflow soldering processes.
It is widely used in consumer electronics, industrial monitoring devices, communications equipment, and embedded computing platforms.
