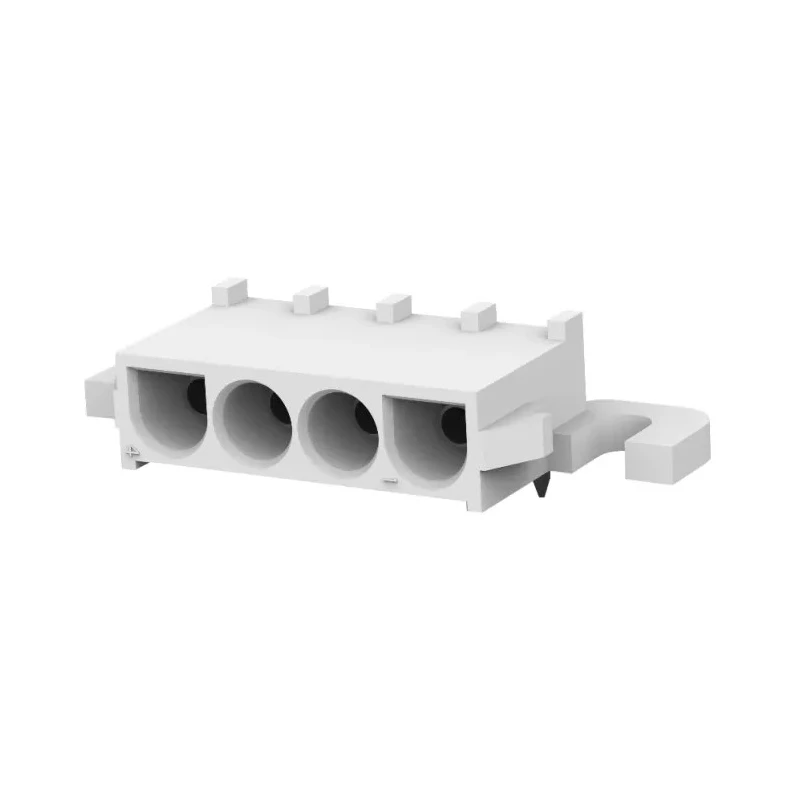

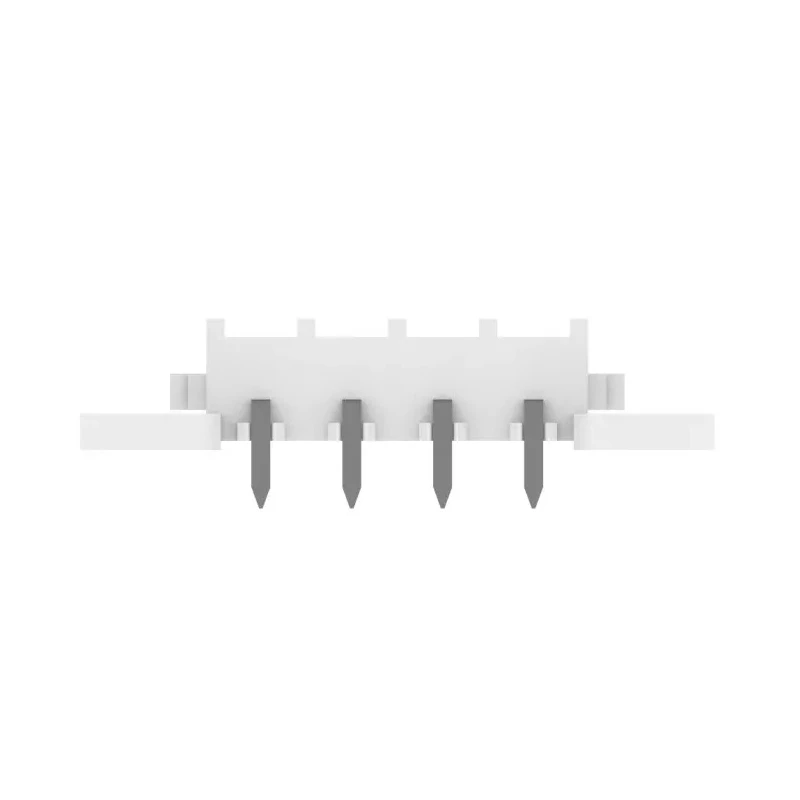

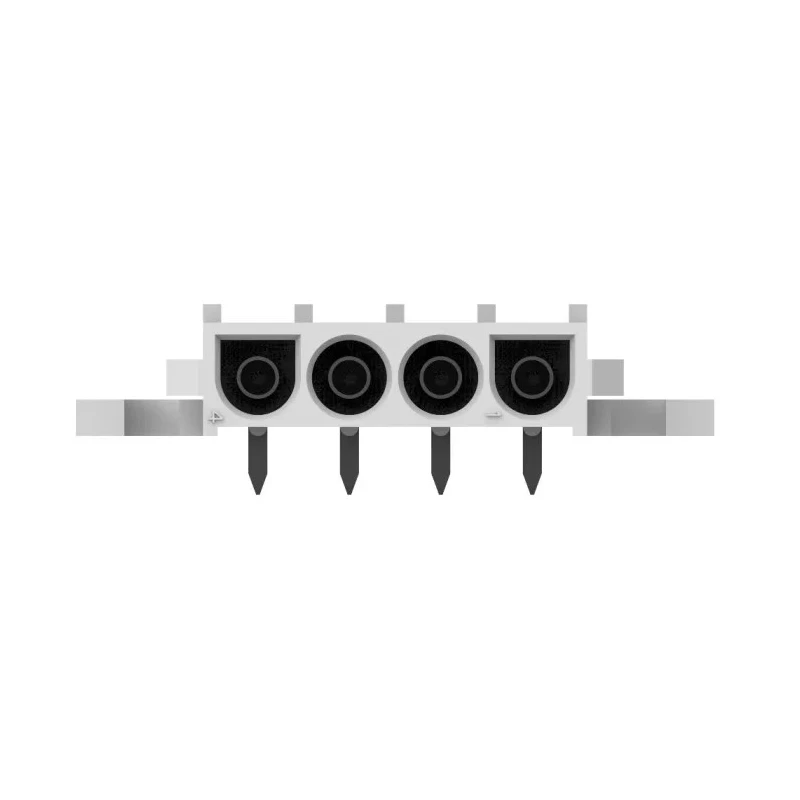

TE Connectivity Universal MATE-N-LOK Series Right Angle Through Hole PCB Socket 4-Contact 1 Row 6.35 mm Pitch 19A 643230-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 19A |
| Model | 643230-1 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | Universal MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Power |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 6.35mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector System | Wire-to-Board |
Key Features
- Rated current of 19A suitable for high power PCB connections.
- Nylon housing ensures durability and electrical insulation.
- Right angle orientation facilitates efficient PCB layout.
- Termination type is solder, ideal for secure connections.
- Operating temperature range from -55°C to 85°C for versatile environmental use.
- Contact material of bronze with tin plating for reliable conductivity and corrosion resistance.
- Wire-to-board connector system for easy integration in assemblies.
Product Description
TE Connectivity 643230-1 Universal MATE-N-LOK Series right angle through hole PCB socket is a robust connector designed for power applications requiring reliable wire-to-board connections. Featuring 4 contacts arranged in a single row with a 6.35 mm pitch, this PCB socket provides a high current rating of 19A at 600V, ensuring efficient power transmission in demanding electronic systems.
The connector's nylon housing provides excellent durability and electrical insulation, while the right angle orientation facilitates optimal PCB design by minimizing space usage. The solder termination method offers secure and reliable mechanical and electrical connections to the PCB.
Designed to operate in harsh environments, this socket supports a wide temperature range from -55°C to 85°C, making it suitable for industrial, electronic manufacturing, telecommunications, and power distribution applications. The contacts are made of bronze and plated with tin to provide excellent conductivity and resist corrosion for long-term performance.
This product is part of the Universal MATE-N-LOK series, compatible with both Universal MATE-N-LOK and MATE-N-LOK II plug housings, allowing versatile and flexible design options. Rated current of 19A for high power applications.
Nylon housing material for durability and insulation. Right angle through hole mount for efficient PCB layout. Solder termination ensures strong connections. Wide operating temperature range of -55°C to 85°C. Bronze contacts with tin plating for corrosion resistance.
Wire-to-board connector system compatible with universal series plug housings.
This PCB socket is ideal for industrial electronics, laboratory instruments, manufacturing equipment, and various other applications requiring reliable power connectors. For more selections in electronic connectors and advanced PCB components, browse EnvMart's Electronics & Electricals categories.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket has a rated current of 19A, making it suitable for high power applications.
The voltage rating for this model is 600V, ensuring it can handle significant electrical loads.
The housing is made of nylon for durability and electrical insulation, while the contacts are bronze with tin plating for reliable conductivity and corrosion resistance.
It operates effectively within a temperature range of -55°C to 85°C, making it suitable for various environmental conditions.
This socket uses a solder termination type, ensuring secure mechanical and electrical connections to the PCB.
The contacts are arranged with a pitch of 6.35 mm, allowing for efficient spacing on the PCB.
This model features 4 contacts arranged in a single row, designed for effective power transmission.
It utilizes a wire-to-board connector system, facilitating easy integration in electronic assemblies.
The socket is designed with a right angle orientation, which helps optimize PCB layout and space usage.
Yes, it is compatible with both Universal MATE-N-LOK and MATE-N-LOK II plug housings, providing flexible design options.
This model is ideal for industrial electronics, laboratory instruments, manufacturing equipment, and power distribution applications.
The country of origin for this product is India.
