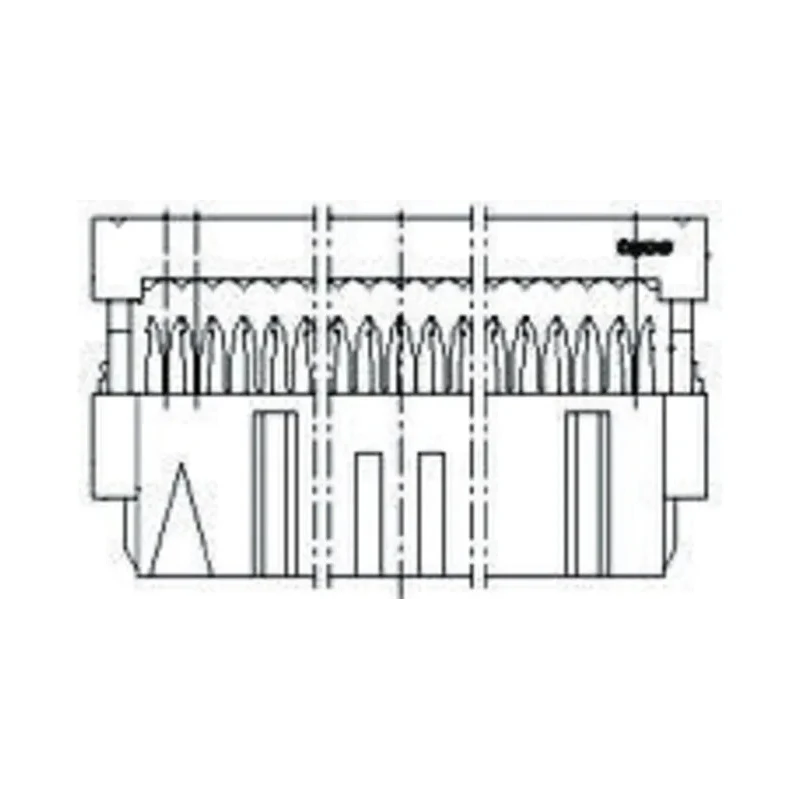

TE Connectivity 20-Way IDC Connector Female for Cable, 2 Row 2-215919-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | AMP-LATCH |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| TE Connectivity 20-Way IDC Connector Female for Cable, 2 RowBrand | TE Connectivity |
| 3M 20-Way IDC Connector Female for Cable, 2 RowBrand | 3M |
Key Features
- The connector features 20 contacts arranged in 2 rows suitable for cable mounting.
- It supports a current rating of 1 amp at 250 volts for reliable electrical performance.
- The contacts are gold plated over nickel, with phosphor bronze material ensuring durability and conductivity.
- The housing is made from polyethylene terephthalate providing insulation and structural support.
- Designed with a right angle orientation and shrouded connector gender for secure cable connections.
- Operates reliably across a temperature range of -65°C to 105°C, suitable for varied industrial environments.
- Termination type is IDC (Insulation Displacement Contact) utilizing AMP-LATCH series ensuring secure connection to ribbon cables.
- The connector accommodates female contacts that mate with standard posts soldered into PCBs for efficient assembly.
Product Description
TE Connectivity 2-215919-0 is a 20-Way IDC Connector Female designed specifically for cable mounting applications requiring two rows of contacts with 1.27 mm pitch. This connector is engineered for use in electronics and electrical devices where precise, reliable wire-to-board connections are essential.
Featuring a shrouded female connector design with gold-plated phosphor bronze contacts, it ensures excellent conductivity and resistance against corrosion. The polyethylene terephthalate housing offers robust insulation and mechanical strength, suitable for diverse industrial and commercial environments.
The connector's right angle orientation facilitates compact PCB layouts and improved cable management. Its AMP-LATCH series insulation displacement contacts allow for quick, efficient termination to ribbon cables, streamlining assembly processes.
Designed for operation within a temperature range from -65°C to 105°C, it is suitable for demanding conditions found in sectors such as industrial electronics, telecommunications, automotive, and manufacturing.
The connector offers 20 contacts aligned in 2 rows, fitting 1.27 mm pitch ribbon cables. Gold over nickel plating prolongs contact life and reduces signal loss. Rated for 1 amp current and 250V, meeting standard electronic component requirements.
The housing material, polyethylene terephthalate, provides high durability and electrical isolation. Right angle female cable mount improves installation flexibility. Termination type IDC with AMP-LATCH series enables secure and reliable connections.
Operating temperature from -65°C to 105°C ensures reliable performance across environments.
Set contents include a single TE Connectivity 20-Way IDC Connector Female, 2 Row, model 2-215919-0. This product is ideal for integration into PCB assemblies and wiring harnesses where dependable IDC connections are required.
Browse our Electronics Components and IDC Connector selections at EnvMart for high-quality connectors suitable for industrial, laboratory, commercial, and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for a current of 1 amp and a voltage of 250 volts, ensuring reliable electrical performance.
The contacts are made of phosphor bronze and are gold plated over nickel to enhance conductivity and resistance to corrosion.
It operates reliably across a temperature range of -65°C to 105°C, making it suitable for various industrial environments.
The connector features 20 contacts arranged in 2 rows, with a pitch of 2.54 mm, suitable for ribbon cables.
It utilizes IDC (Insulation Displacement Contact) termination, specifically designed with the AMP-LATCH series for secure connections to ribbon cables.
This model has a right angle orientation, which facilitates compact PCB layouts and improves cable management.
The housing is made from polyethylene terephthalate, providing insulation and structural support.
Yes, it is designed for integration into PCB assemblies and wiring harnesses where dependable IDC connections are required.
Yes, it features a shrouded design which enhances the security of the cable connections.
It is suitable for use in industrial electronics, telecommunications, automotive, and manufacturing sectors.
The connector is manufactured in India.
This model is a female connector designed to mate with standard posts that are soldered into PCBs.
