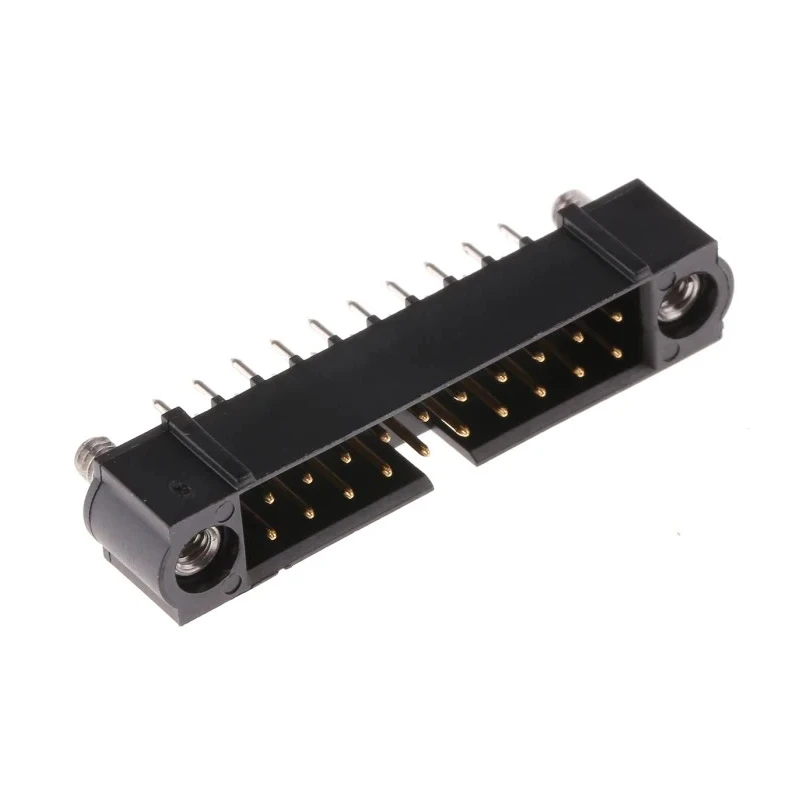

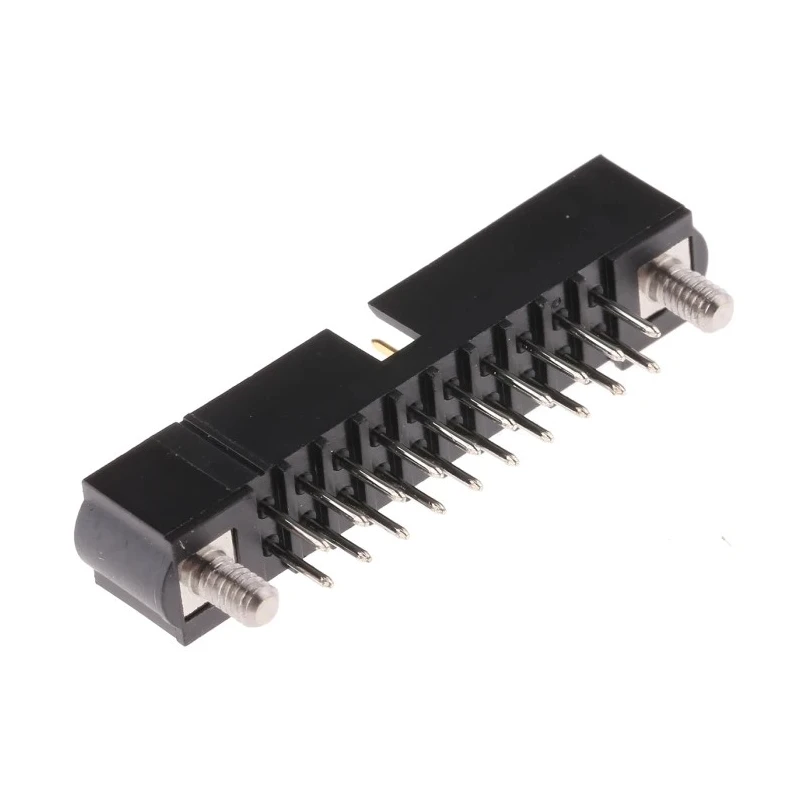

HARWIN Datamate J-Tek Series Straight Through Hole PCB Header, 20 Contacts, 2 mm Pitch, 2 Row, Shrouded M80-5102042

Free Delivery in India | Lowest Global Shipping Charges

HARWIN Datamate J-Tek Series Straight Through Hole PCB Header, 20 Contacts, 2 mm Pitch, 2 Row, Shrouded M80-5102042

Name: HARWIN Datamate J-Tek Series Straight Through Hole PCB Header, 20 Contacts, 2 mm Pitch, 2 Row, Shrouded M80-5102042
Brand: HARWIN
SKU: 126258
Price: 18.1 USD
Availability: InStock



Category PCB Headers Brand HARWIN Condition New

Specifications

Country of Origin	United Kingdom
Voltage	120V
Brand	HARWIN
Orientation	Straight
Current	3A
Model	M80-5102042
Mount Type	Through Hole
Housing Material	Polyphenylene Sulphide
Contact Material	Phosphor Bronze
Series	Datamate J-Tek
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	3mm

Key Features

Designed for Board-to-Board and Wire-to-Board connector systems.
Constructed with durable Polyphenylene Sulphide housing material.
Contacts made of Phosphor Bronze with Gold plating for enhanced conductivity.
Operating voltage up to 120V and current rating of 3A.
Fits industrial applications requiring high vibration and shock resistance.
Termination type is solder with male contact gender.
Tail pin length measures 3 mm and orientation is straight.
Wide operating temperature range from -55°C to 125°C.

Product Description

HARWIN M80-5102042 Datamate J-Tek Series Straight Through Hole PCB Header is a high-reliability connector designed for demanding industrial and electronic applications. Featuring 20 contacts arranged in 2 rows with a 2 mm pitch, this shrouded header is ideal for Board-to-Board and Wire-to-Board interconnections where safety and durability under harsh conditions are critical.

The connector housing is made from Polyphenylene Sulphide, known for excellent thermal stability and mechanical strength, making it suitable for environments subject to vibration, shock, and acceleration. Contacts are manufactured from high-quality Phosphor Bronze with Gold plating, ensuring superior conductivity and corrosion resistance, supporting currents up to 3A and voltages up to 120V.

Designed with a straight orientation and 3 mm tail pins for easy PCB insertion and solder termination, the M80-5102042 maintains connection integrity with a shrouded and polarized molded design to prevent mis-mating. It operates reliably across a temperature range from -55°C to 125°C and meets rigorous standards for performance and durability.

This connector is manufactured in the United Kingdom and is supplied new in condition, suitable for integration in electronic devices, industrial machinery, and other high-performance applications.

Durable Polyphenylene Sulphide housing provides mechanical robustness. Gold-plated Phosphor Bronze contacts ensure stable electrical performance. Designed for harsh environment applications and high mating cycles. Polarized, shrouded connectors prevent incorrect mating and improve safety.

Compatible with known industry equivalents and supports high reliability connections. Ideal for industrial, laboratory, and manufacturing electronic assemblies. Explore HARWIN connectors and other high-quality electronics components within EnvMart’s comprehensive catalog for precision solutions in your projects.
