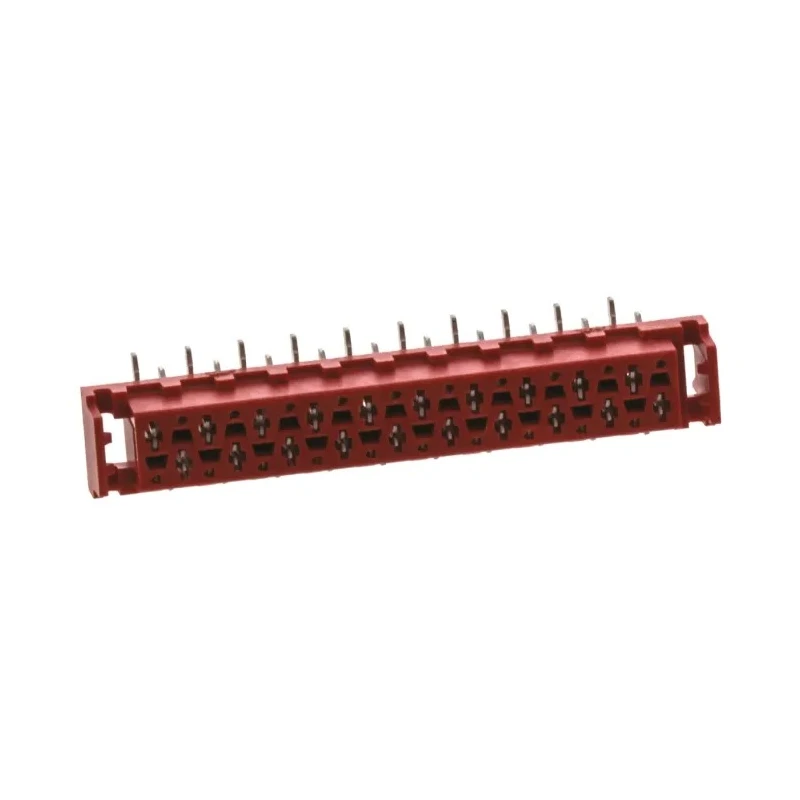

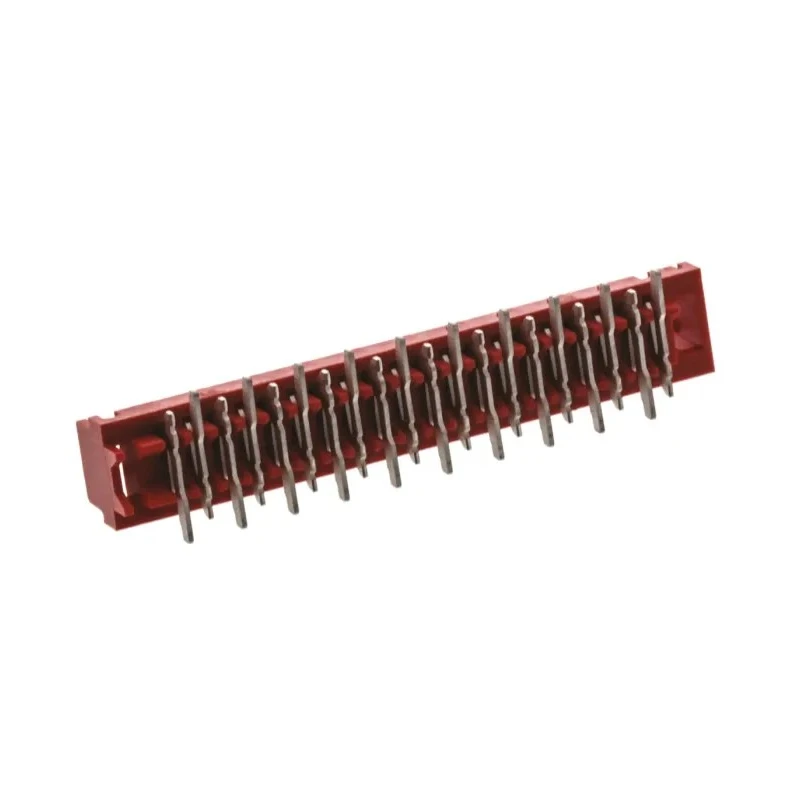

TE Connectivity Micro-MaTch Series Straight Surface PCB Socket 20-Contact 2 Row 2.54 mm Pitch Solder 9-338069-0

TE Connectivity 9-338069-0 Micro-MaTch Series Straight Surface PCB Socket is engineered for dependable board-to-board connections in electronic assemblies. This female on-board SMT socket features 20 contacts arranged in 2 rows with a 2.54 mm pitch, providing compact and space-saving connectivity suitable for high density PCB designs.

The socket housing is made from durable polyamide, while the contacts are bronze with tin plating, offering excellent electrical conductivity and corrosion resistance. Rated for 1.5 A current and 100 V voltage, it is designed to operate reliably across a temperature range of -40°C to 105°C.

Its contact spring system ensures a gas-tight connection resistant to fretting corrosion and vibration, enhancing signal integrity in harsh industrial environments. The straight orientation and surface mount design facilitate straightforward assembly on printed circuit boards.

Additional features include polarization to prevent mismating and locking latches in some variants for secure mating connections. This socket is widely used across various industrial and commercial applications including production and material handling equipment, robots, control units, automotive dashboard systems, and audio equipment.

Compact, space-saving SMT socket connector offering reliable electrical performance. 20 female contacts arranged in two rows with 2.54 mm pitch for precise fit. Polyamide housing with bronze, tin-plated contacts for durability and conductivity.

Supports 1.5 A current and 100 V operating voltage within an extended temperature range. Contact spring mechanism prevents fretting corrosion and ensures tight connection. Polarized design prevents mismating during assembly.

Optional locking latches provide secure mechanical retention. Suitable for industrial, laboratory, automotive, communication, and consumer electronics.
