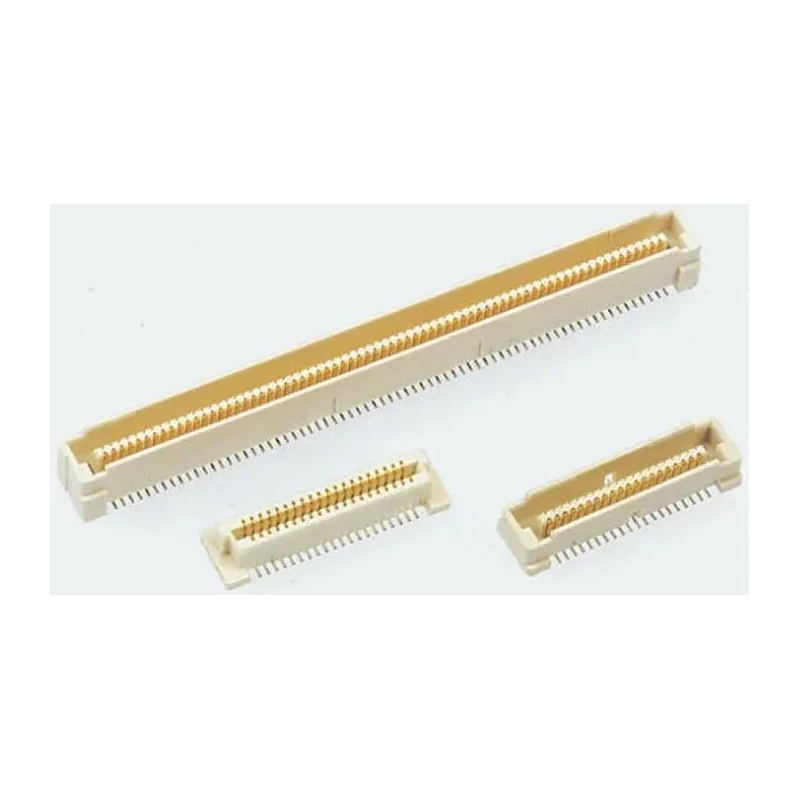

TE Connectivity Free Height Series Straight Surface PCB Socket 40-Contact 2 Row 0.8 mm Pitch Solder 5177985-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 100V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | Free Height |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- The connector supports a current rating of 500mA and voltage up to 100V.
- Constructed with liquid crystal polymer housing for durability and performance.
- Features a free height spring contact design to ensure reliable connections in board-to-board applications.
- Contact material composed of beryllium copper alloy plated with gold for enhanced conductivity and corrosion resistance.
- Operates reliably between -40°C to 125°C operating temperature range.
- Orientation is straight with solder-type termination suitable for SMT assembly.
- Designed for miniature parallel board stacking with space-saving 0.8 mm pitch.
- Polarization features and PCB positioning bosses ensure accurate mating and placement.
Product Description
TE Connectivity 5177985-1 Free Height Series Straight Surface PCB Socket is a 40-contact, 2-row connector that features a 0.8 mm pitch designed for surface mounting on printed circuit boards. This board-to-board connector is engineered to provide a high-density, reliable electrical connection suitable for parallel board stacking applications.
The connector housing is made from liquid crystal polymer, offering excellent durability and thermal stability. The contacts are crafted from beryllium copper alloy and plated with gold, ensuring outstanding conductivity and resistance to wear and corrosion. The bellows-type spring contact design provides flexibility and resilience against scooping or stubbing, contributing to long-term dependability.
Rated for a current of 500mA and voltage of 100V, this PCB socket supports operation within a broad temperature range from -40°C to 125°C, making it suitable for various industrial and commercial electronics. Its straight orientation and solder termination type facilitate easy SMT mounting and assembly.
The free height design allows for multiple stacking heights (5 to 16 mm) when mated with compatible board mount plugs, enabling versatile multi-board configurations. Polarization features along with PCB positioning bosses ensure accurate mating and placement, reducing assembly errors.
This connector is ideal for use in compact electronic devices such as notebook PCs, pen pads, mobile phones, and other applications that demand miniature, high-density packaging and robust electrical performance.
The connector supports a current rating of 500mA and voltage up to 100V. Constructed with liquid crystal polymer housing for durability and performance. Features a free height spring contact design for reliable board-to-board connections.
Contact material is beryllium copper alloy plated with gold for conductivity and corrosion resistance. Operates in temperatures ranging from -40°C to 125°C. Polarization and PCB positioning bosses ensure accurate mating and placement.
Supports multiple stacking heights from 5 to 16 mm with compatible plugs. Suitable for miniature electronic devices requiring space-saving connector solutions. Explore the comprehensive range of PCB Sockets and connectors available at EnvMart for your industrial and electronic component needs.
