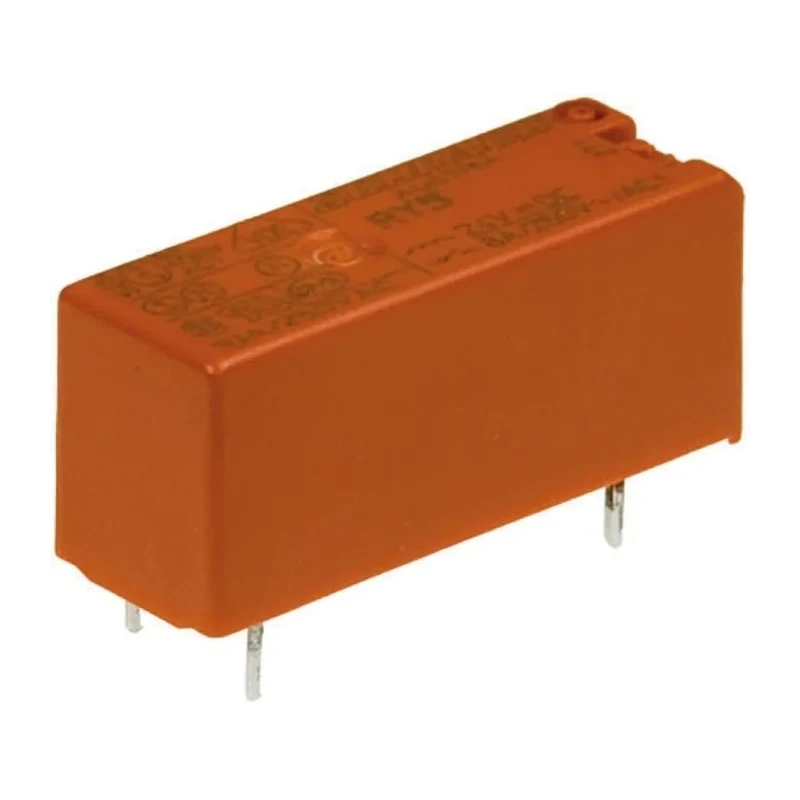

TE Connectivity PCB Power Relay 5V dc Coil 8A Switching Current SPST RY531005
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -40 to + 70°C |
| Dimensions | H 12.3mm, W 28.5mm, D 10mm |
| Height | 12.3mm |
| Length | 28.5mm |
| Model | RY531005 |
| Width | 10.1mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RY II |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | RoHS, VDE, IEC 60335-1 |
| Coil Resistance | 112Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
| Creepage and clearance | 8mm |
Key Features
- Compact design with dimensions H 12.3mm, W 28.5mm, D 10mm for space efficient PCB installation.
- Operates at coil voltage of 5V dc with a coil resistance of 112 ohms and coil power of 250mW.
- Single pole single throw (SPST) contact configuration rated for 8 amp switching current at 400V ac.
- Silver alloy contact material ensures excellent conductivity and durability.
- Wide operating temperature range from -40°C to +70°C for robust industrial use.
- Mount type designed specifically for PCB solder terminal connection for secure placement.
- Compliant with RoHS, VDE, IEC 60335-1 standards for safety and environmental regulations.
- Creepage and clearance distance of 8mm to maintain electrical insulation standards.
Product Description
TE Connectivity RY531005 PCB Power Relay is engineered to provide precision and durability within electronic control systems. This P.C.B. mounted power relay features a 5V DC coil voltage and a SPST contact configuration that is suitable for switching currents up to 8A, making it ideal for various power control applications in industrial automation and electronic circuits.
Its compact dimensions of 28.5mm length, 12.3mm height, and 10.1mm width allow for efficient space management on printed circuit boards. The relay uses solder terminals for robust mechanical and electrical connections on the PCB.
The coil resistance is 112 ohms with a coil power consumption of 250mW, ensuring efficient actuation at low power levels. The silver alloy contacts guarantee reliable conductivity and long service life. It supports switching AC voltage up to 400V with a switching power capability of 2 kVA.
Designed to operate reliably in environments ranging from -40°C up to +70°C, the RY531005 relay is suitable for a broad range of industrial, manufacturing, and automation system applications. The product conforms to safety and performance standards including RoHS, VDE, and IEC 60335-1, ensuring compliance with regulatory requirements.
Compact, robust construction with precise electrical characteristics. Reliable silver alloy contacts and secure solder terminal mounting. Wide operating temperature range for industrial resilience. Compliance with major international safety and environmental standards.
Suitable for use in power switching, industrial automation, and electronic control applications.
This PCB power relay by TE Connectivity is a trusted component for improving electrical switching efficiency and reliability in electronics manufacturing, HVAC controls, and other industrial machinery.
Explore more Power Relay products and accessories on EnvMart to optimize your electronic system designs with certified, high-quality components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 8A, suitable for various power control applications.
The relay has compact dimensions of 12.3mm in height, 28.5mm in length, and 10.1mm in width, allowing for efficient PCB installation.
It operates at a coil voltage of 5V DC with a coil resistance of 112 ohms.
This unit features a single pole single throw (SPST) contact configuration.
The relay can switch AC voltage up to 400V.
The coil power consumption is 250mW, ensuring efficient actuation.
The contacts are made from silver alloy, which ensures reliable conductivity and durability.
It can operate reliably in environments ranging from -40°C to +70°C.
This model is designed for PCB mounting with solder terminals for secure placement.
It is compliant with RoHS, VDE, and IEC 60335-1 standards for safety and environmental regulations.
The creepage and clearance distance is 8mm, maintaining electrical insulation standards.
The relay is manufactured in the Czech Republic.
