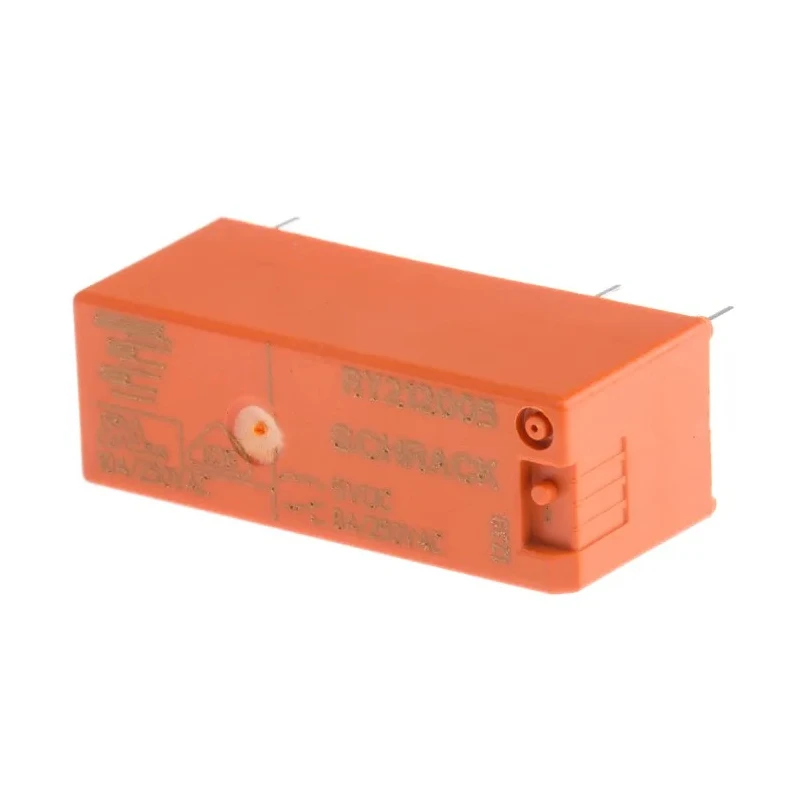

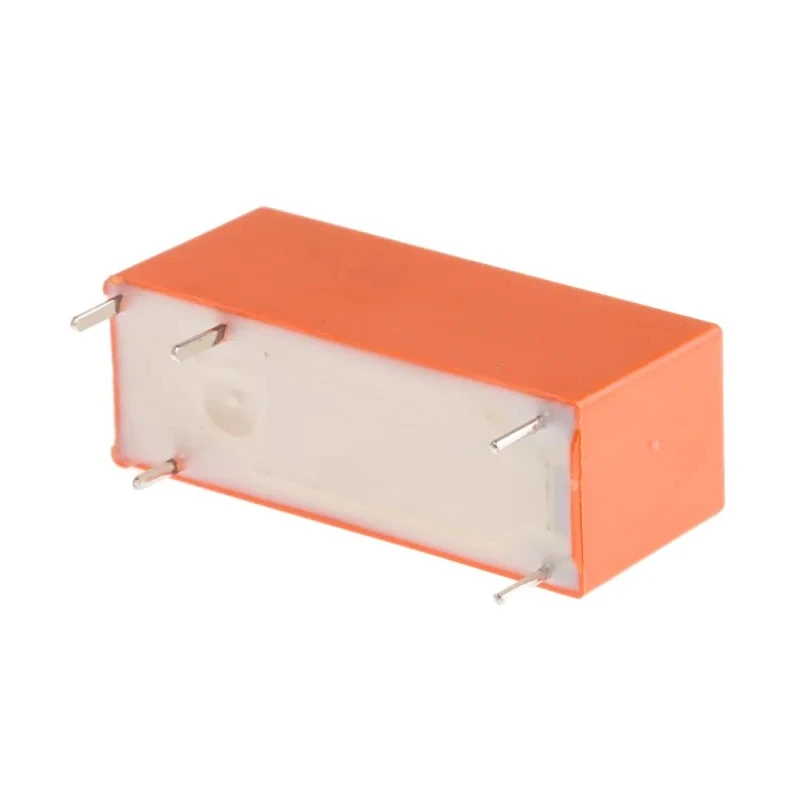

TE Connectivity PCB Power Relay, 5V DC Coil, 8A Switching Current, SPDT RY212005

TE Connectivity RY212005 PCB Power Relay is a high-performance relay designed for PCB mounting applications requiring reliable switching capability. With a coil voltage of 5V DC and a switching current capacity of 8A, this relay supports a wide range of industrial and automation uses.

The relay features a single pole double throw (SPDT) contact configuration with gold plated contacts that provide excellent conductivity and resistance to corrosion over time. The solder terminal type and compact design, including dimensions of 12.3mm height, 28.5mm length, and 10.1mm width, allow for efficient integration into printed circuit boards.

Operating within a temperature range of -40°C to +70°C, the RY212005 offers stable performance under challenging environmental conditions. Its coil resistance is specified at 112 ohms with a coil power consumption of just 250mW, contributing to energy-efficient operation. The relay supports switching AC voltages up to 400V AC and switching power of 2kVA, suitable for a variety of control and power circuits.

Certified to meet IEC 60335-1, RoHS, and VDE standards, this device meets stringent electrical, safety, and environmental requirements. The design provides a creepage and clearance spacing of 8mm, enhancing electrical isolation and safety.

Manufactured in Czech Republic, the RY212005 power relay is ideal for electronics, industrial automation, instrumentation, and control systems where dependable switching with compact form factor is critical. The device comes as part of the RY II series, known for durability and precision.

Operates at 5V DC coil voltage providing efficient control. Supports 8A switching current with SPDT contacts. Gold plated contacts ensure low resistance and long life. PCB mount with solder terminals enables easy installation.

Wide operating temperature range of -40°C to 70°C. Standards compliant with IEC 60335-1, RoHS, and VDE certifications. Compact size with dimensions 12.3mm x 28.5mm x 10.1mm. Low coil power of 250mW enhances energy efficiency.

Creepage and clearance of 8mm for improved safety. Browse through EnvMart's range of Power Relays for more solutions tailored to your electrical and automation requirements.
