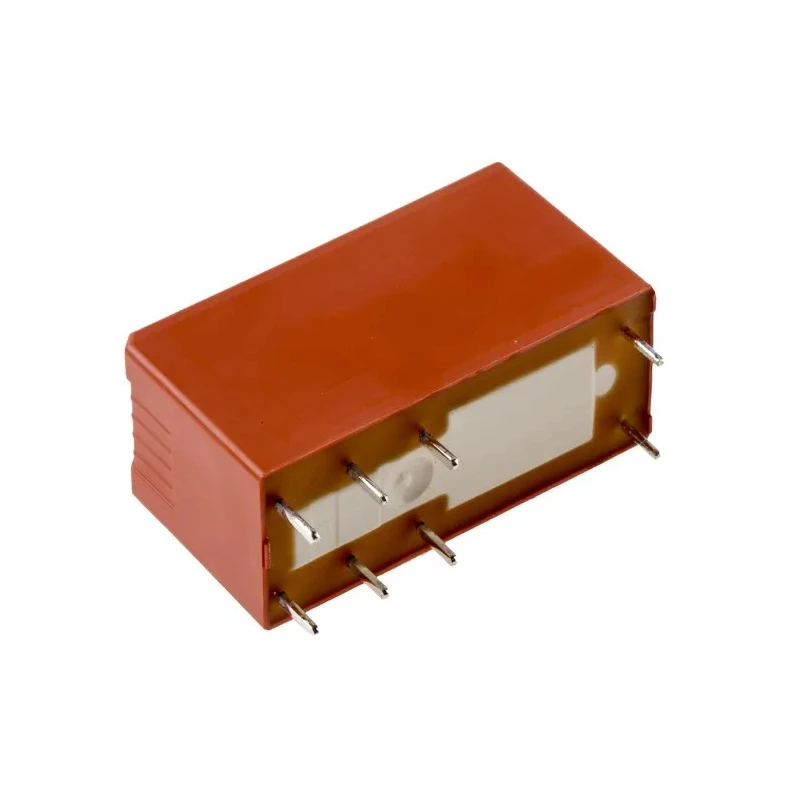

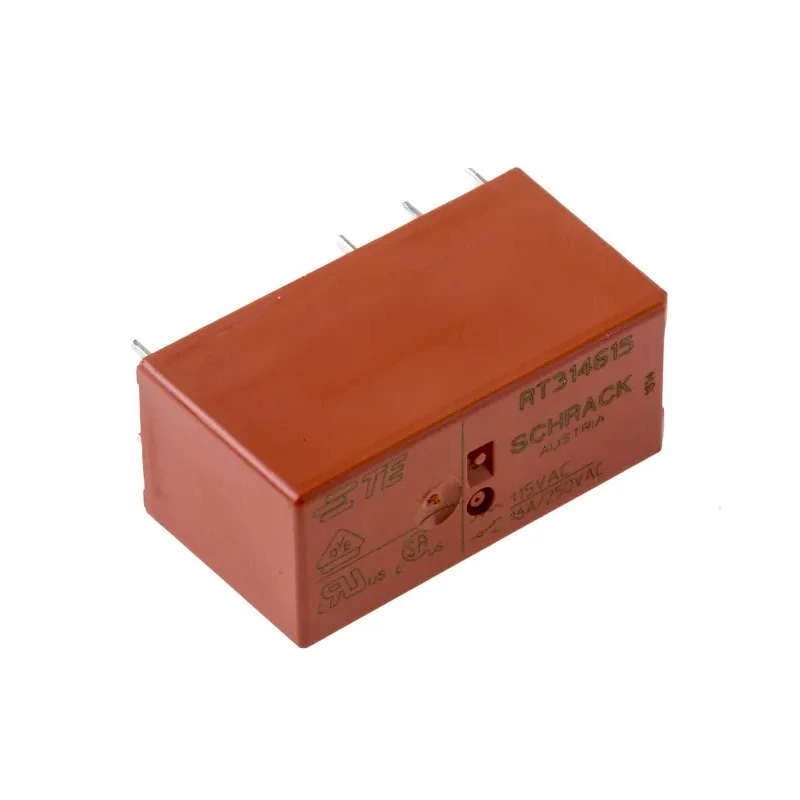

TE Connectivity RT314615 PCB Power Relay 115V AC Coil 16A Switching Current SPDT

TE Connectivity RT314615 is a high-quality PCB Power Relay featuring a 115V AC coil and a switching current rating of 16A in a Single Pole Double Throw (SPDT) contact configuration. This relay is part of the RT1 series, which is designed for reliable through-hole mounting on printed circuit boards (PCB). Its versatile performance makes it suitable for a wide range of industrial and domestic applications including automation systems, interface controls, security lighting, and heating systems.

The relay's coil has a resistance of 8.1 kΩ and consumes just 250 mW of coil power, ensuring efficient operation. It is constructed with silver nickel alloy contacts to provide excellent conductivity and durability over prolonged use. The relay complies with key international standards such as IEC 60335-1, RoHS, and VDE, assuring safety and performance.

The mechanical dimensions are compact with a length of 29 mm, width of 12.7 mm, and height of 15.7 mm, making it ideal for PCB designs where space optimization is critical. It operates reliably between -40°C and 70°C ambient temperatures, and is suitable for switching AC voltages up to 400V AC with a maximum switching power of 4 kVA.

The RT314615 relay comes with solder-type terminals and is flux proof, enhancing its reliability during soldering and in various operating environments. This makes it perfect for use in demanding industrial automation, control circuits, and domestic electronic devices.

Manufactured in Austria, this relay benefits from TE Connectivity's expertise and quality manufacturing processes. The product supports efficient and safe electrical switching requirements and is a preferred choice for engineers designing control and automation equipment.

This Power Relay is designed for PCB mounting with solder terminal types. It operates effectively in temperatures ranging from -40°C to 70°C. The relay has a coil resistance of 8.1 kΩ and coil power consumption of 250 mW.

Its contact is made of silver nickel alloy for reliable conductivity and durability. The relay complies with IEC 60335-1, RoHS, and VDE standards and approvals. Dimensions include a length of 29 mm, width of 12.7 mm, and height of 15.7 mm, suitable for compact PCB designs.

Rated switching AC voltage is 400V AC with maximum switching power of 4 kVA. Ideal for automation, interface, domestic applications, security lighting, and heating systems. Manufactured in Austria with high-quality standards and flux proof pinning.
