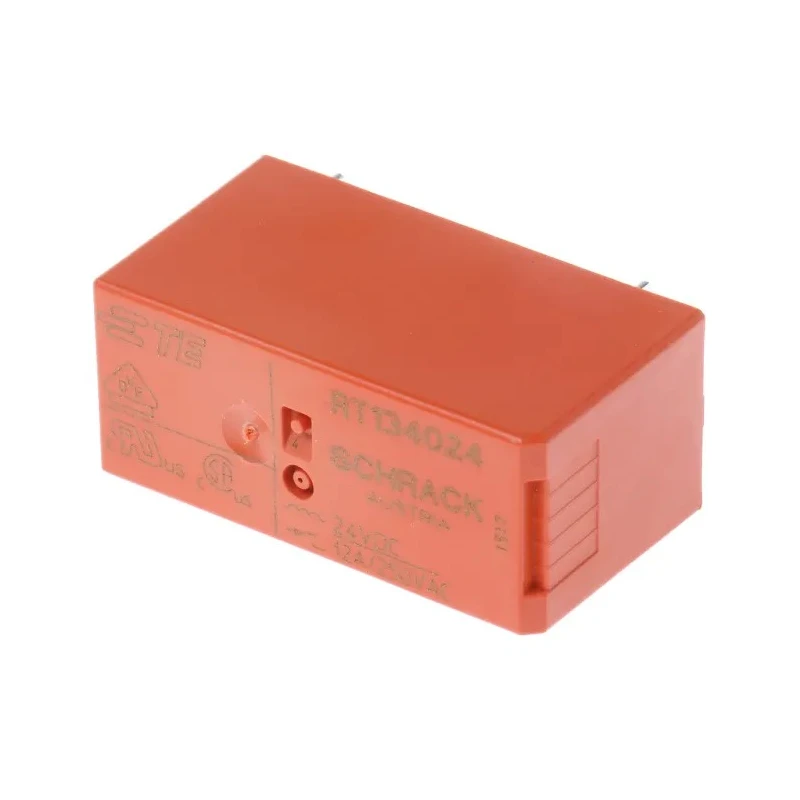

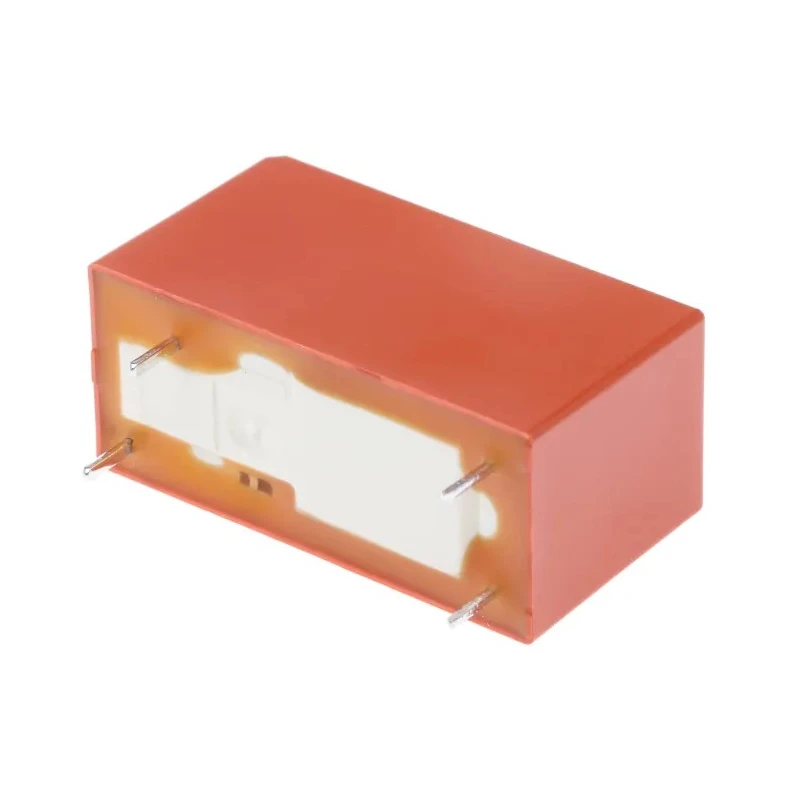

TE Connectivity PCB Power Relay, 24V dc Coil, 12A Switching Current, SPST RT134024
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT134024 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- Features a SPST contact configuration for straightforward switching operations.
- Suitable for through-hole PCB mounting with solder terminal type.
- Operates efficiently within a temperature range of -40°C to 85°C.
- Constructed with Silver Nickel Alloy contacts for enhanced conductivity and durability.
- Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height optimize space on PCBs.
- Coil resistance of 1.4kΩ ensures low power consumption.
- Coil power rating at 250mW supports efficient coil operation.
- Capable of switching AC voltages up to 400V ac and switching power of 3kVA.
Product Description
TE Connectivity RT134024 PCB Power Relay features a 24V dc coil and supports a 12A switching current suitable for diverse automation and control applications. This SPST relay is designed for PCB mounting and includes solder terminals to facilitate easy and reliable installation in electronic systems.
Its Silver Nickel Alloy contacts provide excellent conductivity and long service life under frequent switching demands. Operating temperature ranges from -40°C to a maximum of 85°C, making it adaptable for a variety of industrial environments.
The relay's compact size with dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height helps save PCB space without compromising performance. With a coil resistance of 1.4kΩ and coil power of 250mW, this relay ensures efficient power consumption during operation.
This relay can switch AC voltages up to 400V AC and supports a switching power rating of up to 3kVA, enhancing its usability in power control circuits. It complies with international standards including IEC 60335-1, RoHS, and VDE, assuring product safety and environmental compliance.
Commonly applied in industrial automation, interface control, security lighting systems, and domestic appliance control circuits. Manufactured in Austria under strict quality controls, it assures reliable performance in demanding environments.
Features a SPST contact configuration for straightforward switching operations. Suitable for through-hole PCB mounting with solder terminal type. Operates efficiently within a temperature range of -40°C to 85°C. Constructed with Silver Nickel Alloy contacts for enhanced conductivity and durability.
Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height optimize space on PCBs. Coil resistance of 1.4kΩ ensures low power consumption. Coil power rating at 250mW supports efficient coil operation. Capable of switching AC voltages up to 400V ac and switching power of 3kVA.
Meets IEC 60335-1, RoHS, and VDE standards ensuring compliance and safety. Manufactured in Austria ensuring high-quality production standards. Explore TE Connectivity products and related relays on EnvMart for industrial, electrical, and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC.
It supports a maximum switching current of 12A.
This relay has dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height.
It features a Single Pole Single Throw (SPST) contact configuration.
It is capable of switching AC voltages up to 400V AC.
The coil power rating is 250mW, which supports efficient operation.
The contacts are constructed from Silver Nickel Alloy, enhancing conductivity and durability.
It operates efficiently within a temperature range of -40°C to 85°C.
This model is suitable for through-hole PCB mounting with solder terminals.
It complies with IEC 60335-1, RoHS, and VDE standards, ensuring safety and environmental compliance.
It is manufactured in Austria under strict quality controls.
Common applications include industrial automation, interface control, security lighting systems, and domestic appliance control circuits.
