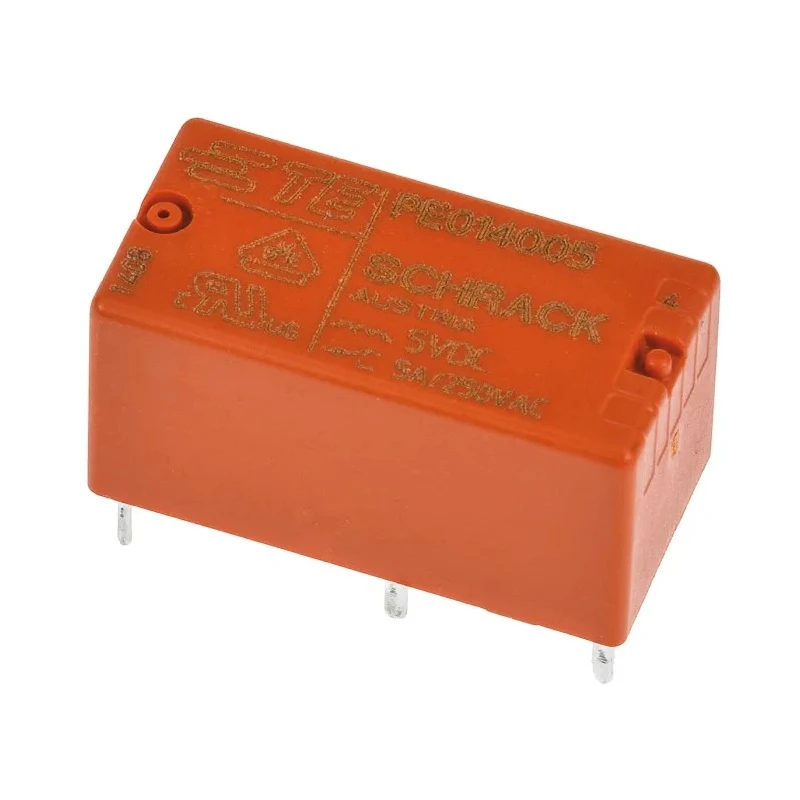

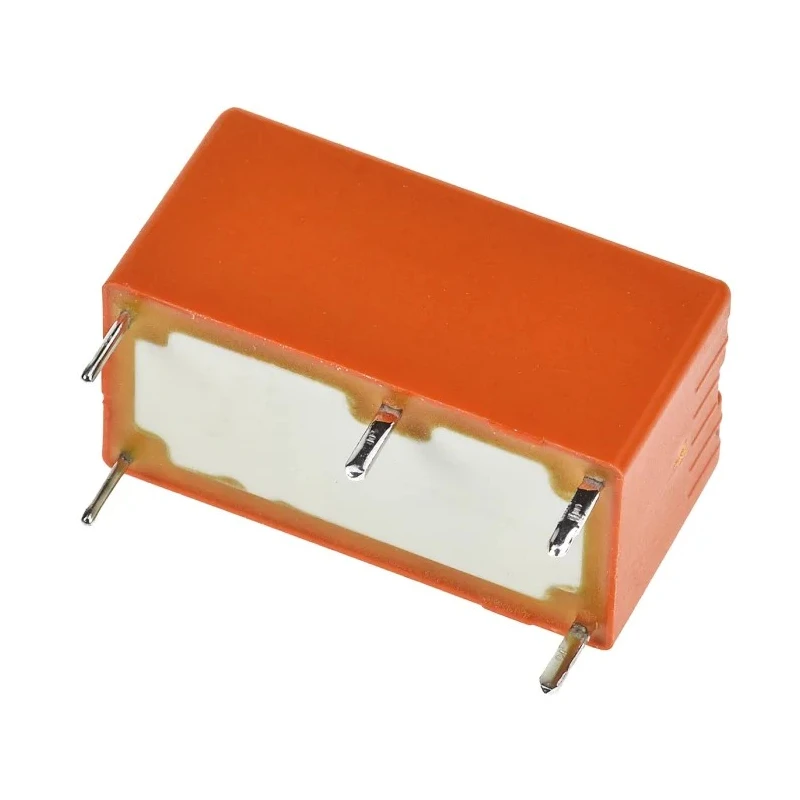

TE Connectivity PCB Power Relay 5V DC Coil 5A Switching Current SPDT PE014005
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 10mm |
| Operating Temperature Range | -40 to +85°C |
| Length | 20mm |
| Model | PE014005 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | PE |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Standards/Approvals | IEC 61810, RoHS |
| Coil Resistance | 125Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 200mW |
| High Coil sensitivity | 200mW |
Key Features
- Compact relay designed for PCB mounting with solder terminals.
- Operates reliably within -40°C to 85°C temperature range.
- Low coil power consumption at 200mW for energy efficiency.
- Silver nickel alloy contact material ensures durability and reliable conductivity.
- High switching AC voltage capability up to 400V AC.
- Contact configuration is Single Pole Double Throw (SPDT) for versatile switching.
- Meets IEC 61810 standard and RoHS compliance for quality assurance.
- Coil resistance is 125 ohms to ensure stable coil operation.
Product Description
TE Connectivity PE014005 PCB Power Relay features a 5V DC coil voltage and a switching current of 5A with an SPDT contact configuration. Designed for PCB mounting with solder terminals, this relay delivers reliable performance in industrial electronic applications, household appliances, and control equipment.
This power relay operates efficiently within a temperature range of -40°C to +85°C, with a compact size of 20mm length, 10mm width, and 10mm height, making it suitable for space-constrained PCB designs. The relay coil consumes only 200mW of power, ensuring low energy consumption.
The contact material made of silver nickel alloy guarantees long-lasting durability and excellent electrical conductivity. It can switch AC voltages up to 400V while maintaining a high degree of coil sensitivity and reliability.
This product complies with IEC 61810 standards and RoHS directives, highlighting its safety and environmental compliance. The coil resistance is 125 ohms, ensuring stable coil operation and switching performance.
Compact PCB mounting with solder terminals. Operating temperature from -40°C to +85°C for versatile environments. Low coil power of 200mW for energy saving. Silver nickel alloy contacts for enhanced durability. Switching AC voltage capacity of 400V AC.
SPDT contact configuration for flexible circuit applications. IEC 61810 and RoHS certified for quality and safety assurance. Small footprint dimensions: 20mm x 10mm x 10mm (LxWxH). Stable coil resistance of 125 ohms. Applicable in industrial, household, and control systems.
This TE Connectivity PCB power relay is an ideal choice for engineers and manufacturers seeking a reliable and efficient solution for switching and control tasks in industrial automation, electronics, and consumer appliances. Explore EnvMart’s full range of Power Relays and related components to optimize your designs and projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 5V DC.
This model has a maximum switching current of 5A.
The contact configuration of the PE014005 relay is Single Pole Double Throw (SPDT).
It operates reliably within a temperature range of -40°C to +85°C.
The coil resistance is 125 ohms.
This relay is designed for PCB mounting with solder terminals.
It can switch AC voltages up to 400V AC.
The contact material is made of silver nickel alloy.
The coil power consumption is 200mW, ensuring low energy usage.
This relay meets IEC 61810 standards and is RoHS compliant.
The dimensions of this relay are 20mm in length, 10mm in width, and 10mm in height.
This relay is suitable for industrial electronic applications, household appliances, and control equipment.
