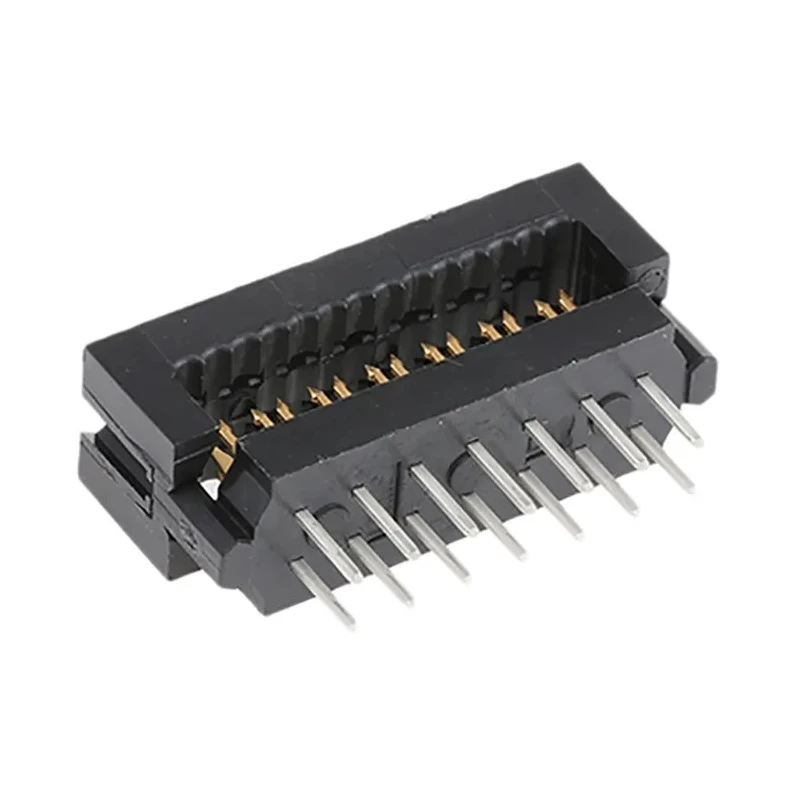

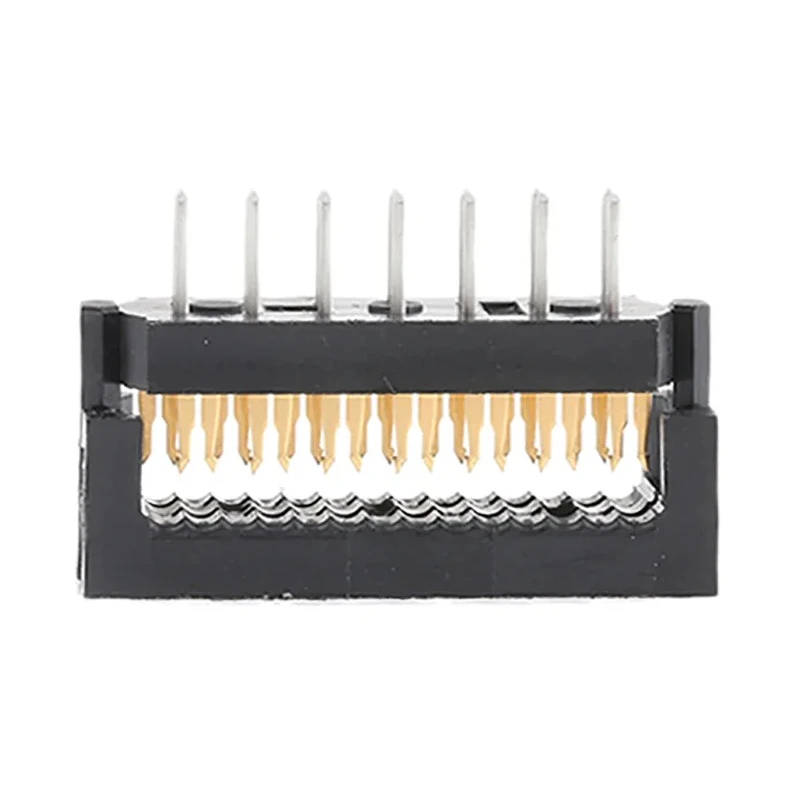

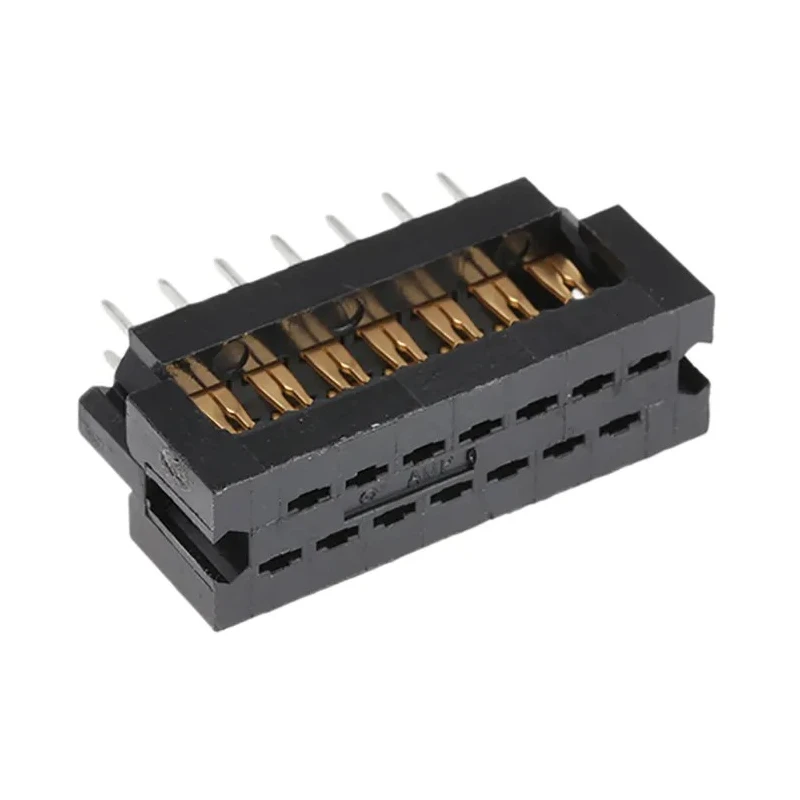

TE Connectivity 14-Way IDC Connector Male for Cable, 2 Row 2-746610-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMP-LATCH |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shrouded/Unshrouded | Shrouded |
Key Features
- Features 14 contacts arranged in 2 rows for efficient wire-to-board connections.
- Designed with a shrouded structure and male connector gender to ensure safe connections.
- Contact plating of gold over nickel enhances durability and conductivity.
- Suitable for operations in temperatures from -65°C up to 105°C.
- Termination type is IDC for fast mass termination without wire stripping.
- Mount type is cable with a straight orientation for easy installation.
- Housing made from thermoplastic material, ensuring electrical insulation and robustness.
- Phosphor bronze contacts ensure excellent mechanical and electrical performance.
Product Description
TE Connectivity 2-746610-2 14-Way IDC Connector Male for Cable, 2 Row is a high-quality IDC Connector designed for efficient and reliable wire-to-board interconnections. This AMP-LATCH PCB DIP plug features a 2.54mm pitch and is configured with 14 contacts arranged in 2 rows, enabling fast and economical mass termination of ribbon cables directly to PCBs without mating connectors.
The connector operates at 250V AC with a current rating of 1 ampere and can handle operating temperatures ranging from -65°C to 105°C. Its shrouded male contacts are plated with gold over nickel for enhanced conductivity and corrosion resistance. The housing is constructed from robust thermoplastic ensuring durability and insulation.
Its design includes AMP-LATCH technology with pre-assembled housing and cover, offering mating alignment and polarization features for secure and accurate connections. Some versions include boardlocks for additional PCB stability. The IDC termination type allows quick installation without wire preparation, improving production efficiency.
This product is well-suited for use in a wide range of industrial, commercial, and technological applications including computers, electronic instruments, business and medical equipment, making it a versatile component in electronics manufacturing and repair.
14-way contact configuration in 2 rows for effective signal transmission. Gold over nickel plating and phosphor bronze contacts for reliability. Thermoplastic housing providing electrical insulation and mechanical protection.
AMP-LATCH design enabling secure mating and polarization. Wide operating temperature range from -65°C to 105°C for diverse environments. Termination by IDC technology allows quick, tool-less cable connections. Cable mount type with straight orientation for straightforward integration.
Applications include electronics, business and medical equipment manufacturing. Explore more components and connectors from TE Connectivity on EnvMart for your electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The IDC connector has a voltage rating of 250V AC.
This model has a current rating of 1 ampere.
It can operate within a temperature range of -65°C to 105°C.
The connector features 14 contacts arranged in 2 rows.
It uses IDC (Insulation Displacement Connector) termination for fast mass termination without wire stripping.
The housing is constructed from thermoplastic material, providing electrical insulation and robustness.
The pitch of this connector is 2.54mm.
It uses phosphor bronze contacts for excellent mechanical and electrical performance.
The connector features AMP-LATCH technology, which provides mating alignment and polarization for secure connections.
The connector has a straight orientation for easy installation.
The country of origin for this connector is India.
This connector is suitable for use in various applications including computers, electronic instruments, and medical equipment.
