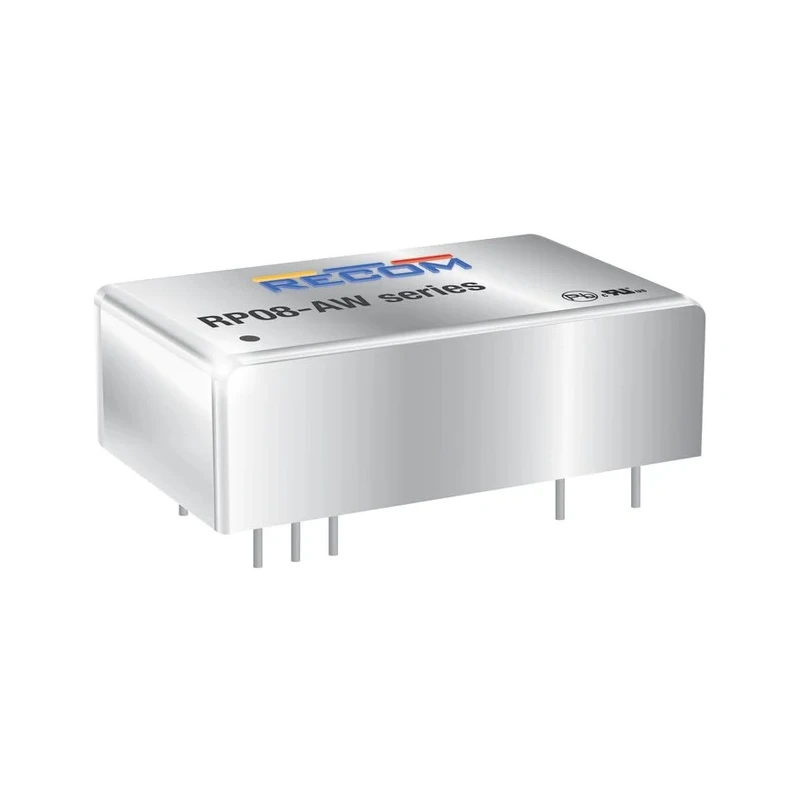

Recom DC/DC Converter RP08-AW Series 5V DC 1.6A 24V DC Input 8W Through Hole DIP Package RP08-AW
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RP08-AW DC/DC Converter, 5V dc/ 1 |
| Brand | Recom |
| Efficiency | 87% |
| Length | 31.8mm |
| Model | RP08-AW |
| Depth | 10.2mm |
| Gross Weight | 18g |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | RP08-AW |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1078000h |
| Number of outputs | 1 |
| Ripple and Noise | 75mV Pk-Pk |
| Maximum Output Power | 8W |
| Maximum Input Voltage | 24V dc |
| Standards/Approvals | EN 60950 |
| Minimum Input Voltage | 9V |
| Number of Pins | 24 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 1.6A |
| Output Voltage Adjustment Range | 9/40 V |
| Isolation Voltage | 1.6kV dc |
| Output Current 2 | 1600mA |
Key Features
- Wide input voltage range from 9V to 36V DC allowing flexible supply options.
- High efficiency of 87% minimizes energy loss and heat generation.
- Isolation voltage of 1.6kV DC provides excellent electrical isolation and safety.
- Robust operating temperature range from -40°C to +85°C suits harsh industrial environments.
- Compact DIP package with 24 pins enables easy PCB mounting and integration.
- Ripple and noise kept low at 75mV peak to peak ensures stable output voltage.
- Continuous short-circuit protection enhances device safety and longevity.
- MTBF of approximately 1,078,000 hours offers dependable long-term operation.
Product Description

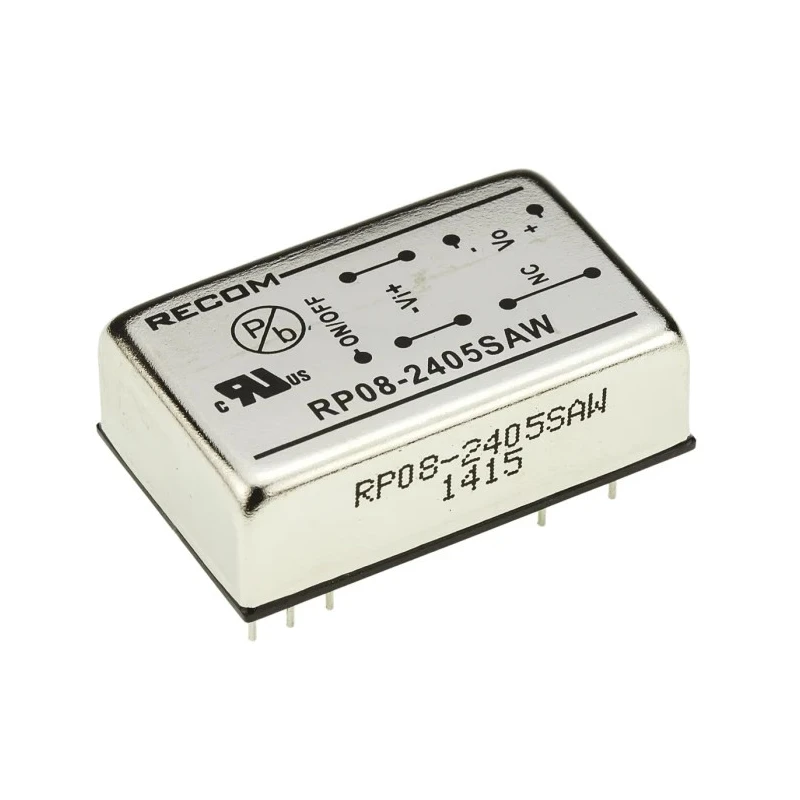

Recom RP08-AW DC/DC Converter RP08-2405SAW is engineered to step down DC voltages with high precision and safety. This converter efficiently converts input voltages ranging from 9V to 36V DC down to a regulated 5V DC output at 1.6 amps, making it ideal for reliable power supply in various electronic devices.

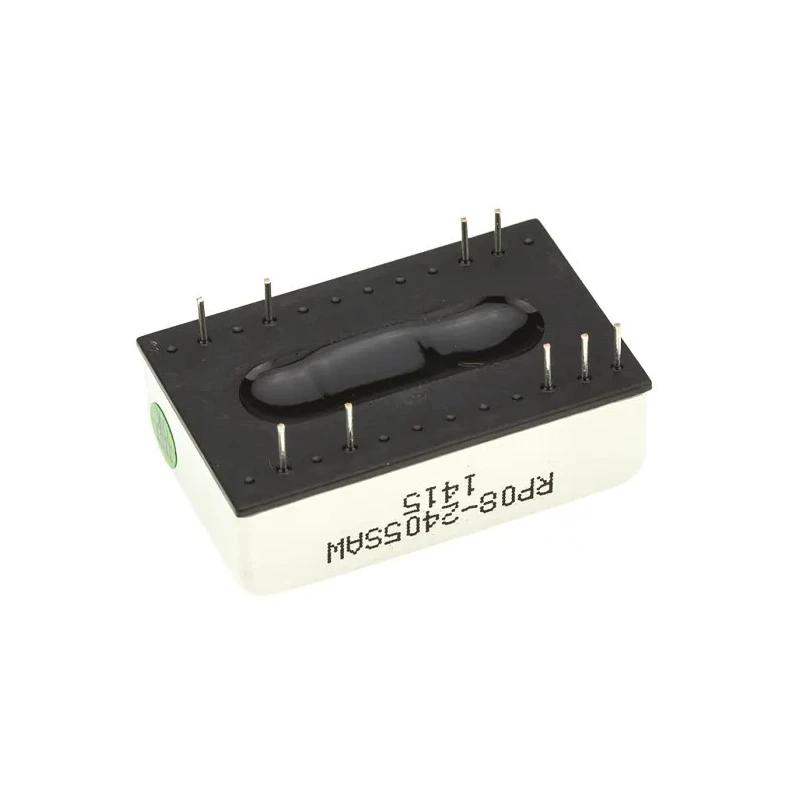

The device features a through hole DIP package with 24 pins that facilitate secure mounting on printed circuit boards. Constructed with a nickel-coated copper housing, the converter offers excellent corrosion resistance and high electrical conductivity, suitable for demanding conditions.
Its wide operating temperature range from -40°C to 85°C allows it to perform reliably in demanding industrial, manufacturing, medical, railway technology, and consumer electronics applications. The isolation voltage rating of 1.6kV DC ensures safety by electrically separating input and output circuits, reducing risks of electrical hazards.
With an efficiency rating of up to 87%, energy losses are minimized, and the low ripple and noise (75mV peak-to-peak) supports stable and clean voltage delivery. The unit includes continuous short-circuit protection for enhanced safety and durability in complex power systems.
The mean time between failures (MTBF) of over 1 million hours underscores the device's long-lasting performance in critical operational settings. Wide 9 to 36V DC input voltage range supports multiple power sources. 5V DC regulated output current up to 1.6 amps.
High isolation voltage for safety and reliability. DIP package format with 24 pins for secure mounting. High efficiency maintains power economy and reduces heat. Robust construction suitable for harsh environments. Short-circuit protection enhances device lifespan.
Applications include consumer electronics, medical devices, manufacturing, and railway technology.
This Recom DC/DC converter model RP08-AW is suitable for engineers and designers needing a reliable, compact, and high-efficiency voltage regulation solution. It supports industrial and commercial electronic development where stable low-voltage DC output is essential.
Explore the comprehensive range of DC/DC Converters at EnvMart to find the perfect fit for your electronic power supply requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 9V to 36V DC.
The maximum output power of the RP08-AW is 8W.
This model has an efficiency rating of 87%.
The output current capability of this converter is up to 1.6A.

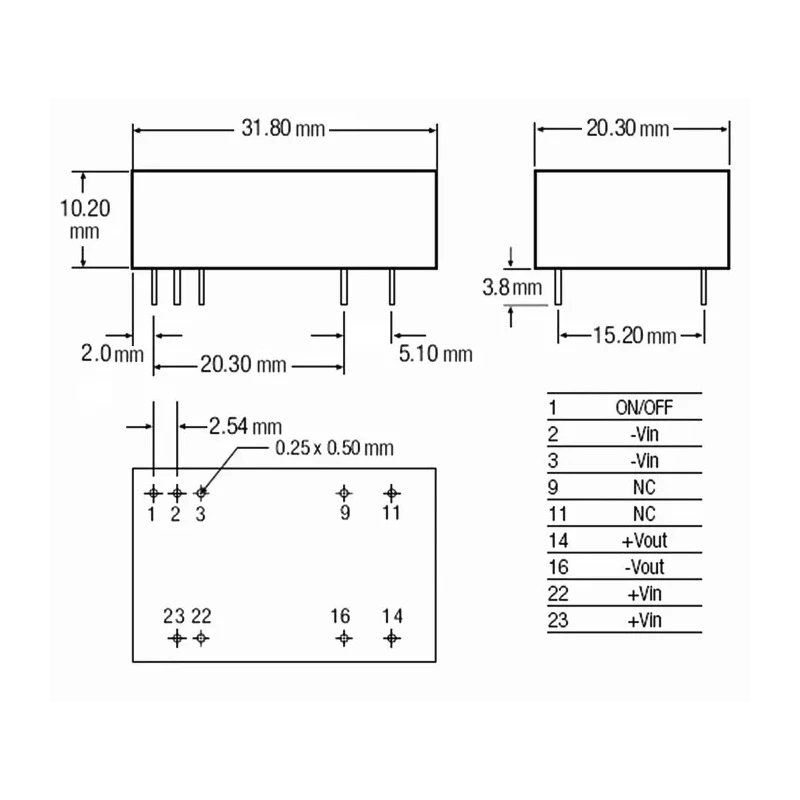

The dimensions of this model are 31.8mm in length, 20.3mm in width, and 10.2mm in depth.
This converter supports through hole mounting.
The isolation voltage rating for this model is 1.6kV DC.
The operating temperature range for this converter is from -40°C to +85°C.
The ripple and noise for this model is kept low at 75mV peak to peak.
This model complies with the EN 60950 standard.
The MTBF for this converter is approximately 1,078,000 hours.
This converter is suitable for applications in consumer electronics, medical devices, manufacturing, and railway technology.
