TE Connectivity PIDG Insulated Ring Terminal Red M4 Stud Size 22 AWG to 16 AWG Nylon 320554

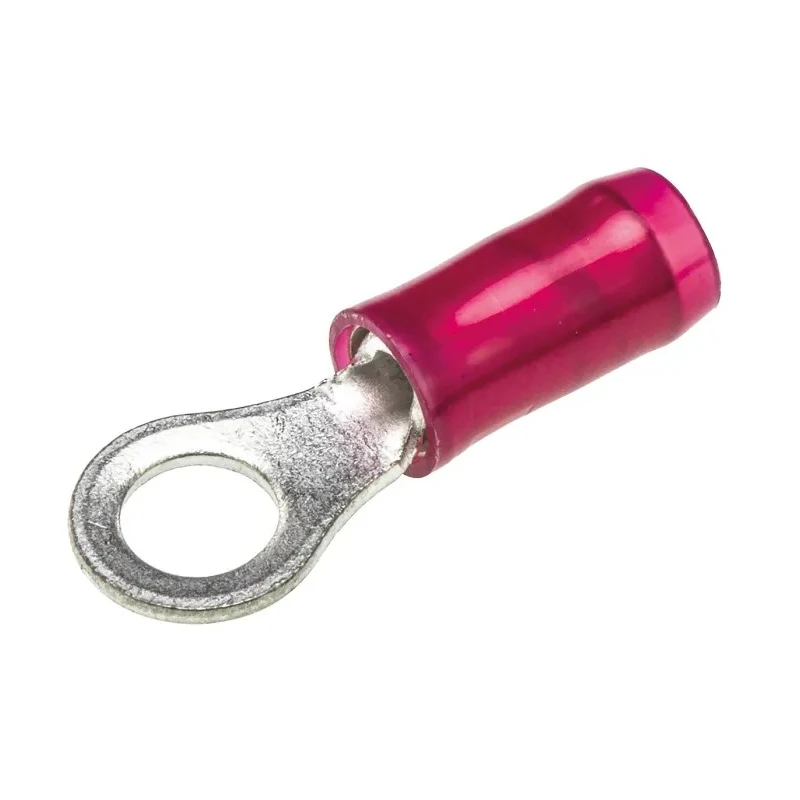

TE Connectivity 320554 PIDG Insulated Ring Terminal offers a high-quality wiring solution designed for secure and reliable electrical connections in industrial and electronic applications. It features a high conductivity copper body with a tin-plated contact that ensures excellent contact and corrosion resistance. The terminal is equipped with a red nylon insulation sleeve which aids in wire size identification and improves insulation protection.

This ring terminal is specifically designed for a stud size M4 and supports wire sizes ranging from 22 AWG to 16 AWG (0.26 mm² to 1.65 mm²), making it ideal for a wide range of wiring needs in instrumentation, control panels, power supplies, and transportation equipment. The terminal's overall length is 20.24 mm with an outer ring diameter of 7.14 mm, providing a compact and space-efficient solution.

The PIDG (Pre-Insulated Diamond Grip) design incorporates serrations inside the wire barrel for enhanced tensile strength and reliable contact after crimping. A copper sleeve within the barrel supports wire insulation and prevents fraying during installation. The funnelled wire entry facilitates easy wire insertion, accelerating production and ensuring consistent crimps when used with specialized tooling dies.

These features make the TE Connectivity 320554 Ring Terminals suitable for demanding applications including aerospace, automotive, appliances, and general industrial wiring where reliability and ease of assembly are crucial. The terminals meet rigorous standards for electrical and mechanical performance, providing assurance of consistent quality.

High conductivity copper body with tin plated contact for optimal electrical performance and corrosion resistance. Red nylon insulation sleeve for easy wire size recognition and enhanced insulation. M4 stud size with compact outer diameter enables secure mounting within electrical panels and assemblies.

Wire size compatibility from 22 AWG to 16 AWG covers a broad range of wiring needs. PIDG design includes serrated wire barrel for excellent tensile strength and reliable crimp connections. Funnelled wire entry simplifies wire insertion for faster and consistent crimping.

Suitable for use across electronics, industrial, transportation, aerospace, and appliance sectors.

For professional wiring solutions, explore TE Connectivity connectors and terminals category at EnvMart to find matching accessories and part numbers for enhanced compatibility and performance.
