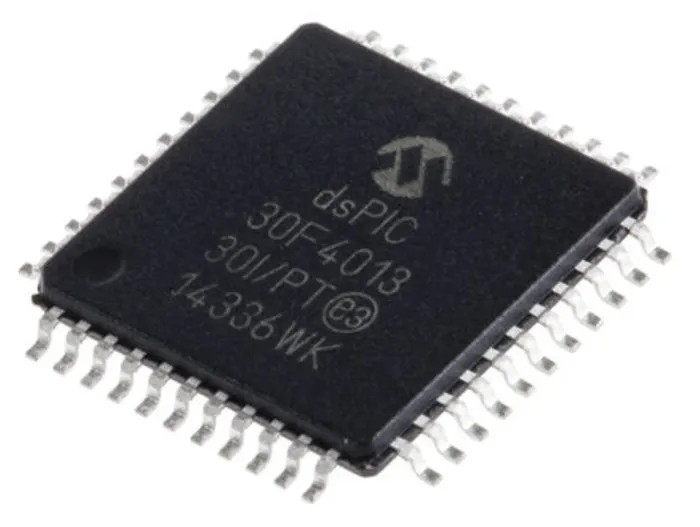

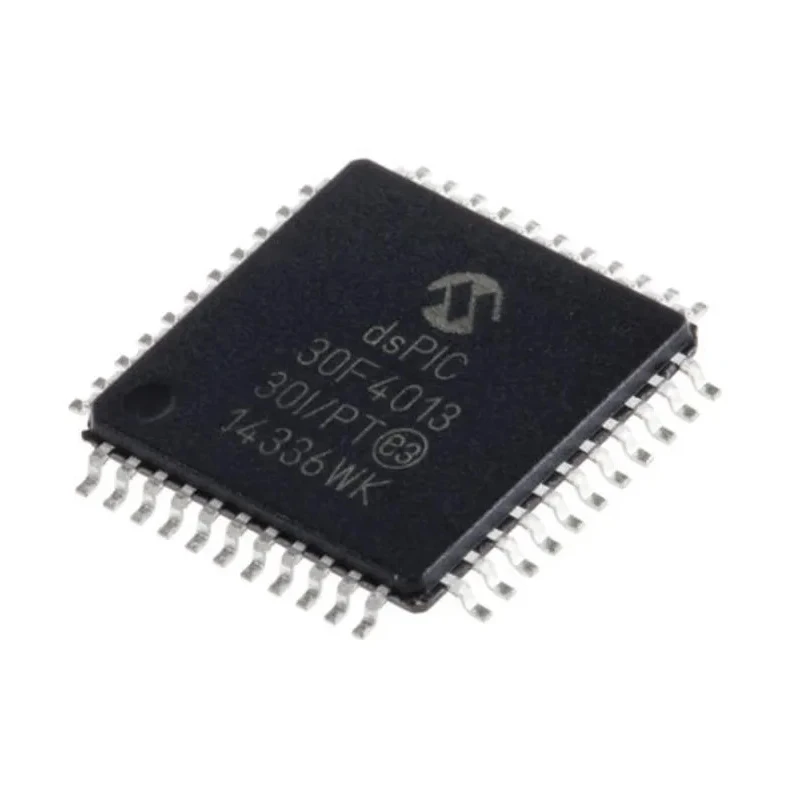

Microchip dsPIC30F 16-bit Digital Signal Processor 30 MIPS 48kB FLASH 44-Pin TQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | dsPIC30F |
| Width | 10mm |
| Mount Type | Surface |
| Series | dsPIC30F |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| ADC Resolution | 12bit |
| Timer Resolution | 16bit |
| Pin Count | 44 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Program Memory Size | 48kB |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 30MIPS |
| Number of PWM Units | 4 |
| PWM Resolution | 16bit |
| ADC Channels | 13 |
Key Features
- Operates with a maximum clock frequency of 30 MIPS for efficient processing.
- Features 16-bit data bus width and RISC instruction set architecture.
- Includes 2kB RAM and 48kB FLASH program memory for extensive application support.
- Supports a wide operating voltage range from 2.5V to 5.5V for flexible system design.
- Equipped with a 12-bit ADC having 13 channels for precise analog-to-digital conversion.
- Provides 5 timers and 4 PWM units with 16-bit resolution for advanced control applications.
- Compact dimensions of 10mm x 10mm x 1.05mm in a surface mount TQFP package.
- Designed for reliable operation from -40°C to 85°C ensuring industrial-grade robustness.
Product Description
Microchip dsPIC30F4013-30I/PT is a high-performance 16-bit Digital Signal Processor designed to combine the performance of a DSP with the simplicity of a microcontroller unit (MCU). Operating at 30 MIPS, this DSP is equipped with 48kB of FLASH memory and 2kB RAM, supporting advanced processing requirements in embedded control systems.
The device features a 16-bit data bus and uses a RISC instruction set architecture to optimize computing efficiency. It supports a wide supply voltage range from 2.5V to 5.5V, allowing adaptability to various power conditions and system architectures.
This DSP includes a high-resolution 12-bit ADC with 13 channels, making it suitable for smart sensing applications. It also integrates multiple timers and PWM units, providing precise control capabilities essential for motor control and digital power conversion tasks.
Housed in a compact 44-pin TQFP surface mount package with dimensions of 10mm by 10mm and a height of 1.05mm, it supports reliability across industrial temperatures ranging from -40°C to 85°C.
The dsPIC30F series strengthens embedded applications requiring motor control peripherals and codec interfaces, enhancing implementation of advanced audio and speech processing algorithms. Its inclusion of SMPS peripherals enables efficient digital power converter designs.
Operates at 30 MIPS with 16-bit data handling. Features 48kB FLASH memory and 2kB RAM for program and data storage. Supports analog interface with 13 ADC channels at 12-bit resolution. Includes 5 timers and 4 PWM units with 16-bit resolution for precise control.
Wide operating voltage spans 2.5V to 5.5V for flexible power applications. Compact 44-pin TQFP surface mount package suitable for space-constrained designs. Wide temperature range ensures operation in harsh industrial environments.
Ideal for digital power converters, motor control, speech, and audio applications. Incorporates SMPS and codec interfaces for enhanced system integration.
This product advances digital signal processing tasks in industrial, automotive, and consumer applications, providing reliable performance and flexibility. Browse EnvMart's expansive range of Digital Signal Processors to find compatible components for your embedded system projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a maximum clock frequency of 30 MIPS, allowing for efficient processing capabilities.
The dsPIC30F features 48kB of FLASH program memory, providing ample space for application development.
This model includes a 12-bit ADC with 13 channels, suitable for precise analog-to-digital conversion tasks.
It has compact dimensions of 10mm x 10mm x 1.05mm, housed in a 44-pin TQFP surface mount package.
The dsPIC30F is designed for reliable operation within a temperature range of -40°C to 85°C, suitable for industrial applications.
It includes 2kB of RAM, which supports various processing tasks and applications.
The dsPIC30F is equipped with 5 timers and 4 PWM units, both featuring 16-bit resolution for advanced control applications.
It supports a wide operating voltage range from 2.5V to 5.5V, allowing flexibility in system design.
This digital signal processor utilizes a RISC instruction set architecture, optimizing computing efficiency.
The device has a pin count of 44, suitable for various embedded applications.
It is ideal for digital power converters, motor control, and audio processing applications, enhancing system integration with its features.
The PWM units in the dsPIC30F provide a resolution of 16 bits, allowing for precise control in various applications.
