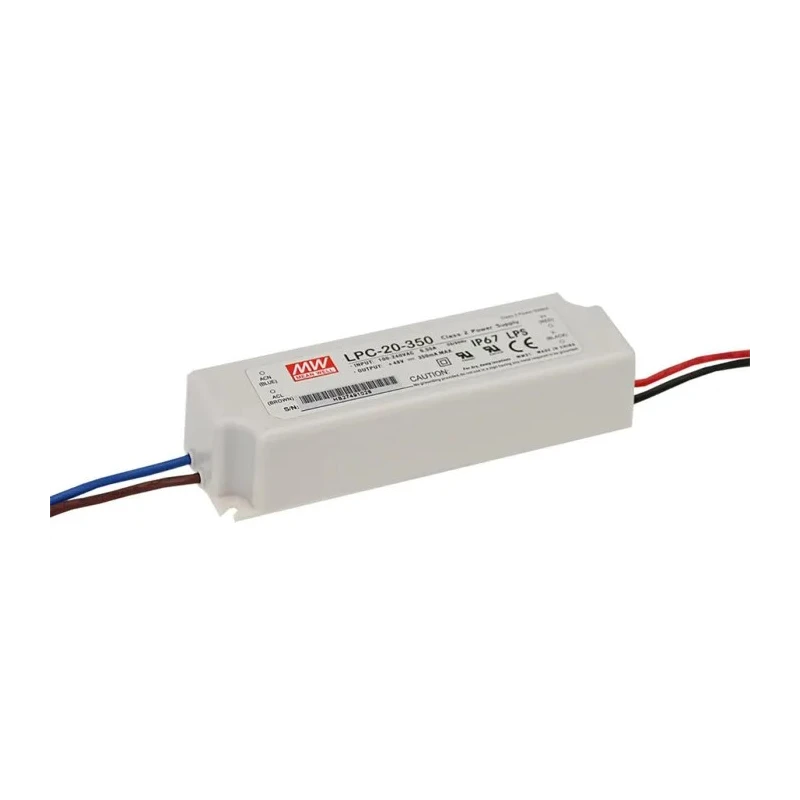

MEAN WELL IP67 1 Output LED Driver, 48V, 9V, 16.8W, Constant Current, 350mA, Panel Mount

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL IP67 1 Output LED Driver, 48V, 9V, 16.8W, Constant Current, 350mA, Panel Mount

Name: MEAN WELL IP67 1 Output LED Driver, 48V, 9V, 16.8W, Constant Current, 350mA, Panel Mount
Brand: MEAN WELL
SKU: 125056



Category LED Drivers Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Model	IP67
IP Rating	IP67
Mount Type	Panel
Series	LPC-20
Configuration	Enclosed
Sub Type	LED Driver
Operating Modes	Constant Current
Number of outputs	1
Terminal type	Wire
Maximum Output Power	16.8W
Input Voltage	264, 90, 127, 370V ac
Output Voltage	48, 9V
Power Dissipation	16.8W
Standards/Approvals	CE, UL, EN, CSA
Primary Type	AC-DC
Driver Current	350mA
MEAN WELL IP67 1 Output LED Driver, 48V, 9 V, 33.6 W, 700mA LED DriverBrand	MEAN WELL

Key Features

Features a waterproof IP67 rated enclosure suitable for indoor and outdoor use.
Designed for LED lighting and moving sign applications requiring high efficiency and reliability.
Equipped with 600mm un-terminated 2-core 18AWG input and output leads for easy installation.
Includes protections against short circuit, over-current, and over-voltage for safe operation.
Supports operation under input voltages ranging from 90V to 370V AC with surge withstand capability.
UL1310 Class 2 power unit complying with international safety standards.
High power dissipation rating of 16.8W ensures stable performance under load.
Fully regulated output with 100% full load burn-in test for durability assurance.

Product Description

MEAN WELL LPC-20-350 IP67 LED Driver is a new, enclosed constant current LED driver designed to deliver dependable power to LED lighting installations and moving signs. It supports an output voltage of 48V, 9V, and a rated power of 16.8W with a driver current of 350mA, making it suitable for various LED lighting scenarios demanding consistent current.

Designed for both indoor and outdoor environments, this LED driver features an IP67 waterproof rating that protects its internal components against dust and water ingress. It is mounted on panels and configured with wire terminal types for straightforward electrical connections, including 600mm un-terminated 2-core 18AWG input and output leads.

This model meets stringent international safety and performance standards, including CE, UL, EN, and CSA certifications, and operates within an input voltage range of 90V to 370V AC, capable of withstanding 300Vac surge inputs for 5 seconds. Its high efficiency and long lifespan are enhanced by a fully encapsulated epoxy design and a 100% full load burn-in test during manufacturing.

Waterproof IP67 enclosure suitable for challenging environmental conditions. Provides constant current output with 350mA suitable for stable LED operation. Includes short circuit, over-current, and over-voltage protections to ensure safety.

Passes UL1310 Class 2 which is recognized in Canada and the US for safety. Designed for applications involving LED lighting and dynamic signage. Compact panel mount structure for easy system integration. Compliant with EMC regulations and harmonic current standards enhancing electromagnetic compatibility.

Backed by proven reliability with MTBF to MIL-HDBK-217F standards.

This MEAN WELL LPC-20-350 LED driver is ideal for electrical engineers and system designers seeking a reliable power solution for LED lighting systems in industrial, commercial, and HVAC applications. Its robust features and approvals make it suitable for both factory and field installations requiring dependable constant current LED Drivers.
