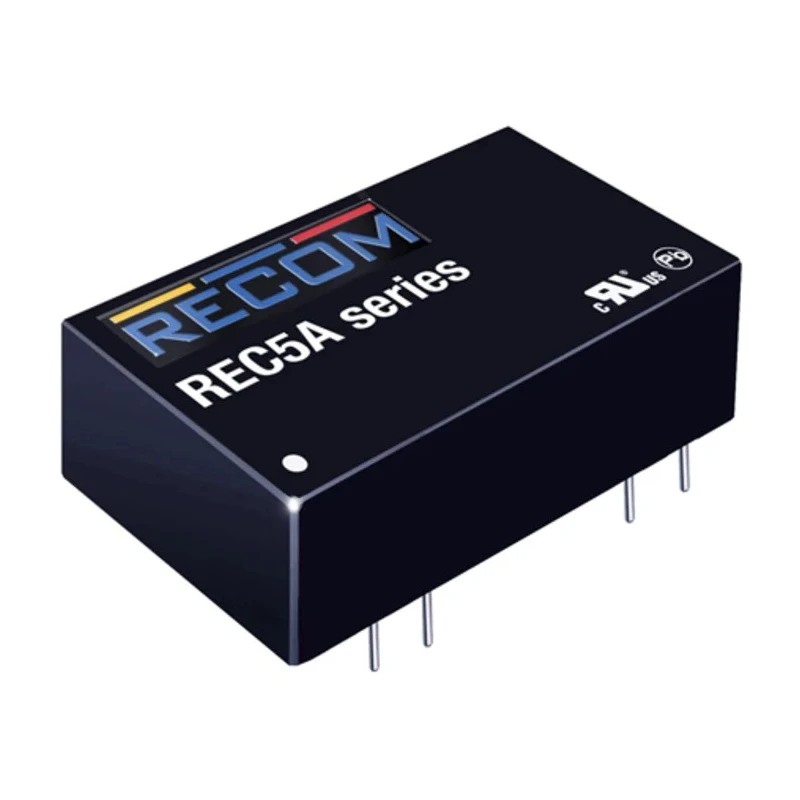

Recom 5W DC-DC Converter 5V DC 1A Input 4.5-9V Through Hole DIP-24 Package REC5A

Recom REC5A 5W DC-DC Converter model REC5A-0505SW/H2 is a robust power supply component designed for industrial and electronic applications requiring isolated, regulated DC output. It delivers a 5V DC output current of 1A from an input voltage range between 4.5V and 9V DC, housed in a through-hole DIP-24 package with dimensions 31.8mm length, 20.3mm width, and 10.2mm depth.

The converter includes a built-in Class A EMC filter, ensuring minimal electromagnetic interference without need for additional external components. It features continuous short circuit protection, supporting system reliability in harsh environments. This converter operates efficiently at approximately 73.5%, optimizing power consumption and heat dissipation.

Designed to withstand a wide operating temperature range from -40°C to 68°C, the REC5A series is suitable for demanding industrial conditions and can drive high capacitive loads without derating. With a high mean time between failures (MTBF) of 555,000 hours, it guarantees long-term operation and durability.

Its isolation voltage of 2kV DC ensures safe separation between input and output, preventing electrical faults and noise transmission. The 2:1 input voltage ratio provides flexibility for varying supply voltages. The package type DIP-24 eases integration into printed circuit boards with through-hole mount technology.

Provides isolated, regulated output with 2kV DC isolation voltage. Operates efficiently up to 73.5% with continuous short circuit protection. Wide operating temperature from -40°C to 68°C without derating. Compact DIP-24 package measuring 31.8mm x 20.3mm x 10.2mm.

Built-in Class A EMC filter to minimize electromagnetic interference. Input voltage ratio of 2:1 supports 4.5V to 9V range. High MTBF indicating reliable industrial-grade performance. No minimum load required for stable operation.

Suitable for industrial, electronic, power management, and automation systems. Manufactured in Taiwan, Province of China.

Recom’s REC5A DC-DC converter series is a cost-effective, reliable solution for regulated power supply needs in industrial, laboratory, electronics manufacturing, and automation applications. The proven design supports continuous operation in challenging environments while ensuring power quality and safety. Browse more Recom products and DC/DC Converters on EnvMart for your industrial electronics projects.
