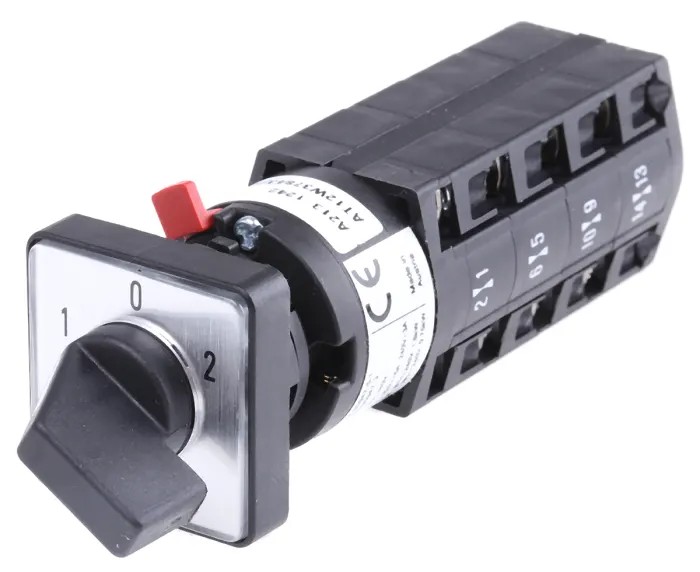

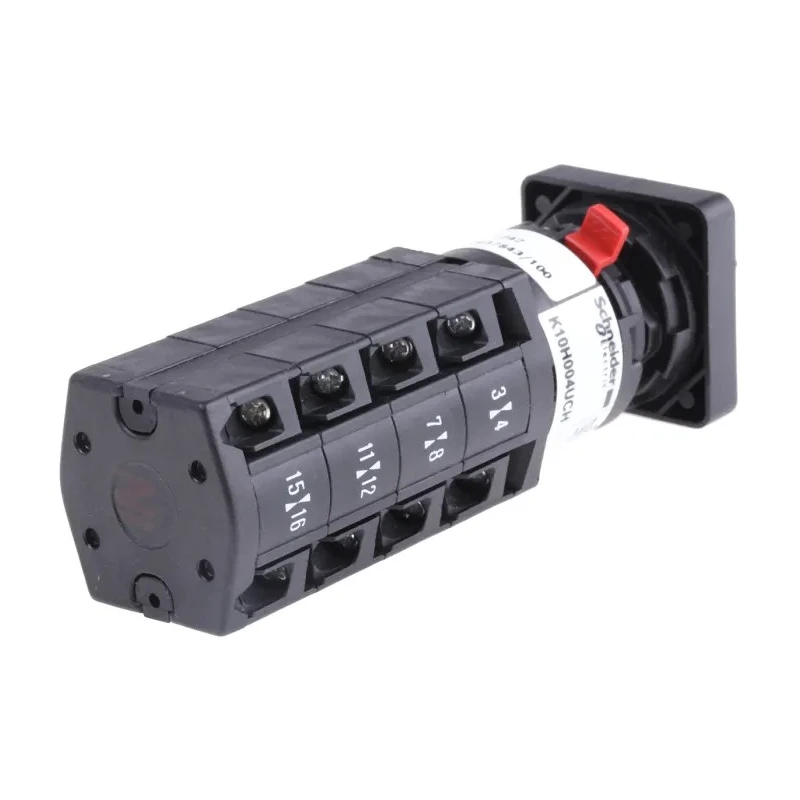

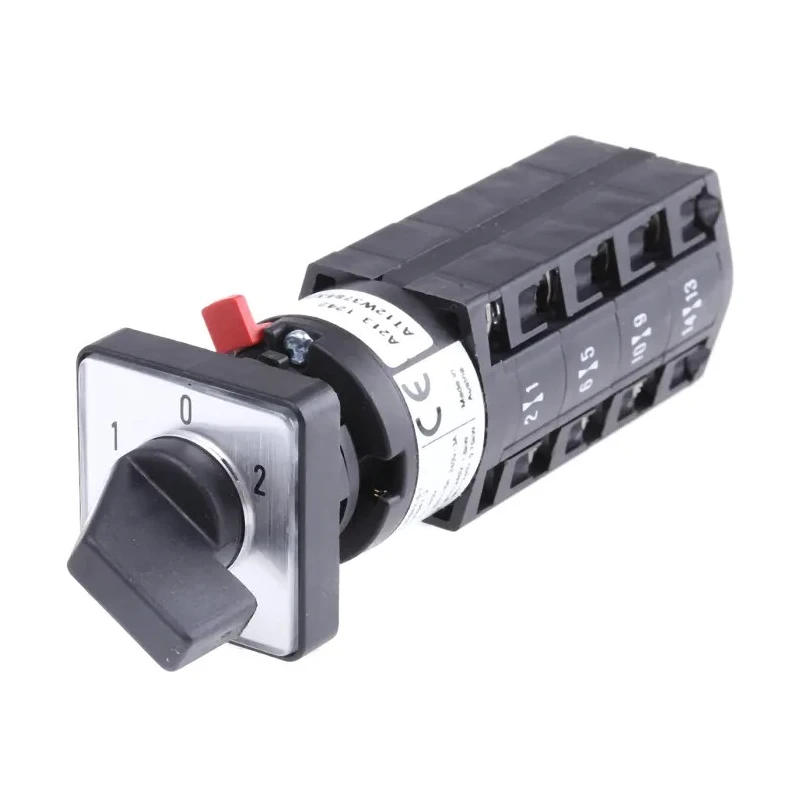

Schneider Electric 3 Position 60° Handle Actuator 10 A K10H004UCH
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Length | 30mm |
| Model | K10H004UCH |
| Depth | 112mm |
| IP Rating | IP65, IP20 |
| Width | 30mm |
| Mount Type | Front |
| Series | K10 |
| Maximum Operating Temperature | 55°C |
| Actuator Type | Handle |
| Number of Positions | 3 |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw Clamp |
| Electrical Phase | 3 |
| Mechanical Life | 1000000Cycles |
| Contact Voltage | 400V |
| Contact Current | 10A |
| Angle of Throw | 60 ° |
| Kraus & Naimer 3 Position 60 °, Rotary Knob Actuator 20 ABrand | Kraus & Naimer |
Key Features
- Durable industrial cam switch designed for rotary switching applications.
- Features handle actuator with 3 positions and 60 degree angle of throw.
- Supports a contact voltage of 400 V and operating temperature range from -20°C to 55°C.
- Front mount with screw clamp terminals ensures secure and reliable installation.
- Mechanical life rated at 1,000,000 cycles providing long-term reliability.
- IP ratings of IP65 and IP20 protect against dust and water ingress.
Product Description
Schneider Electric K10H004UCH is a high-quality industrial cam switch actuator designed for rotary switching with 3 distinct positions and a 60° handle throw angle. Rated at 10 A contact current and supporting up to 400 V contact voltage, this handle actuator suits a variety of industrial electrical control applications requiring reliable and precise switching.
The device features a front mount type with screw clamp terminal fittings for robust and secure wiring installations. Its operating temperature range from -20°C to 55°C supports use in diverse environments. The actuator is rated IP65 and IP20 ensuring strong protection against dust and moisture ingress.
This handle actuator offers a mechanical life expectancy of up to 1,000,000 cycles, underscoring its durability for long-term operational use in industrial, automation, and electrical systems. It complies with global safety and quality standards including UL 508, EN/IEC 60947-3, EN/IEC 60947-5-1, and cULus certifications.
Dimensions are compact, measuring 30 mm in width and length, with a depth of 112 mm allowing for versatile panel integration. The handle actuator's reliable performance makes it suitable for industrial automation, electrical panels, machinery controls, and similar uses requiring rotary switching with precise position control.
Durable industrial cam switch designed for rotary switching applications. Features handle actuator with 3 positions and 60 degree angle of throw. Supports a contact voltage of 400 V and operating temperature range from -20°C to 55°C.
Front mount with screw clamp terminals ensures secure and reliable installation. Mechanical life rated at 1,000,000 cycles providing long-term reliability. IP ratings of IP65 and IP20 protect against dust and water ingress.
Standards: UL 508, EN/IEC 60947-3, EN/IEC 60947-5-1, and cULus compliant. Compact dimensions: 30mm width, 30mm length, and 112mm depth.
This Schneider Electric K10H004UCH handle actuator is ideal for use in industrial automation systems, electrical distribution panels, and machinery control applications requiring precise and durable rotary switching control. Explore more Schneider Electric Rotary Switch Actuators on EnvMart for reliable electrical component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The actuator supports a contact voltage of 400 V.
It has a mechanical life rated at 1,000,000 cycles.
The operating temperature range is from -20°C to 55°C.
This handle actuator features 3 distinct positions.
The dimensions are 30 mm in width, 30 mm in length, and 112 mm in depth.
It uses screw clamp terminals for secure wiring installations.
The actuator has IP ratings of IP65 and IP20, providing protection against dust and water ingress.
It supports front mounting for installation.
The handle has an angle of throw of 60°.
It complies with UL 508, EN/IEC 60947-3, EN/IEC 60947-5-1, and cULus certifications.
The contact current rating is 10 A.
It is suitable for industrial automation, electrical panels, and machinery controls requiring rotary switching.
