Kraus & Naimer 3 Position 4 Poles Rotary Knob Actuator 10 A, IP65, IP42 CG4.A213/GBA001.EF

Free Delivery in India | Lowest Global Shipping Charges

Kraus & Naimer 3 Position 4 Poles Rotary Knob Actuator 10 A, IP65, IP42 CG4.A213/GBA001.EF

Name: Kraus & Naimer 3 Position 4 Poles Rotary Knob Actuator 10 A, IP65, IP42 CG4.A213/GBA001.EF
Brand: Kraus & Naimer
SKU: 149796
Price: 52.5 USD
Availability: InStock



Category Rotary Switch Actuator Brand Kraus & Naimer Condition New

Specifications

Country of Origin	Austria
Brand	Kraus & Naimer
Length	30mm
Model	CG4.A213/GBA001.EF
Depth	74.5mm
IP Rating	IP65, IP42
Width	30mm
Maximum Operating Temperature	55°C
Actuator Type	Rotary Knob
Number of Positions	3
Minimum Operating Temperature	-25°C
Terminal type	Screw
Number of Poles	4
Standards/Approvals	EN 50022
Mechanical Life	1000000Operations
Contact Voltage	690V
Contact Current	10A
Kraus & Naimer 3 Position 60 °, Rotary Knob Actuator 10 ABrand	Kraus & Naimer

Key Features

Operates at a contact current of 10 amperes with a contact voltage of 690 volts.
Features an IP65 and IP42 rated enclosure for robust ingress protection.
Designed for a mechanical life of 1,000,000 operations ensuring long-term reliability.
Compact dimensions with a 30 mm length, 30 mm width, and 74.5 mm depth for easy panel mounting.
Operates efficiently within a temperature range of -25°C to 55°C.
Equipped with screw-type terminals for secure electrical connections.
Conforms to EN 50022 standards for quality and safety.
Manufactured in Austria with focus on industrial applications.

Product Description

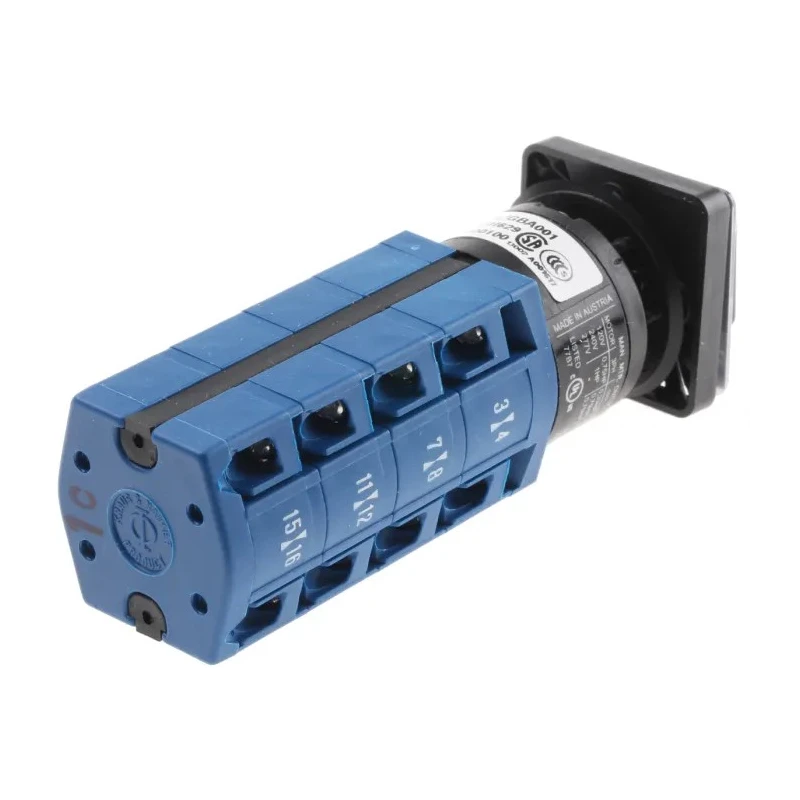

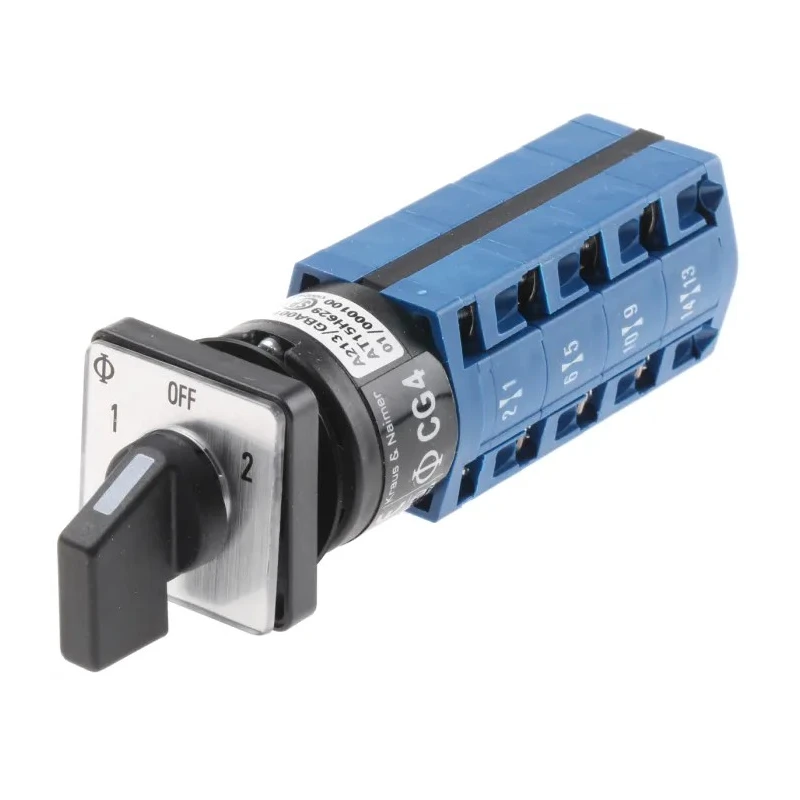

Kraus & Naimer CG4.A213/GBA001.EF is a high-quality 3-position, 4-pole rotary knob actuator designed to handle contact currents up to 10 amperes and operate at voltages up to 690 volts. This actuator is built for industrial electrical and automation uses where reliable switching and durability are critical.

The actuator features a robust rotary knob designed for ease of operation and is protected by IP65 and IP42 ingress ratings, providing effective resistance against dust and water ingress, suitable for demanding industrial environments.

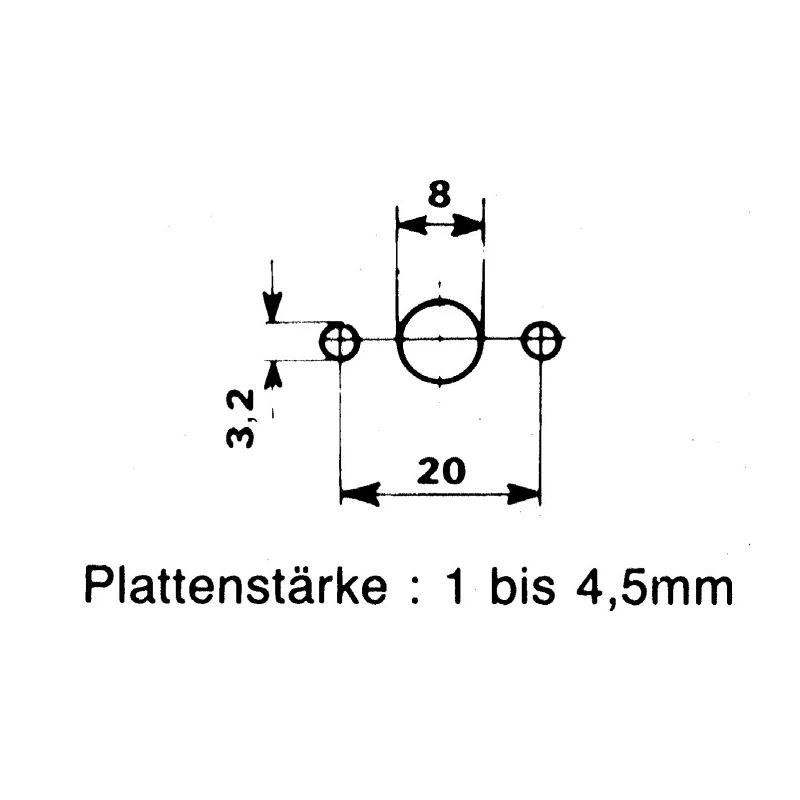

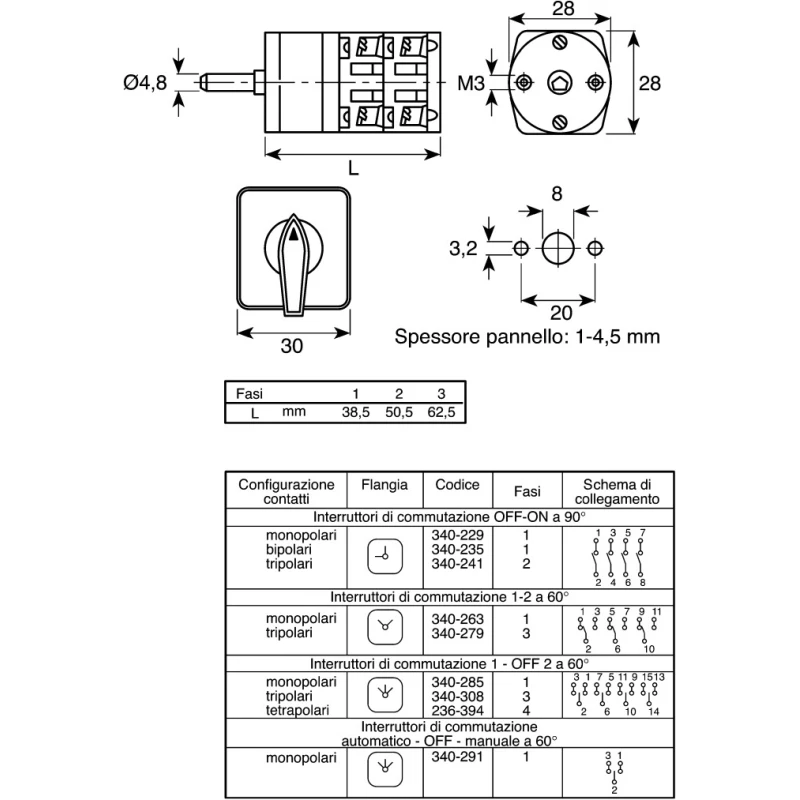

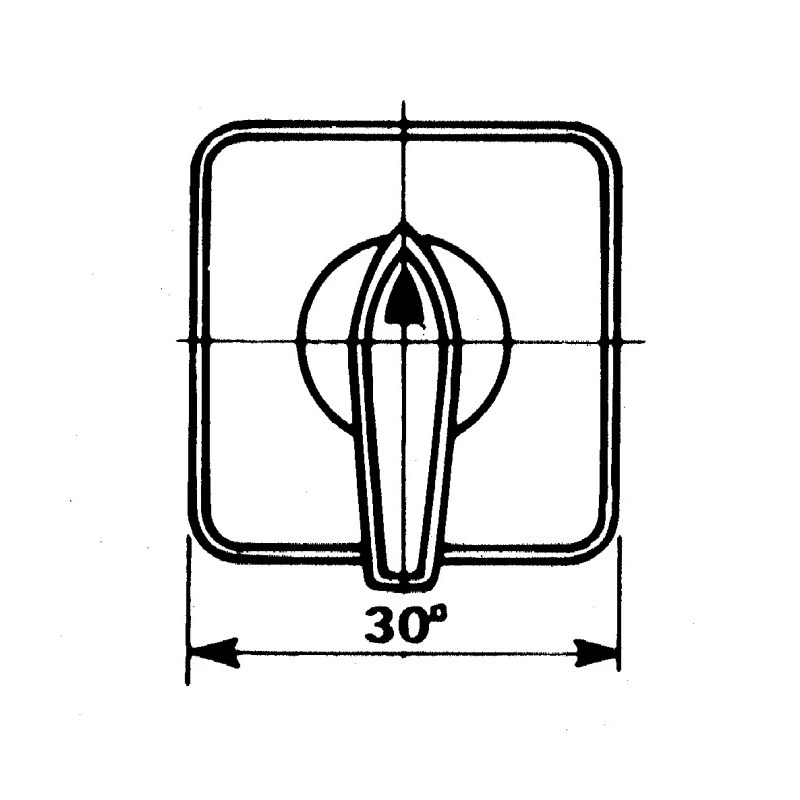

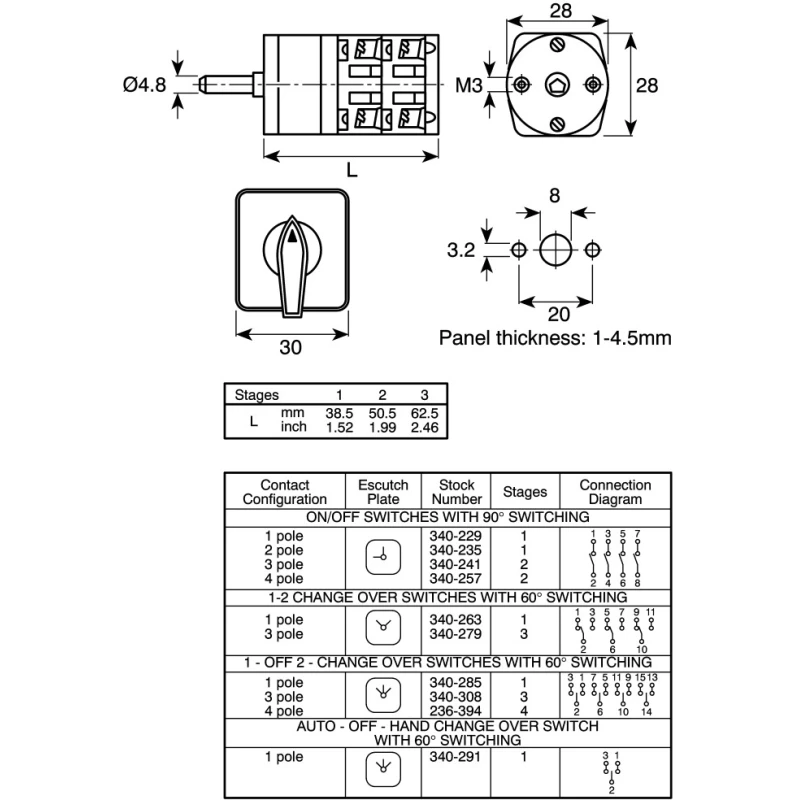

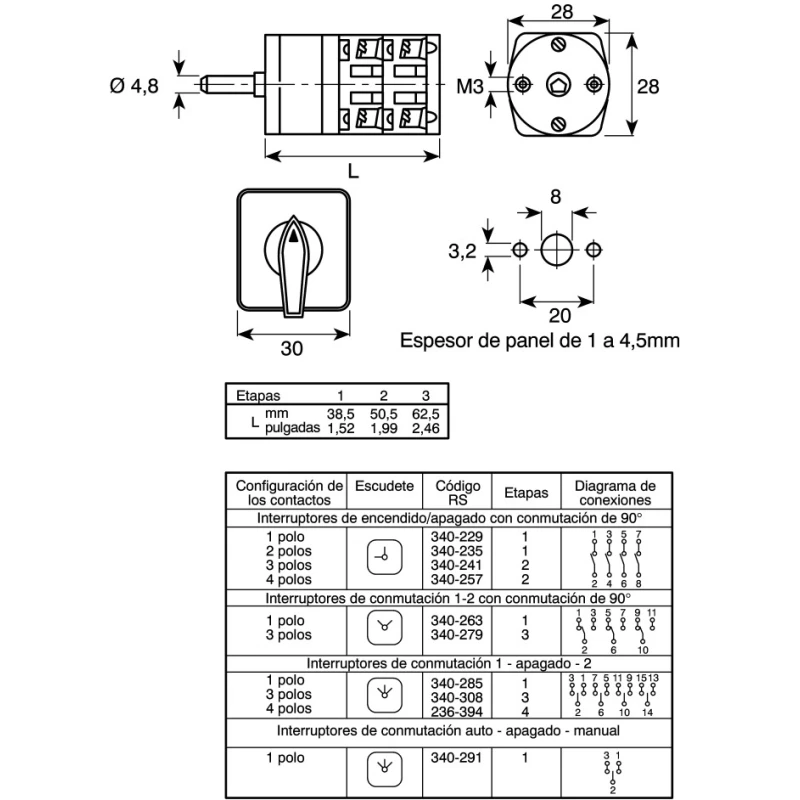

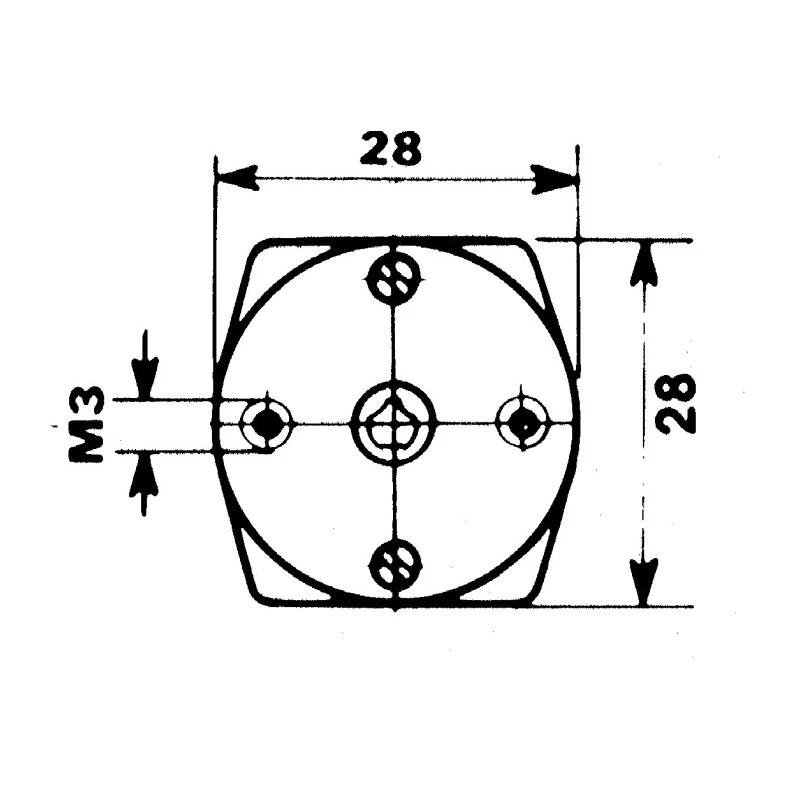

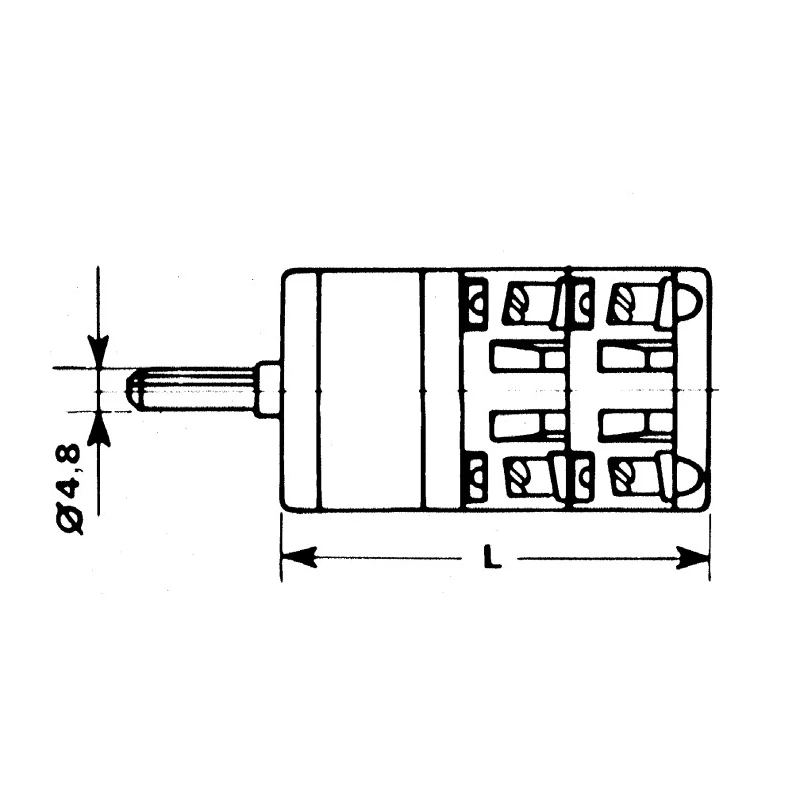

It boasts a compact form with a 30 mm square escutcheon plate and a depth of 74.5 mm, making it suitable for panel mounting without excessive installation space. The minimum operating temperature is -25°C and the maximum operating temperature is 55°C, enabling use in a wide range of ambient conditions.

Designed for longevity, the switch has a mechanical life expectancy of 1,000,000 operations, ensuring sustained performance in industrial settings. Screw terminal types provide secure and reliable electrical connections, supporting upkeep and maintenance activities easily.

The unit meets EN 50022 standards, a recognized benchmark for quality and functionality in electrical cam switches and actuators. Manufactured in Austria, it reflects high standards in production suitable for diverse sectors including industrial automation, electrical panels, and machinery control systems.

Operates at a contact current of 10 amperes with a voltage rating of 690 volts. Protected by IP65, IP42 ratings for enhanced environmental resistance. Compact dimensions of 30 mm length and width, 74.5 mm depth. Mechanical life of 1,000,000 operations for reliability.

Operating temperature range from -25°C to 55°C. Screw terminal connections for secure electrical contacts. Compliance with EN 50022 industrial standards. Manufactured in Austria for assured quality.

This rotary knob actuator is ideal for applications in electrical switching, industrial automation, machinery control, and panel installations requiring reliable and long-lasting rotary switching solutions.
