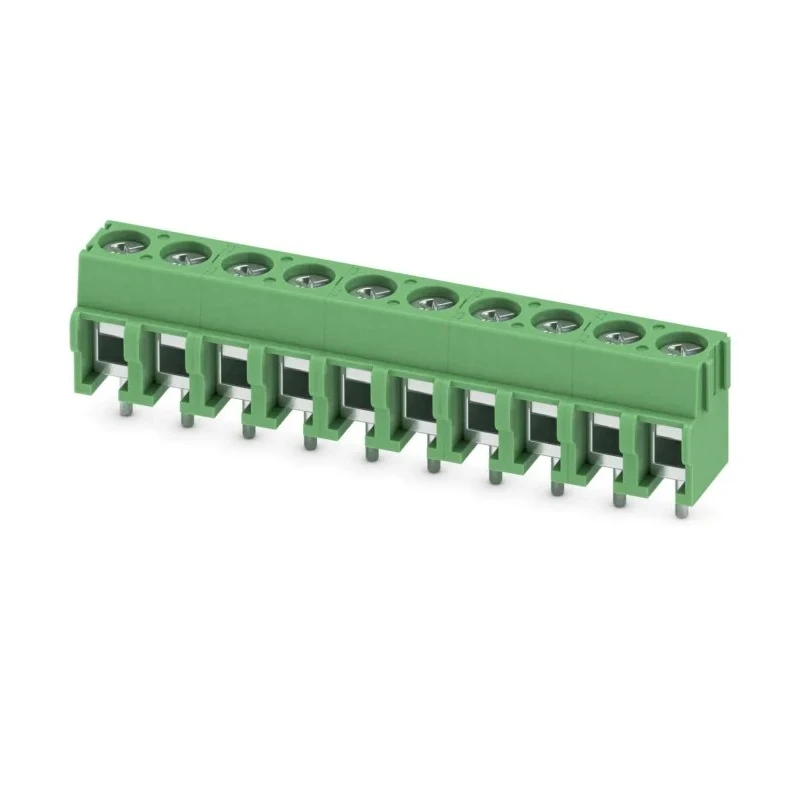

Phoenix Contact PT 1.5/10-5.0-H Series Horizontal PCB Terminal Block, 10 Contacts, 5 mm Pitch, Polyamide Housing 1935242
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 400V |
| Brand | Phoenix Contact |
| Orientation | Horizontal |
| Current | 17.5A |
| Model | 1935242 |
| Housing Material | Polyamide |
| Series | PT 1.5/10-5.0-H |
| Number of Rows | 1 |
| Pitch | 5mm |
| Number of Contacts | 10 |
| DIN EN 60512-5-2 | 2003-01 |
Key Features
- Constructed with durable polyamide housing for robust electrical insulation.
- Rated for a maximum current of 17.5 A and voltage of 400 V.
- Designed as a single-row terminal block suitable for horizontal PCB mounting.
- Offers high terminal block capacity with rectangular spacing ensuring easy conductor connection.
- Compatible with solid and flexible wires ranging from 0.2 mm² to 2.5 mm² (26-14 AWG).
- Ensures easy and repeated connecting with flexible conductor protection.
- Features a pitch of 5 mm and PCB hole diameter of 1.3 mm for secure mounting.
- Meets DIN EN 60512-5-2 standard with flammability rating UL 94V-0.
Product Description
Phoenix Contact 1935242 PT 1.5/10-5.0-H Series Horizontal PCB Terminal Block is engineered for reliable electrical connections with a compact and robust design. This PCB terminal block features a horizontal orientation in a single-row configuration with 10 contacts spaced at a 5 mm pitch, making it ideal for high-density PCB applications.
The polyamide housing provides excellent electrical insulation and durability under demanding conditions. Rated for 17.5 amperes and 400 volts, this terminal block supports a variety of conductor sizes, accepting both solid and flexible wires from 0.2 mm² up to 2.5 mm² (26-14 AWG), ensuring versatility across multiple PCB designs.
This terminal block supports a PCB hole diameter of 1.3 mm and is built in compliance with DIN EN 60512-5-2 standards and UL 94V-0 flame retardant classification, confirming its safety and reliability in industrial electrical systems. The rectangular terminal spacing enhances terminal block capacity, allowing efficient space utilization on PCBs without compromising connection quality.
Designed for easy conductor protection and repeated connections, it incorporates plus/minus screws to ensure secure terminal contact and maintenance convenience. Originating from Germany, Phoenix Contact assures premium manufacturing standards.
Durable polyamide housing for insulation and robustness. Rated for 17.5 A current and 400 V voltage. Single-row horizontal configuration with 10 contacts. 5 mm pitch and 1.3 mm PCB hole diameter for secure mounting. Supports wire sizes from 0.2 mm² to 2.5 mm² (26-14 AWG).
Meets DIN EN 60512-5-2 and UL 94V-0 standards. Facilitates easy and repeated conductor connections. Rectangular terminal block spacing for high capacity. Manufactured in Germany ensuring quality assurance.
This PCB Terminal Block is suitable for industrial, manufacturing, electrical assembly, and prototyping applications requiring reliable and compact PCB connections. Explore more Phoenix Contact PCBs and connectors on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block is rated for a maximum current of 17.5 A and a maximum voltage of 400 V.
The terminal block features a pitch of 5 mm and includes 10 contacts in a single-row configuration.
It is compatible with solid and flexible wires ranging from 0.2 mm² to 2.5 mm² (26-14 AWG).
The PCB hole diameter required for secure mounting is 1.3 mm.
The housing is constructed from polyamide, providing excellent electrical insulation.
It meets the DIN EN 60512-5-2 standard and has a flammability rating of UL 94V-0.
It features plus/minus screws to ensure secure terminal contact and facilitate easy and repeated connections.
This model is designed for horizontal orientation, suitable for high-density PCB applications.
The terminal block is manufactured in Germany, ensuring adherence to premium manufacturing standards.
The series name is PT 1.5/10-5.0-H, indicating its specific design and configuration.
It is suitable for industrial, manufacturing, electrical assembly, and prototyping applications requiring reliable PCB connections.
This terminal block has a single-row configuration, which enhances its compact design for PCB use.
