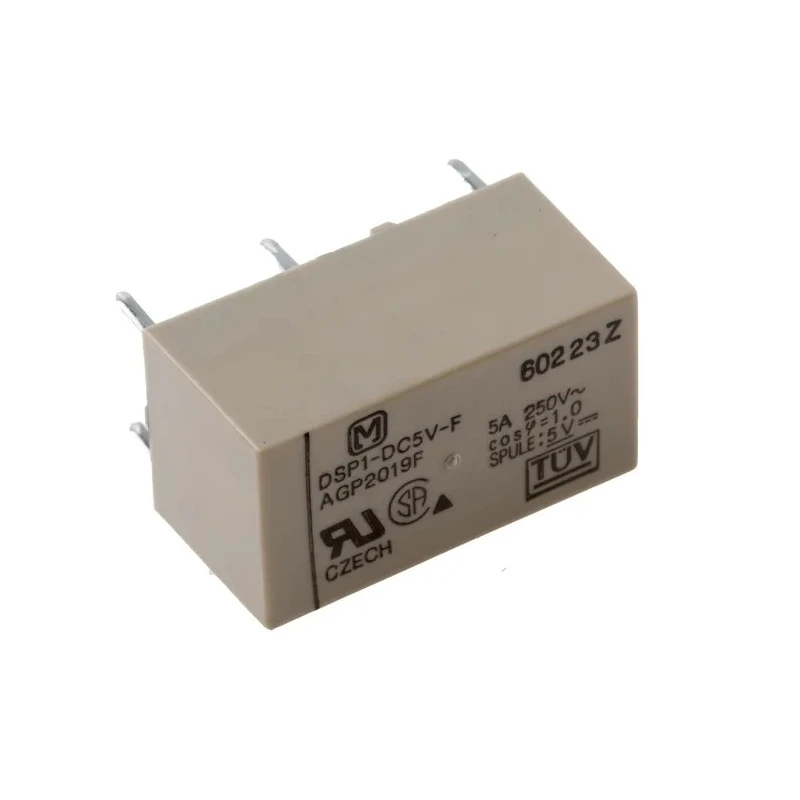

Panasonic DIN Rail Power Relay 5V DC Coil 5A Switching Current DPST DSP15FD

Panasonic DSP15FD is a high-performance DIN Rail Power Relay featuring a 5V DC coil and a 5A switching current with DPST contact configuration. Built for reliability and precision, this relay is ideal for various industrial, automation, and electronic control applications.

It is designed for DIN Rail mounting with through-hole terminals, making it easy to integrate into electrical panels and industrial control systems. The relay has a coil resistance of 83Ω and a low coil power consumption of 300mW, ensuring efficient and low-energy operation.

The contacts are gold plated, which provides excellent conductivity and corrosion resistance to maintain consistent switching performance over time. The relay operates effectively within a broad temperature range from -40°C to 65°C, enhancing its suitability for demanding environments.

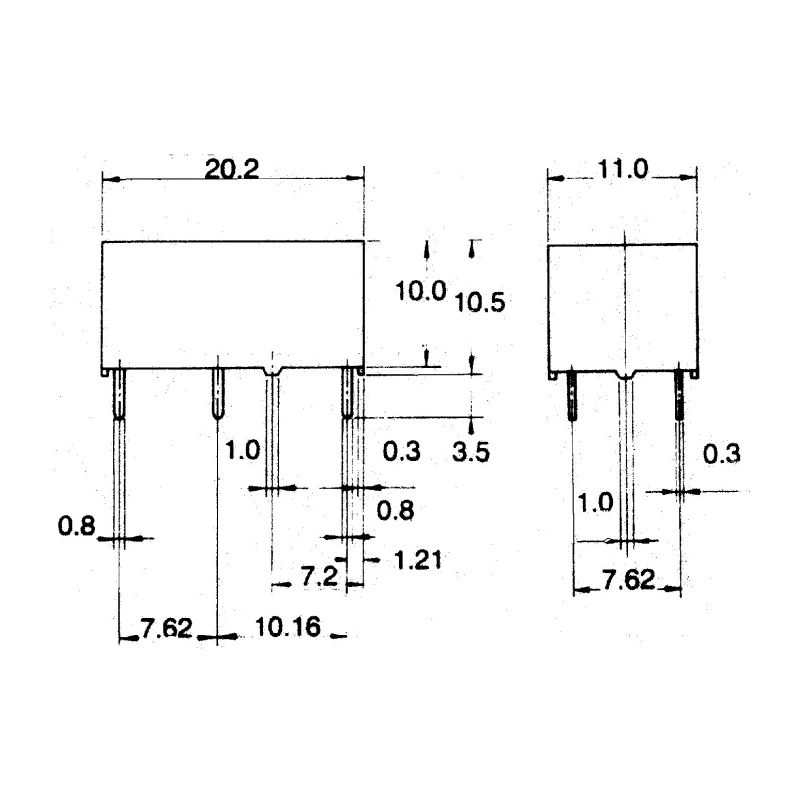

With compact dimensions of 20.2mm in length, 14mm in width, and 10.5mm in height, it allows optimized space utilization within equipment. The sealed construction supports automatic washing, preventing contamination and ensuring durability.

Typical use cases include office and industrial electronic devices, temperature controllers, programmable logic controllers (PLCs), and measurement instruments. Its high switching capacity and reliability make it suitable for various control and automation systems.

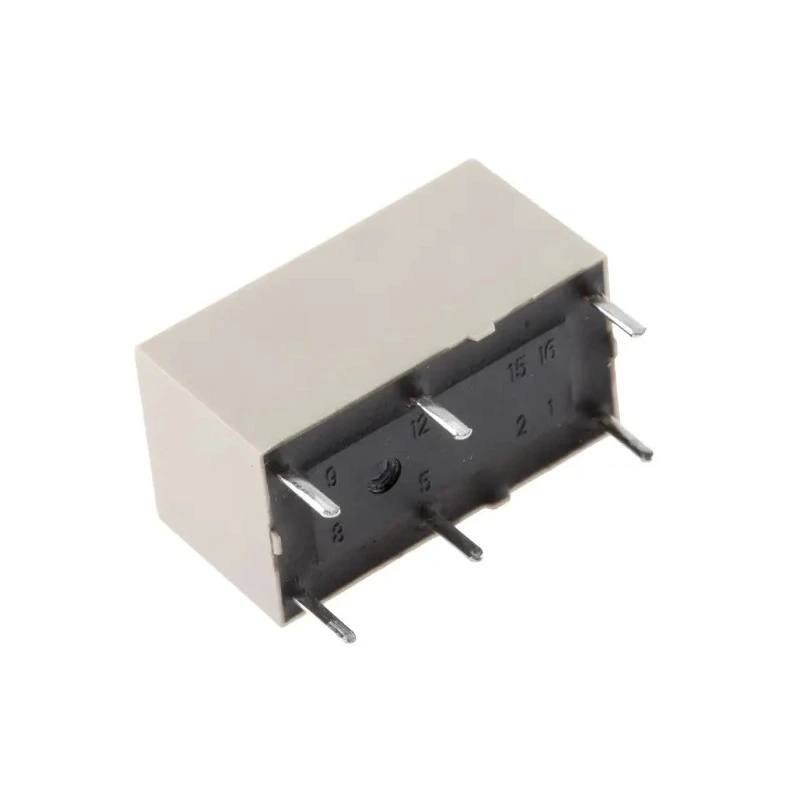

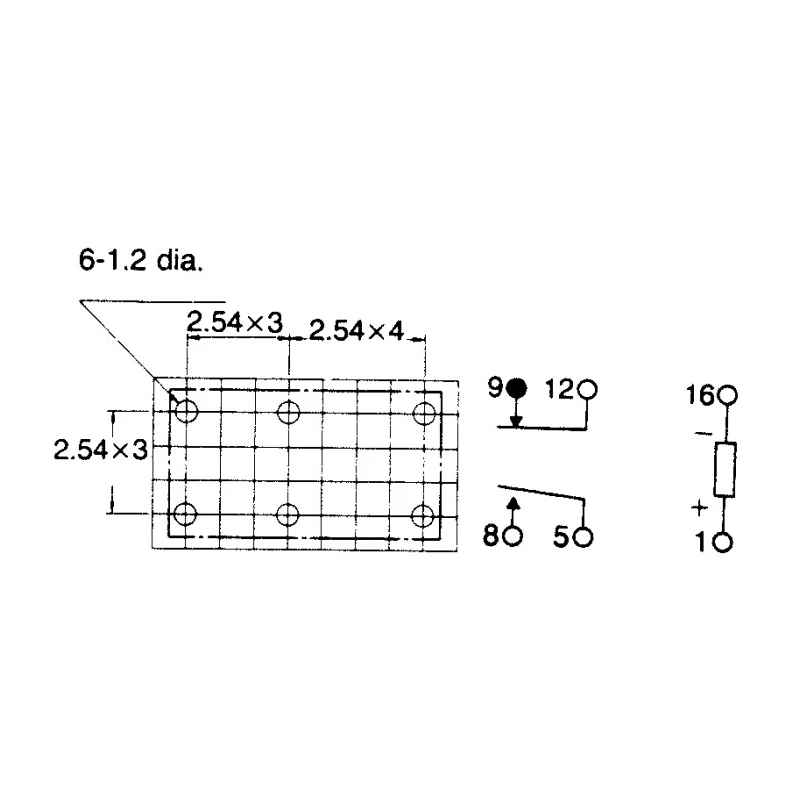

The relay features a miniature DIN Rail mount with through-hole terminals for secure installation. Coil resistance is 83 ohms with a coil power of 300mW ensuring efficient operation. Gold-plated contacts provide high reliability and low contact resistance.

Operating temperature range spans from -40°C up to 65°C for durability in harsh environments. Compact dimensions measuring 20.2mm length, 14mm width, and 10.5mm height allow for space-saving design. The sealed construction permits automatic washing, enhancing longevity and performance.

Applications include office and industrial electronic devices, temperature controllers, PLCs, and measuring instruments.

For those seeking reliable and compact power relays for automation or electronic device control, the Panasonic DSP15FD combines robust construction with high switching performance. Browse further Panasonic Power Relays and related products to meet diverse electro-industrial needs.
