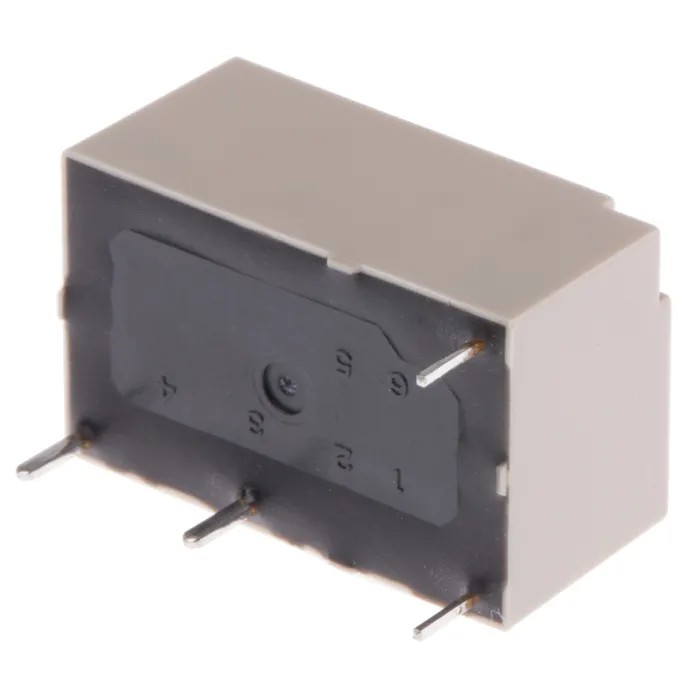

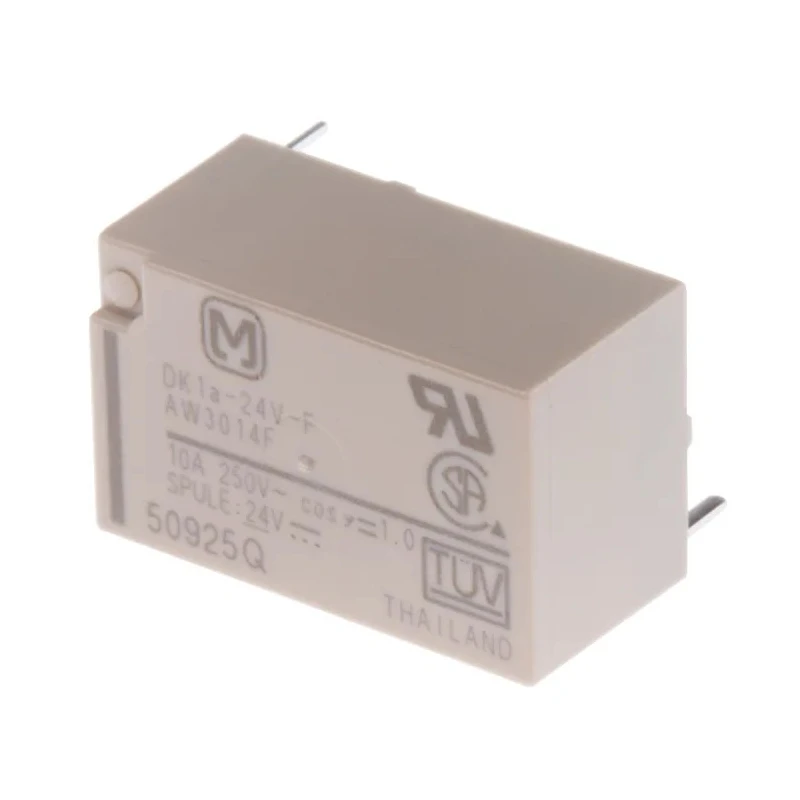

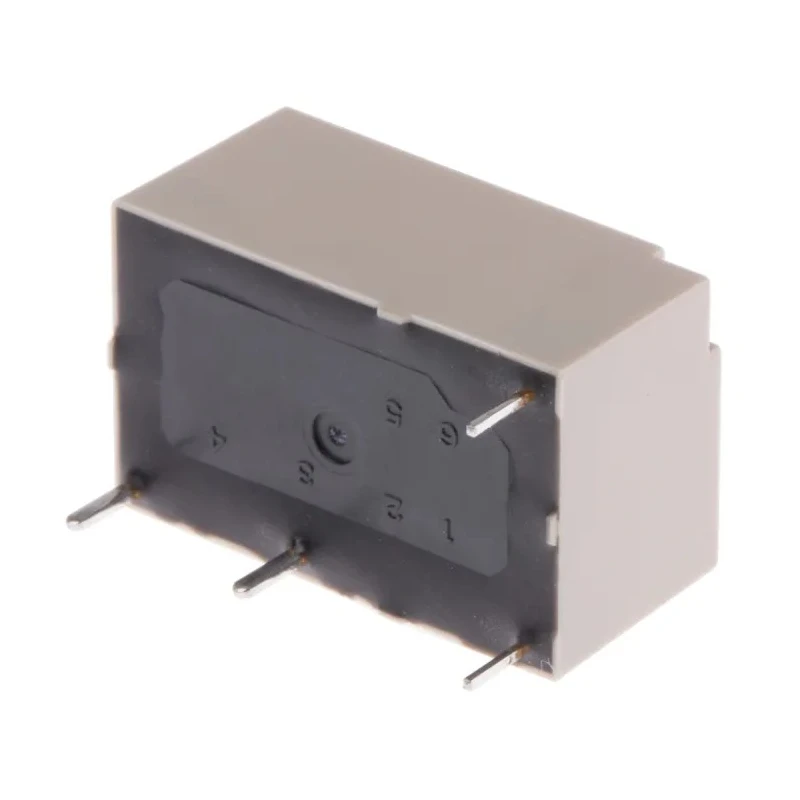

Panasonic DIN Rail Power Relay 24V DC Coil 10A Switching Current SPST DK1A-24V-F

Panasonic DK1A-24V-F DIN Rail Power Relay is a compact, high-capacity miniature power relay featuring a 24V DC coil and 10A switching current with SPST contact configuration. It is ideal for a wide range of industrial and commercial electrical applications including power switching, industrial machinery controls, PLCs, temperature regulation systems, timers, and home appliances.

The relay is designed with a sealed construction to enable automatic washing, enhancing reliability and longevity in harsh environments. It has a high sensitivity with a nominal operating power of 200 mW, ensuring efficient performance with minimal power consumption.

One of its key features is a high surge withstand voltage of 10,000V between contact and coil, which protects the relay in demanding electrical conditions. The contacts are gold plated, providing excellent conductivity and corrosion resistance for reliable switching over an extended lifespan.

The relay supports a wide operating temperature range from -40°C to 65°C, making it suitable for use in various environmental conditions. It is mounted conveniently on DIN rails and uses through-hole terminal types for secure connections. The physical dimensions are compact, measuring 20mm in length, 14mm in width, and 10mm in height, making it space efficient.

This product complies with RoHS standards, ensuring it meets environmental safety regulations. Overall, the Panasonic DK1A-24V-F relay combines durability, high performance, and compact design, recommended for industrial automation, electrical control panels, HVAC systems, manufacturing units, and other technical applications.

The relay features a compact sealed construction for automatic washing. It offers high sensitivity with nominal 200 mW operating power. Designed for high surge withstand voltage of 10,000V between contacts and coil. Suitable for power switching, industrial machinery, PLCs, temperature controllers, and timers.

The contact material is gold plated for enhanced conductivity and reliability. Operating temperature range is from -40°C to 65°C. Mounting is designed for DIN Rail installation with through hole terminals. The relay dimensions are approximately 20mm length, 14mm width, and 10mm height.

Coil resistance is 2.9 kΩ ensuring stable coil operation. RoHS compliant and manufactured to high standards ensuring durability and safety. Explore more products in Power Relays category at EnvMart for reliable electrical components tailored to industrial and commercial needs.
