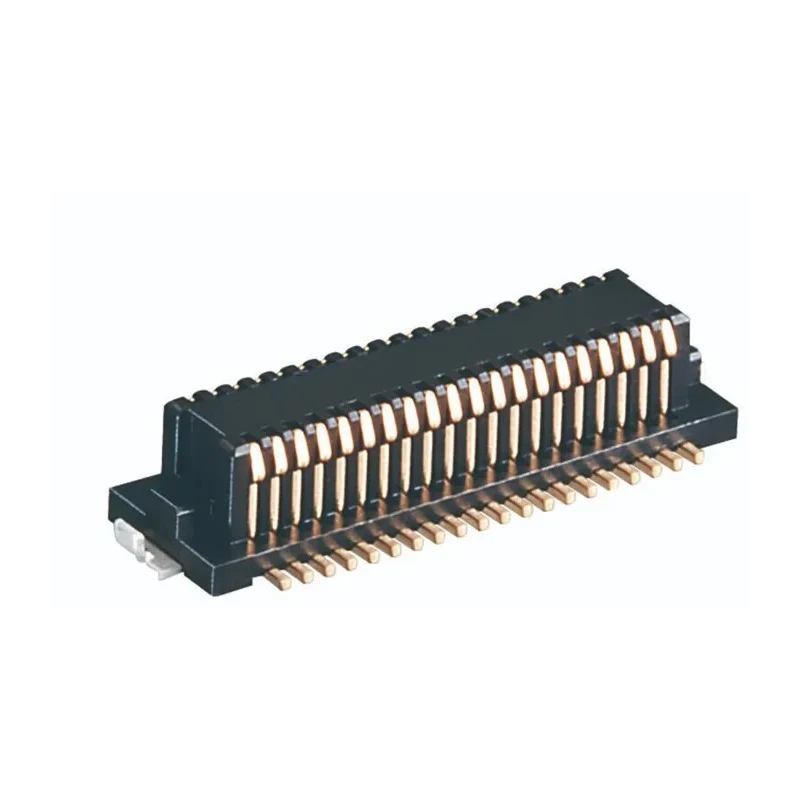

Hirose DF12 Series Straight Surface PCB Socket 20-Contact 2 Row 0.5 mm Pitch Solder

Hirose DF12NB(3.0)-20DS-0.5V(51) PCB Socket is a precision-engineered connector designed for surface mounting applications requiring ultra-miniature, high-density board to board connections. It features a 0.5 mm contact pitch with 20 contacts arranged in two rows offering reliable signal transmission and mechanical stability.

The socket's polyamide housing is rated UL94V-0 for flame retardancy, ensuring safety in demanding electronic and industrial environments. Gold plated copper contacts guarantee excellent conductivity, corrosion resistance, and durability required for long-term operation.

This component supports a current capacity of 300 mA and operates at voltages up to 50 V, making it suitable for various low power electronic applications. Its operating temperature range spans from -55°C to 125°C, allowing it to withstand extreme thermal conditions commonly experienced in industrial, manufacturing, and laboratory equipment.

The design incorporates board guide bosses and metal fittings to enhance solder retention, reducing assembly errors and improving manufacturing efficiency. With a modest stacking height of 3 mm, it can be integrated into compact PCB layouts where space is at a premium.

Applications include electronic devices, instrumentation, telecommunications, and other industries where reliable, compact PCB connections are critical. The Hirose DF12 Series PCB Socket facilitates secure, high density interconnects and is part of a broader family of connectors offering various stacking heights to meet diverse design requirements.

Offers a compact 0.5 mm contact pitch suitable for ultra-miniature board to board connections. Constructed with a polyamide housing ensuring UL94V-0 flame resistance. Gold plated copper contacts provide reliable conductivity and corrosion resistance.

Supports a current rating of 300 mA and voltage rating of 50 V for efficient signal integrity. Designed with board guide bosses and metal fittings for enhanced solder retention. Connector system supports board-to-board application with straight orientation.

Operating temperature ranges from -55°C to 125°C ensuring performance in harsh environments. Stacking height of 3 mm allows for varied PCB design configurations. Connector suitable for industrial and electronic equipment assembly requiring high density connections.

For buyers requiring ultra-small form factor connectors with high reliability and flexibility, the Hirose DF12 Series PCB Socket is an ideal choice. Explore more PCB Sockets and related Hirose components on EnvMart.
