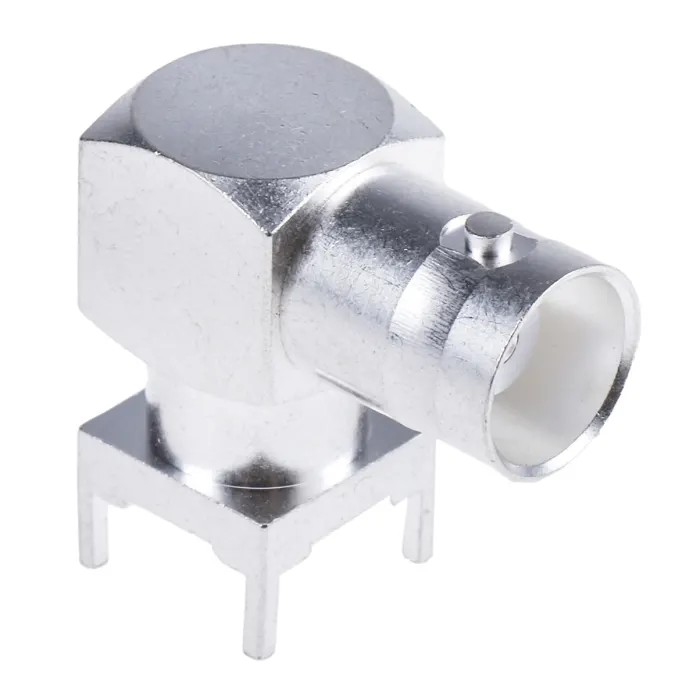

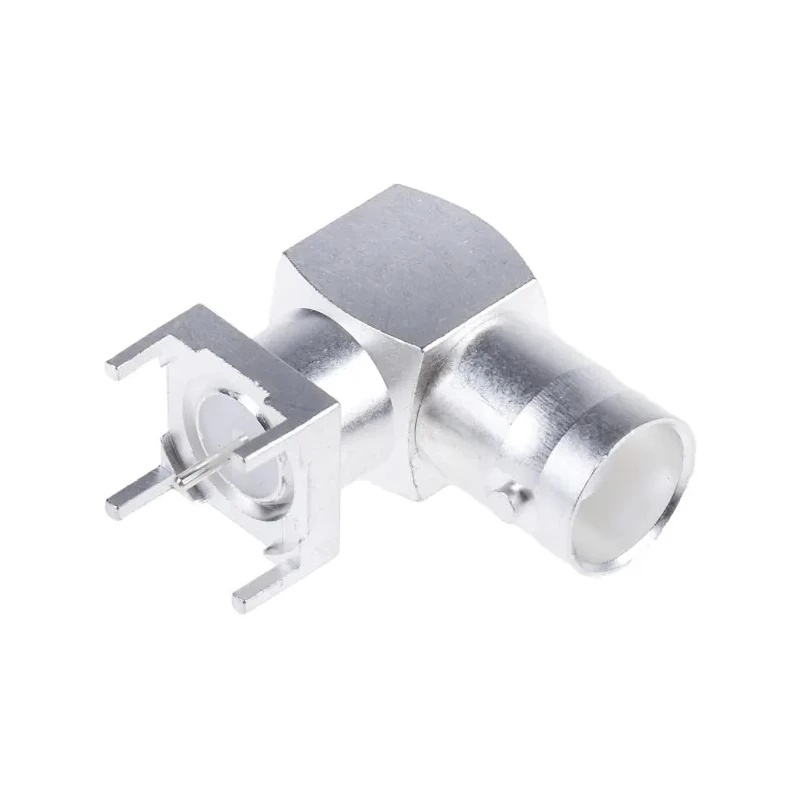

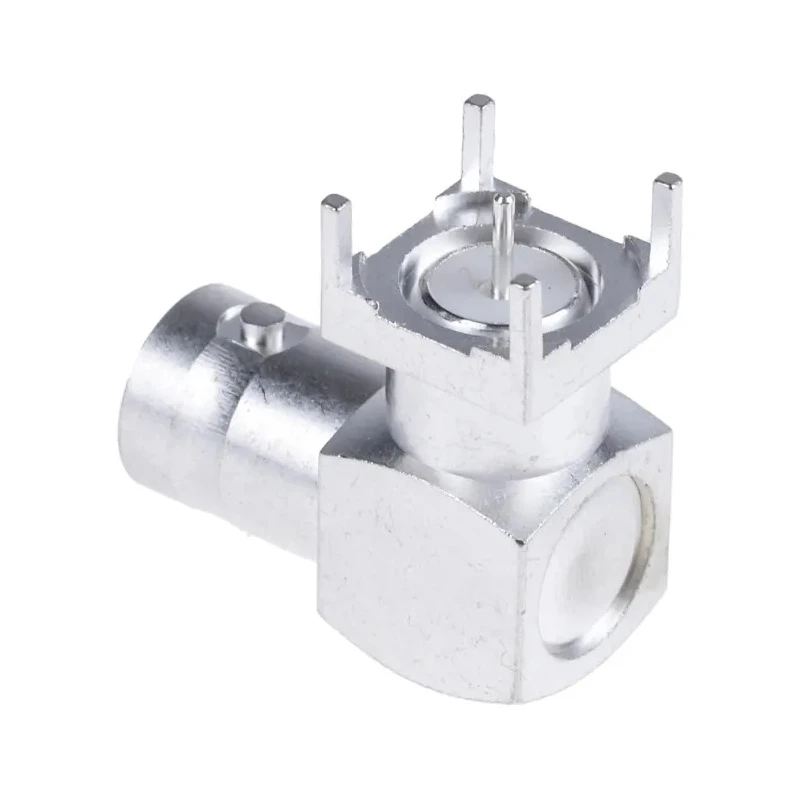

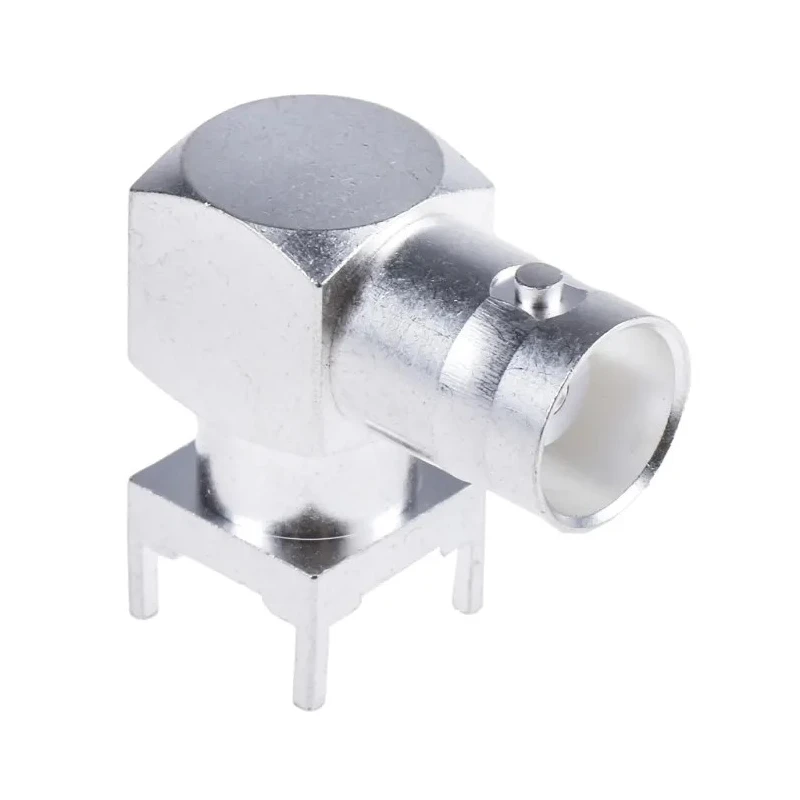

RS PRO Coaxial Connector PCB Female BNC, 50 Ω, Right Angle Body Through Hole 546-4516
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Right Angle |
| Model | 546-4516 |
| Mount Type | PCB |
| Operating Frequency | 4GHz |
| Contact Material | Copper |
| Series | RS PRO |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Silver |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Silver |
| • Insulation material | PTFE |
| RS PRO Coaxial Connector PCB Female BNC, 50 Ω, Right Angle Body SolderBrand | RS PRO |
Key Features
- Features a robust silver plated brass body for durable, heavy-duty use.
- Silver plated contacts ensure excellent electrical conductivity and efficiency.
- Designed for 4 GHz operating frequency suitable for high frequency RF applications.
- Includes PTFE insulation material offering high reliability and thermal stability.
- Right angle orientation facilitates convenient PCB mounting in tight spaces.
- Through hole termination enables secure wire-to-board connection.
- Compatible with a wide range of applications including antenna connections and telecom equipment.
- Supports medical, test, satcom, and CCTV equipment requiring secure BNC connections.
Product Description
RS PRO 546-4516 is a high-quality Coaxial Connector PCB Female BNC with 50 Ω impedance and a right angle body designed for through hole PCB mounting applications. Manufactured with a silver plated brass body and silver contacts, it ensures superior conductivity and mechanical robustness.
The connector supports an operating frequency up to 4 GHz, making it suitable for various RF signal applications including telecommunications, antennas, medical devices, test equipment, satellite communications, and CCTV systems. Its PTFE insulator enhances insulation reliability and thermal performance.
BNC connectors are known for their secure bayonet coupling mechanism, and this RS PRO model maintains that standard with a right angle orientation to facilitate compact PCB layout designs. The through hole termination type ensures a sturdy wire-to-board connection that is essential in industrial and commercial electronics manufacturing.
Robust silver plated brass body ensures durability and corrosion resistance. Silver-plated female contacts enhance conductivity and signal integrity. Supports frequencies up to 4 GHz for high-performance RF applications.
Insulation material is PTFE for excellent electrical and temperature stability. Right angle body design aids in compact PCB assembly layouts. Through hole termination method ensures reliable mechanical and electrical connection.
Ideal for use in industrial, telecommunications, medical, and surveillance equipment.
This RS PRO Coaxial Connector is manufactured in Taiwan, Province Of China and meets industry standards required for demanding electronic assemblies. It is part of the RS PRO series, known for rigorously tested and dependable components.
Explore more Coaxial Connectors and RF components in the Electronics & Electricals category at EnvMart to find compatible parts for your electronic design and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports an operating frequency of up to 4 GHz, making it suitable for high-performance RF applications.
It features a through hole termination type, ensuring a secure wire-to-board connection.
The connector has an impedance rating of 50 Ω, which is standard for many RF applications.
The body is made of silver plated brass, and the contacts are silver plated copper, providing excellent electrical conductivity.
It operates within a temperature range of -65°C to 165°C, allowing it to function effectively in various environments.
This model features a right angle orientation, which facilitates convenient PCB mounting in tight spaces.
This connector is manufactured in Taiwan, Province Of China.
It uses PTFE as the insulation material, which enhances reliability and thermal stability.
It is compatible with a wide range of applications including telecommunications, antennas, medical devices, test equipment, satellite communications, and CCTV systems.
The connector has a female contact gender, which is standard for BNC connectors.
This model is part of the RS PRO series, known for rigorously tested components in electronics.
It is classified as a standard size connector, suitable for typical PCB applications.
