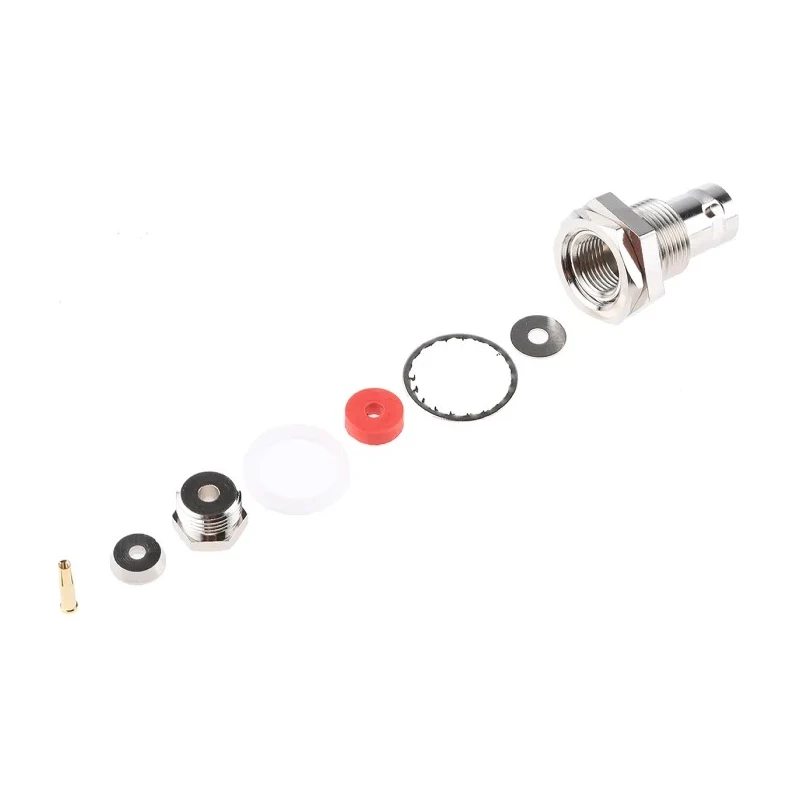

RS PRO Coaxial Connector Panel Mount Female BNC 75 Ω Straight Body Clamp 546-3973
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 546-3973 |
| Mount Type | Panel Mount |
| Operating Frequency | 1GHz |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Clamp |
| Maximum Operating Temperature | 85°C |
| Cable Type | RG179E |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| RS PRO, jack Panel Mount, 75Ω, Solder Termination, Straight BodyBrand | RS PRO |
Key Features
- Panel mount type ensures secure installation in electronic devices.
- Features a female connector gender suitable for RG179E cable type.
- Operates efficiently up to 1 GHz frequency.
- Built with brass contact material and gold plating for enhanced conductivity and corrosion resistance.
- Nickel-plated body offers durability and protection against environmental factors.
- Wide operating temperature range from -65°C to 85°C for versatile usage.
- Standard size with bulkhead and straight orientation for easy integration.
- Clamp termination type provides stable and secure cable connection.
Product Description
RS PRO 546-3973 Coaxial Connector is a high-quality panel mount female BNC connector with 75 Ω impedance, designed to provide reliable and stable connections in electronic, industrial, and communication equipment.
Constructed with a brass contact and gold plating, this connector ensures excellent electrical conductivity and resistance to corrosion, while the nickel-plated body adds mechanical strength and durability.
The connector supports RG179E cable type and maintains signal integrity up to an operating frequency of 1 GHz. Its clamp termination type and straight orientation allow for straightforward installation and dependable performance.
It operates across a broad temperature range from -65°C to 85°C, making it suitable for demanding environments commonly found in industrial, manufacturing, and laboratory settings.
This RS PRO connector's panel mount bulkhead design simplifies mounting on panels, providing secure mechanical and electrical connections for signal transmission applications. Panel mount type ensures secure installation in electronic devices.
Supports RG179E cable with female connector gender. Operates efficiently at frequencies up to 1 GHz. Gold-plated brass contacts improve conductivity and corrosion resistance. Nickel-plated body for enhanced durability. Wide temperature range from -65°C to 85°C.
Clamp termination provides secure cable connection. Straight orientation for convenient integration. Normal polarity and RS PRO series quality assurance. This Coaxial Connector is ideal for electronics, telecommunications, industrial systems, and laboratory equipment requiring reliable RF connections.
Explore more RS PRO connectors and electronic components at EnvMart for comprehensive project solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this coaxial connector is 1 GHz, ensuring reliable signal transmission in various applications.
This model is compatible with RG179E cable type, making it suitable for specific electronic and communication applications.
The operating temperature range for this connector is from -65°C to 85°C, allowing it to function effectively in demanding environments.
This connector features brass contact material with gold plating for enhanced conductivity, while the body is nickel-plated for added durability.
This model uses a clamp termination type, which provides a stable and secure connection for the cable.
The orientation of this coaxial connector is straight, facilitating easy integration into electronic devices and systems.
The impedance rating of this connector is 75 Ω, which is standard for many RF applications.
This connector is designed for panel mount installation, ensuring secure mechanical and electrical connections in various applications.
The connector gender is female, suitable for connecting with compatible male connectors in RF applications.
This coaxial connector is manufactured in Taiwan, adhering to the specifications set by the RS PRO brand.
This connector belongs to the RS PRO series, known for its quality in electronic components.
This connector is suitable for applications in electronics, telecommunications, industrial systems, and laboratory equipment that require reliable RF connections.
