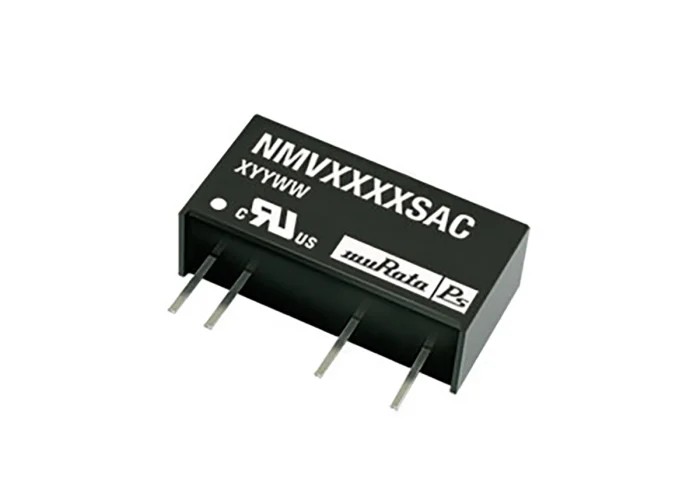

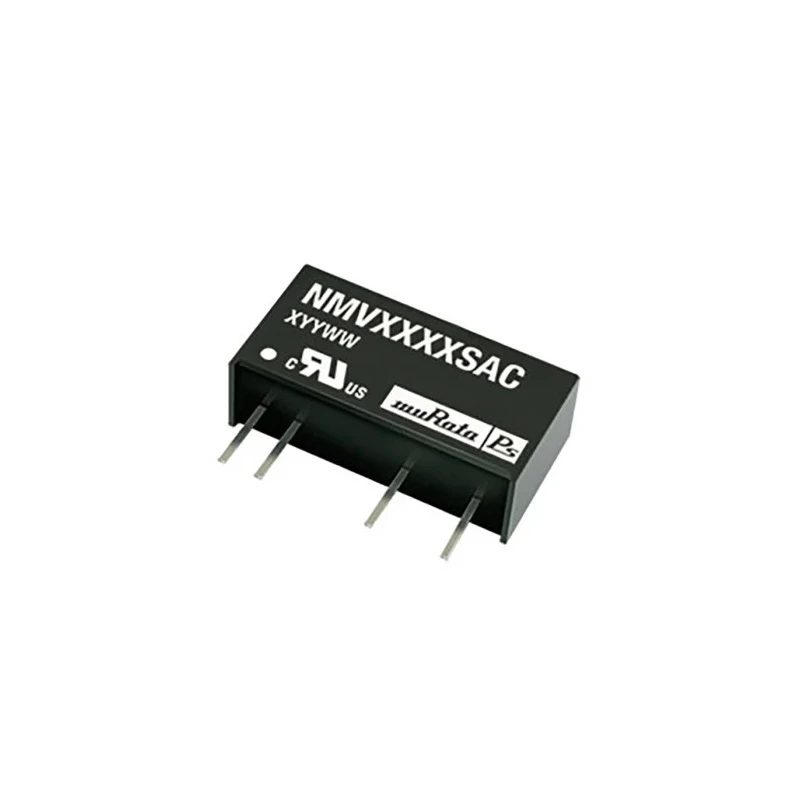

Murata Power Solutions NMV SIP7 Through Hole 1W DC/DC Converter 5V Output 4.5-5.5V Input NMV0505SAC
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NMV DC/DC Converter, 5V dc/ |
| Brand | Murata Power Solutions |
| Efficiency | 68% |
| Length | 19.5mm |
| Model | NMV0505SAC |
| Depth | 10mm |
| Gross Weight | 2.1g |
| Width | 10mm |
| Mount Type | Through Hole |
| Series | NMV |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 4241000h |
| Number of outputs | 1 |
| Ripple and Noise | 23mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5.5V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 7 |
| Output Voltage 1 | 5V dc |
| Output Voltage Adjustment Range | 4.5/5.5 V |
| Isolation Voltage | 3kV dc |
| Output Current 2 | 200mA |
Key Features
- High efficiency isolated DC/DC converter with 68% efficiency.
- Unregulated output suitable for various electronic applications.
- Operating temperature range from -40°C to 85°C for robust performance.
- 7-pin SIP plastic package with UL 94V-0 rated materials ensures durability.
- Provides 3kV DC input/output isolation for enhanced safety.
- Low output ripple and noise at 23mV peak-to-peak.
- Mean time between failures (MTBF) of 4,241,000 hours ensuring reliability.
- No external components required for simple integration.
Product Description
Murata Power Solutions NMV0505SAC is a 1-watt DC/DC converter designed for electronic and power supply applications, featuring a through-hole SIP7 plastic package. It operates efficiently with an unregulated isolated output voltage of 5V supplied from an input range of 4.5 to 5.5 volts DC. The converter supports a maximum output current of 2200mA and offers an input-output isolation voltage of 3kV DC, allowing enhanced safety in sensitive circuits.
This converter boasts a high mean time between failures (MTBF) of over 4 million hours, reflecting its reliability in industrial, laboratory, and commercial usage scenarios. It sustains operation within a wide temperature range of -40°C to 85°C, making it suitable for harsh environments.

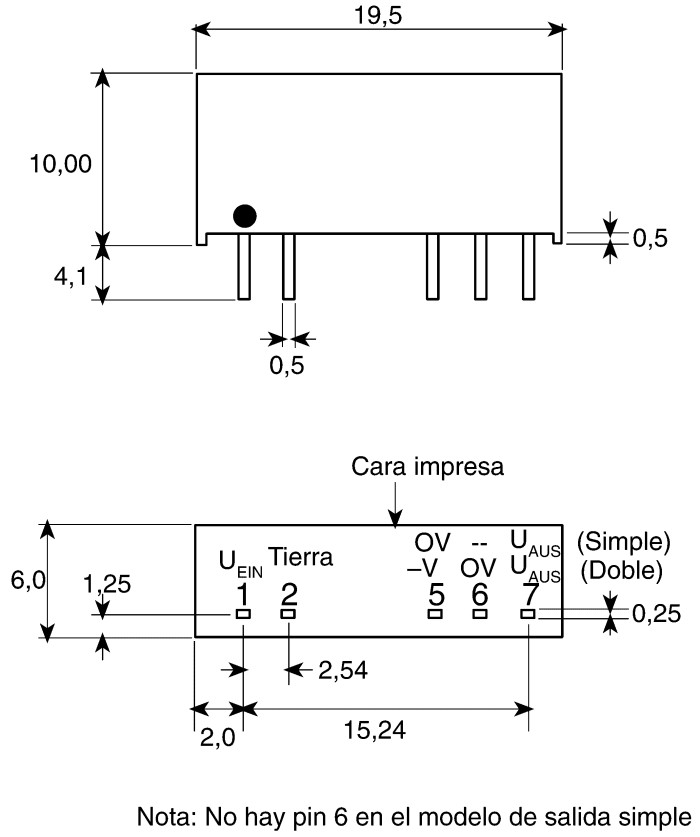

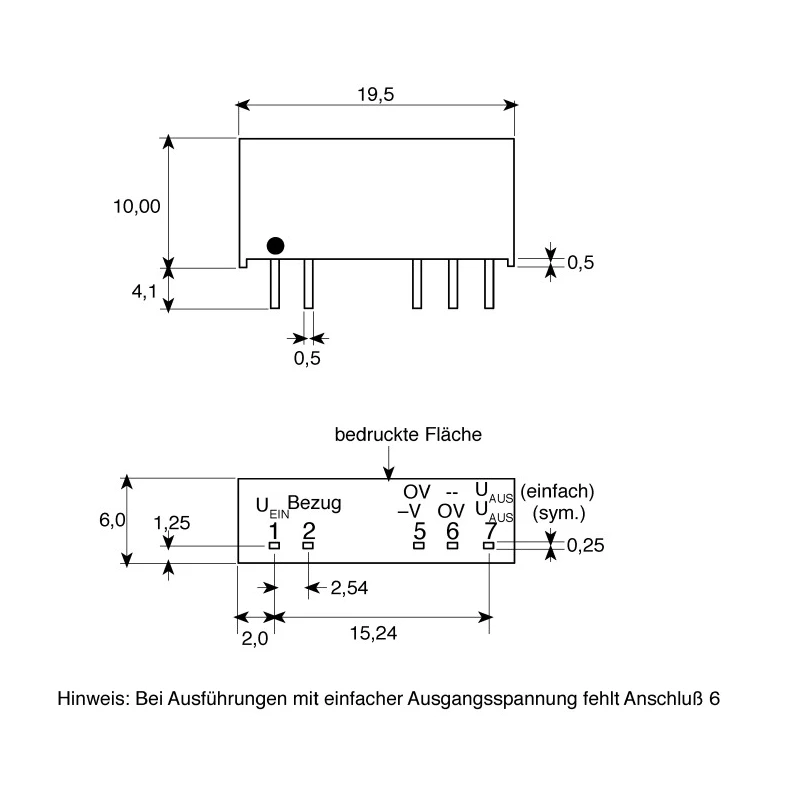

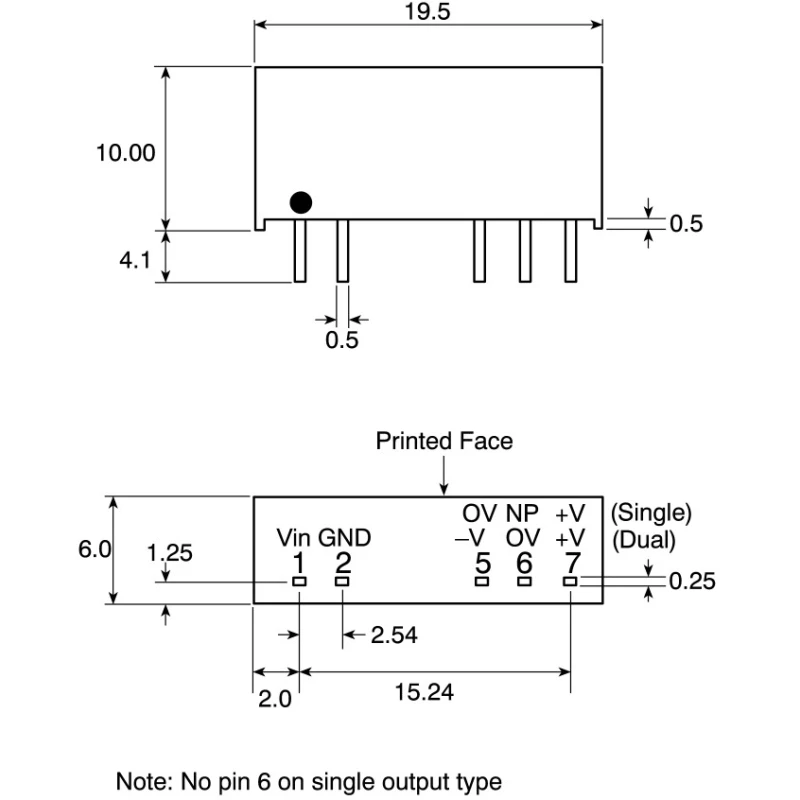

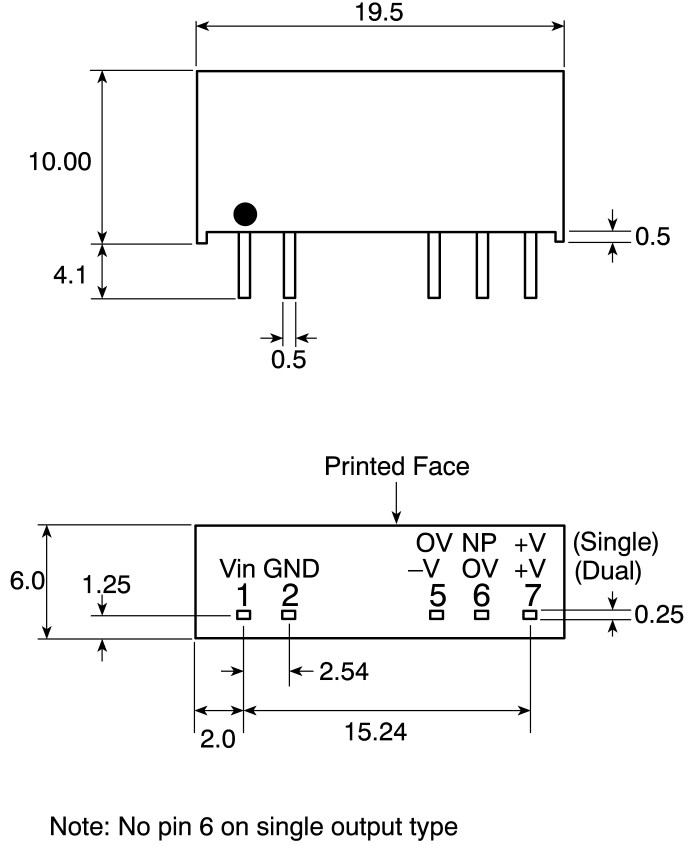

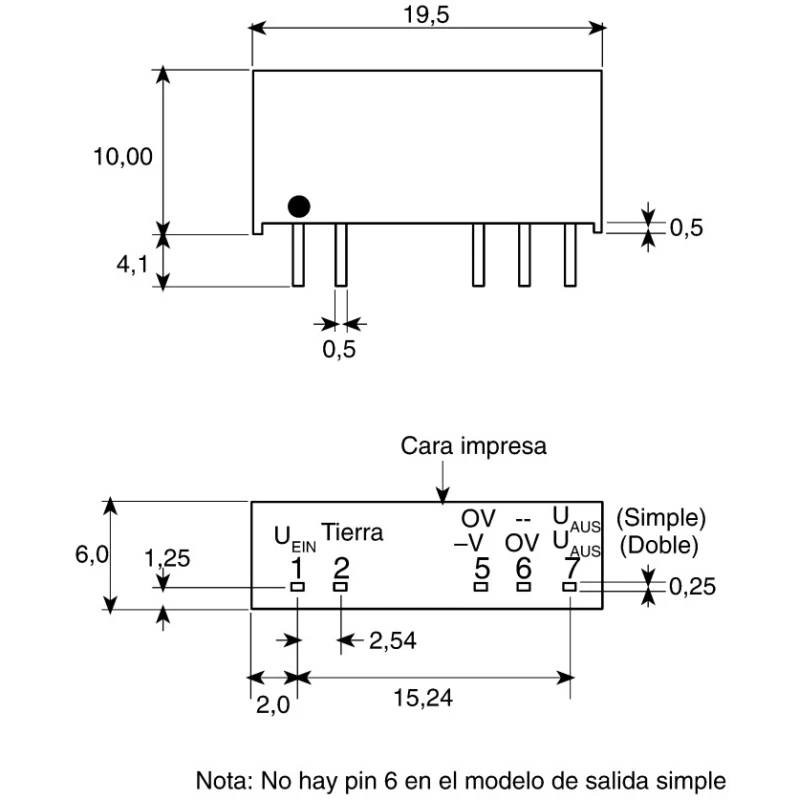

The device’s compact SIP7 plastic package is built with UL 94V-0 rated materials and has dimensions of 19.5mm in length, 10mm in width, and 10mm in depth, facilitating easy through-hole mounting on printed circuit boards. Its internal surface-mount device (SMD) structure ensures robust mechanical and electrical integrity without the need for external components, simplifying system design and assembly.
The output exhibits low ripple and noise at 23mV peak-to-peak, contributing to stable voltage for sensitive electronic modules. With an efficiency of 68%, this converter helps optimize power usage in embedded systems and small-scale power management modules.
Typical applications for the NMV0505SAC include industrial control systems, telecommunications equipment, instrumentation, and general electronics requiring reliable DC power conversion with isolation and wide temperature tolerance. Murata’s quality and compliance with RoHS standards assure sustainability and reduced environmental impact.
High efficiency isolated 1W DC/DC converter. Unregulated 5V output from 4.5 to 5.5V input. Operating temperature from -40°C to +85°C. 3kV DC input-output isolation voltage. Compact SIP7 UL94V-0 rated package. Low ripple and noise at 23mV peak-to-peak.
Designed for industrial and telecommunications applications. Long MTBF of 4,241,000 hours ensures reliability. No external components required. Explore the full range of Murata Power Solutions DC/DC Converters at EnvMart, ideal for precision and industrial-grade electronic power supply solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The NMV0505SAC operates with an input voltage range of 4.5V to 5.5V DC.
This model can provide a maximum output current of 2200mA.
It has an efficiency rating of 68%.
The NMV0505SAC offers an isolation voltage of 3kV DC.
The SIP7 package has dimensions of 19.5mm in length, 10mm in width, and 10mm in depth.
This device operates within a temperature range of -40°C to 85°C.
The output exhibits low ripple and noise at 23mV peak-to-peak.
The NMV0505SAC provides one output.
This model utilizes a through-hole mounting type.
The MTBF for the NMV0505SAC is 4,241,000 hours.
This converter complies with RoHS standards.
No external components are required for the integration of this model, simplifying system design.
