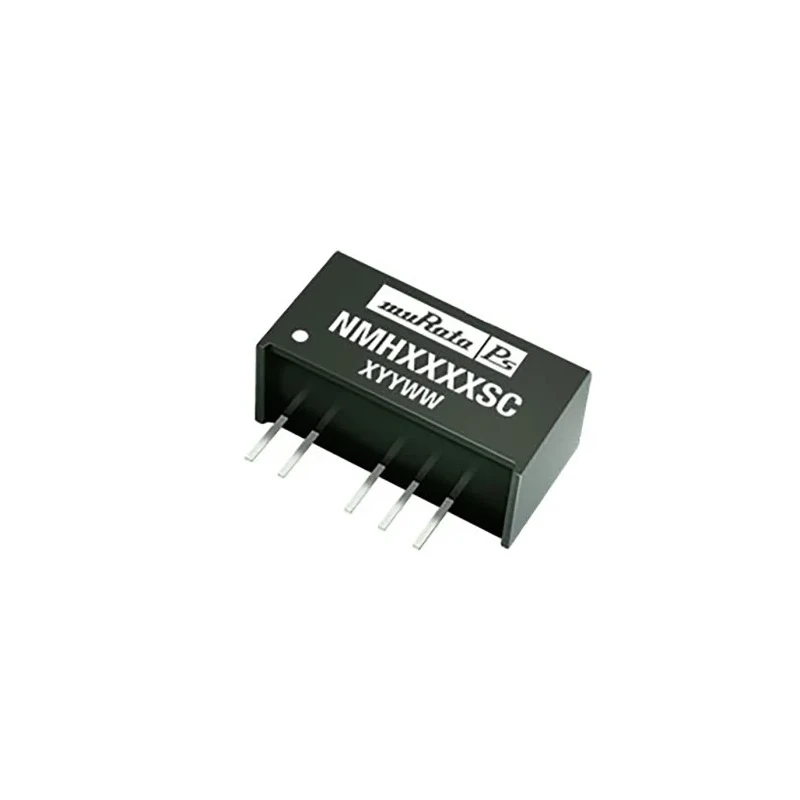

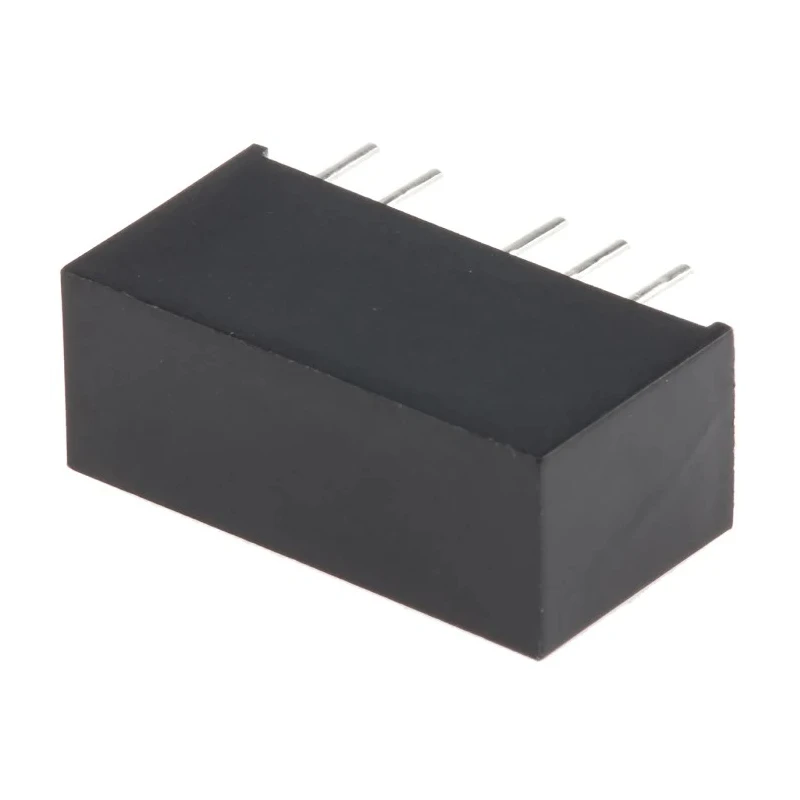

Murata Power Solutions NMH Series 2W SIP Dual Output Unregulated Isolated DC-DC Converter 12V dc, -12 V dc, 83 mA NMH0512SC
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NMH DC/DC Converter, 12V dc |
| Brand | Murata Power Solutions |
| Efficiency | 82% |
| Length | 19.5mm |
| Model | NMH0512SC |
| Depth | 10mm |
| Gross Weight | 2.76g |
| Width | 19.5mm |
| Mount Type | Through Hole |
| Series | NMH |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 5.5V dc |
| Standards/Approvals | UL 60950, RoHS |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 7 |
| Output Voltage 1 | 12, -12V dc |
| Output Current 1 | 83mA |
| Isolation Voltage | 1kV dc |
Key Features
- High efficiency 2W dual output converter suitable for compact electronic devices.
- Offers unregulated isolated outputs with 1kV dc isolation for reliable performance.
- Through-hole SIP7 plastic package allows easy circuit board integration.
- Wide operating temperature range from -40°C to 85°C enables robust use in varied environments.
- Internal SMD construction and UL 94V-0 package material ensure durability and safety compliance.
- No external components are required for installation simplifying assembly and reducing costs.
- Provides ripple and noise of only 50mV peak-to-peak ensuring stable power delivery.

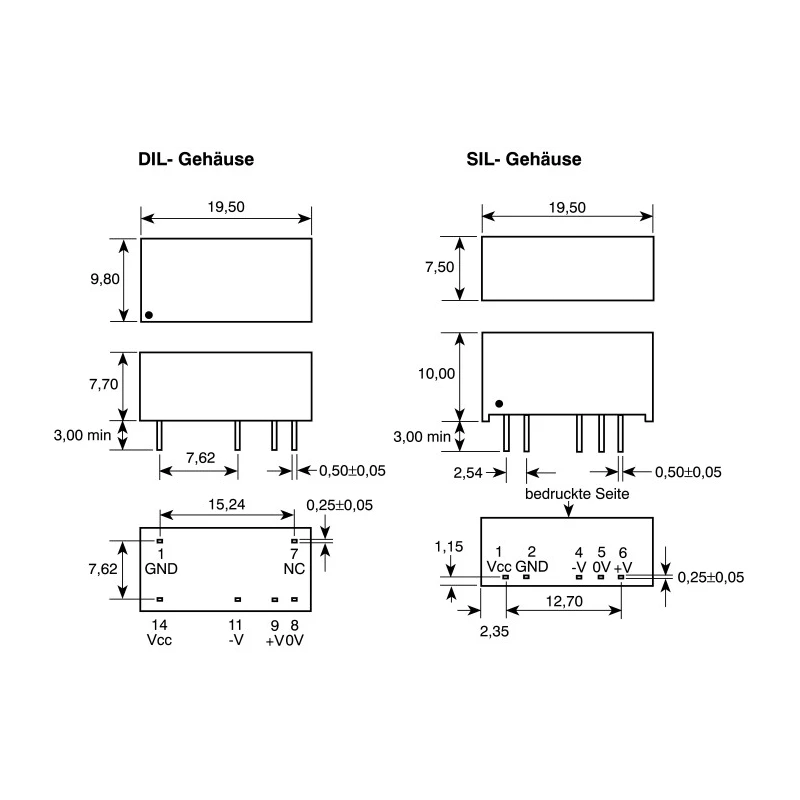

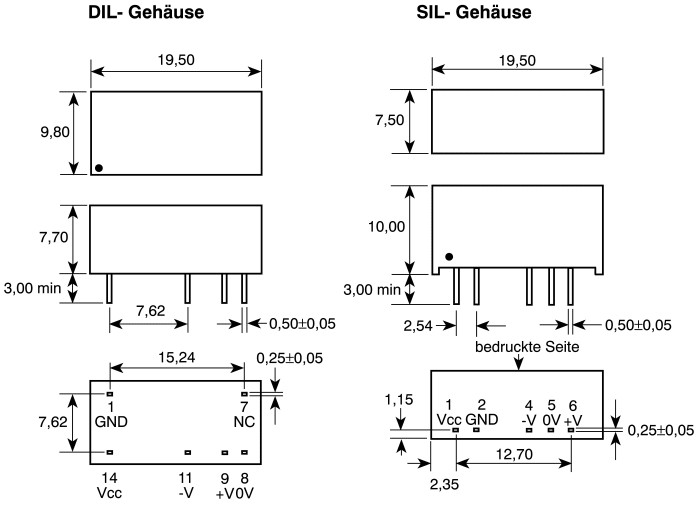

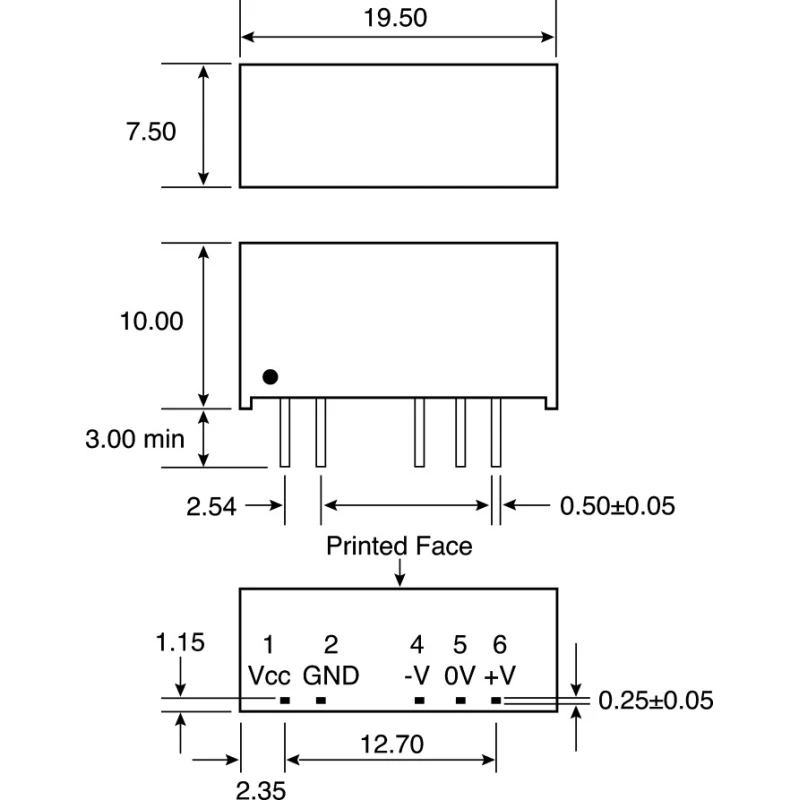

- Designed with 7 pins and compact dimensions of 19.5mm length, 19.5mm width, and 10mm depth.
Product Description
Murata Power Solutions presents the NMH0512SC, a 2 Watt SIP series dual output unregulated isolated DC-DC converter designed for electronics applications requiring compact and reliable power conversion. This model provides dual outputs of +12V and -12V DC at 83mA current capability, with a maximum input voltage of 5.5V DC and minimum of 4.5V DC. It features through-hole mounting in a 7-pin SIP7 plastic DIP package with UL 94V-0 flame retardant material, suitable for industrial and commercial electronic systems.
The NMH0512SC exhibits high efficiency around 82%, contributing to energy savings and reducing heat dissipation. It offers 1kV DC input/output isolation enhancing system safety and noise immunity. The internal surface-mount construction ensures compactness without the need for any external components, enabling easy PCB integration and lowering design complexity.
Operating temperature spans from -40°C to 85°C, making it robust for harsh environments found in industrial automation, measurement instruments, and communication equipment. This converter also maintains low ripple and noise levels of 50mV peak-to-peak, ensuring consistent and clean power supply to sensitive electronic circuits.
High efficiency 2W power conversion. Dual outputs of +12V and -12V DC at 83mA. Through-hole SIP7 DIP package with UL 94V-0 plastic material. 1kV DC isolation voltage for safety and noise reduction. Wide operating temperature range from -40°C to 85°C.
No external components needed for operation. Compact dimensions: 19.5mm length, 19.5mm width, 10mm depth. Low ripple and noise of 50mV Pk-Pk.
This Murata NMH series DC-DC converter is ideal for embedding in industrial machines, control systems, communication devices, and test instruments requiring compact and isolated dual power rails. Its high reliability and ease of use support efficient product development and maintenance.
Explore our broad catalog for more Murata Power Solutions modules and reliable DC power components to meet diverse industrial and commercial application needs.
Explore more products in our DC/DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual outputs of +12V and -12V DC at a current capability of 83mA.
The NMH0512SC has a maximum input voltage of 5.5V DC and a minimum input voltage of 4.5V DC.
This model exhibits an efficiency rating of approximately 82%.
It operates within a wide temperature range from -40°C to 85°C, making it suitable for various environments.
The NMH0512SC maintains a low ripple and noise level of 50mV peak-to-peak, ensuring stable power delivery.
This unit features through-hole mounting in a 7-pin SIP7 plastic DIP package.
The dimensions are 19.5mm in length, 19.5mm in width, and 10mm in depth.
It provides an isolation voltage of 1kV DC, enhancing system safety and noise immunity.
No, it does not require any external components for operation, simplifying assembly and reducing costs.
The NMH0512SC complies with UL 60950 and RoHS standards.
The gross weight of this model is 2.76g.
This DC-DC converter is ideal for embedding in industrial machines, control systems, communication devices, and test instruments.
