Murata Power Solutions Unregulated Isolated 1W Dual Output DC/DC Converter Through Hole SIP7 Package NMA0512SC

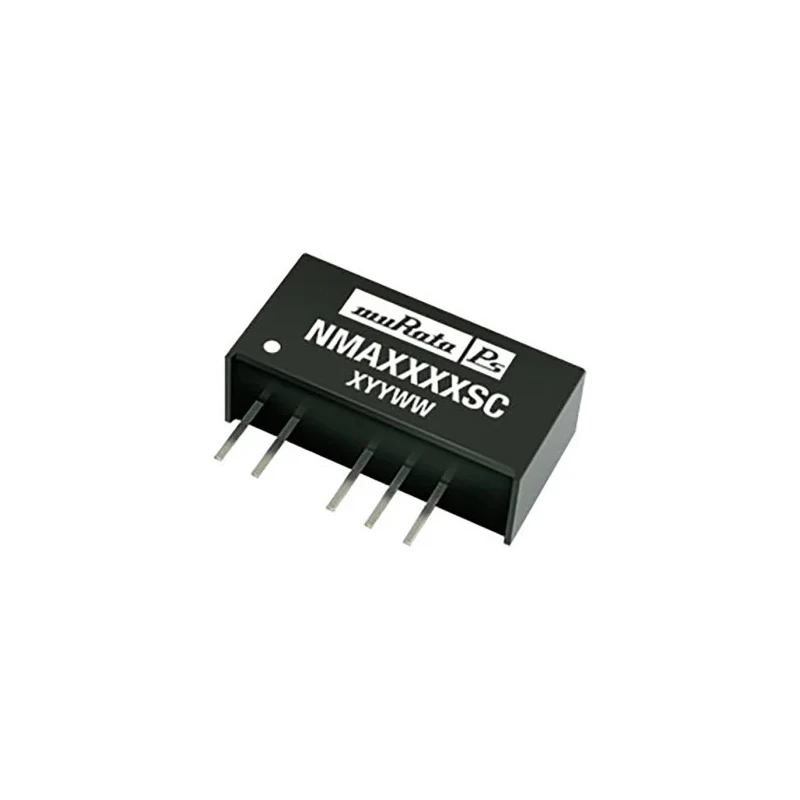

Murata Power Solutions NMA0512SC DC/DC Converter is a high-performance, unregulated, isolated power module designed for converting low voltage DC inputs into dual output voltages of +12 V and -12 V DC at 1 W power rating. Its compact SIP7 through-hole plastic package enables easy PCB mounting with seven pins and ensures robust mechanical reliability.

Operating with an input voltage range from 4.5 V to 5.5 V DC, this converter is suitable for low-power industrial electronics applications requiring isolated dual voltage rails. The module achieves 77% efficiency, minimizing power loss and heat generation, while delivering low output ripple noise at 15 mV peak-to-peak, ensuring clean power supply to sensitive electronics.

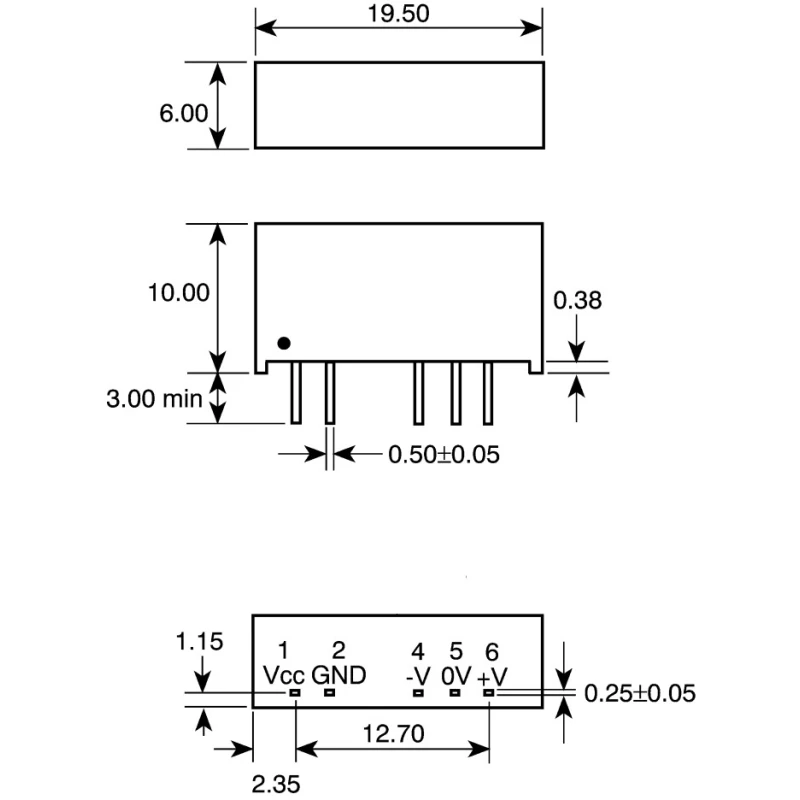

The device features isolation voltage of 1 kV DC between input and output, which aids in noise reduction and protects downstream circuits. Encased in a flame-retardant UL94V-0 plastic DIP package with dimensions of 19.5 mm length, 19.5 mm width, and 10 mm depth, it is suitable for compact designs across industrial, communication, measurement, and control equipment.

With a rated operating temperature range of -40 °C to +85 °C, the NMA0512SC functions reliably in wide temperature environments. It does not require external components, reducing overall system cost and complexity. The product meets RoHS compliance standards reflecting environmentally safe manufacturing processes.

This DC/DC converter is ideal for use in isolation applications, signal processing, instrumentation, and industrial automation where stable dual voltage supplies are essential. Its long MTBF value of 3.1 million hours endorses its reliability for mission-critical embedded systems.

High efficiency up to 77 percent ensures reliable power conversion. Dual output voltages of +12 V and -12 V DC support diverse applications. Wide input voltage range from 4.5 V to 5.5 V DC facilitates flexible powering options.

Features 1 kV DC isolation between input and output for safety and noise reduction. Compact DIP package measuring 19.5 mm by 19.5 mm and 10 mm deep. Low ripple and noise output with 15 mV peak-to-peak rating. No external components required simplifying circuit design.

Operating temperature range from -40 °C to 85 °C supports harsh environments. SIP7 plastic package with flame-retardant UL94V-0 material for safety compliance. Mean time between failures (MTBF) rated at 3.1 million hours for long operational life.
