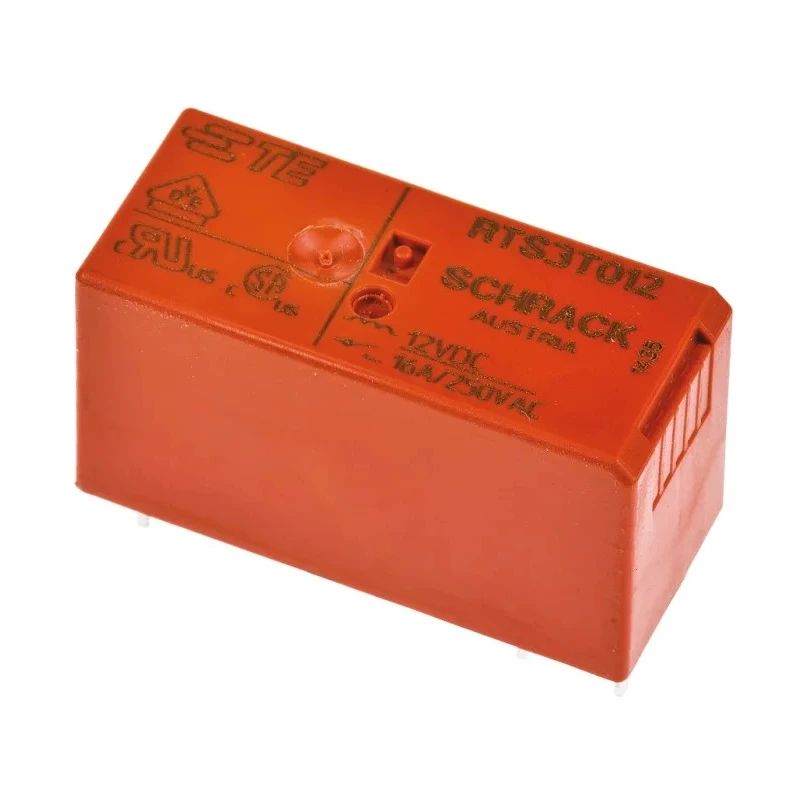

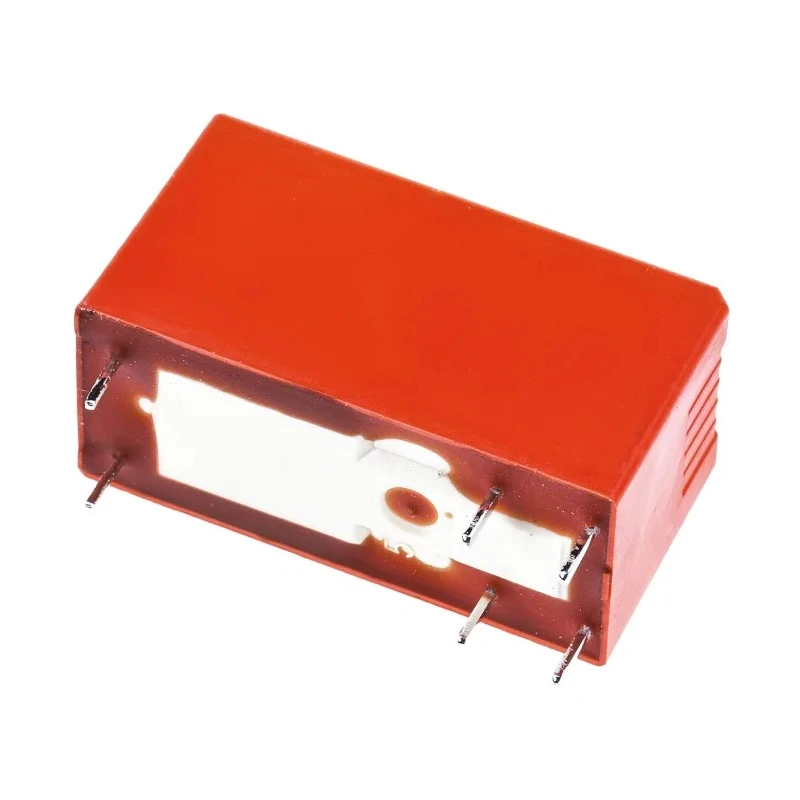

TE Connectivity PCB Power Relay 12V DC Coil 16A Switching Current SPST RTS3T012
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTS3T012 |
| Width | 12.7mm |
| Mount Type | PCB |
| Series | RT-iPower |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- This relay is designed for PCB mount applications with solder terminal type.
- The relay operates between -40°C and 85°C, suitable for varied environmental conditions.
- It supports a switching AC voltage of up to 400V AC and switching power of 4 kVA.
- Coil resistance is 360 ohms, and coil power consumption is 250 mW for efficient operation.

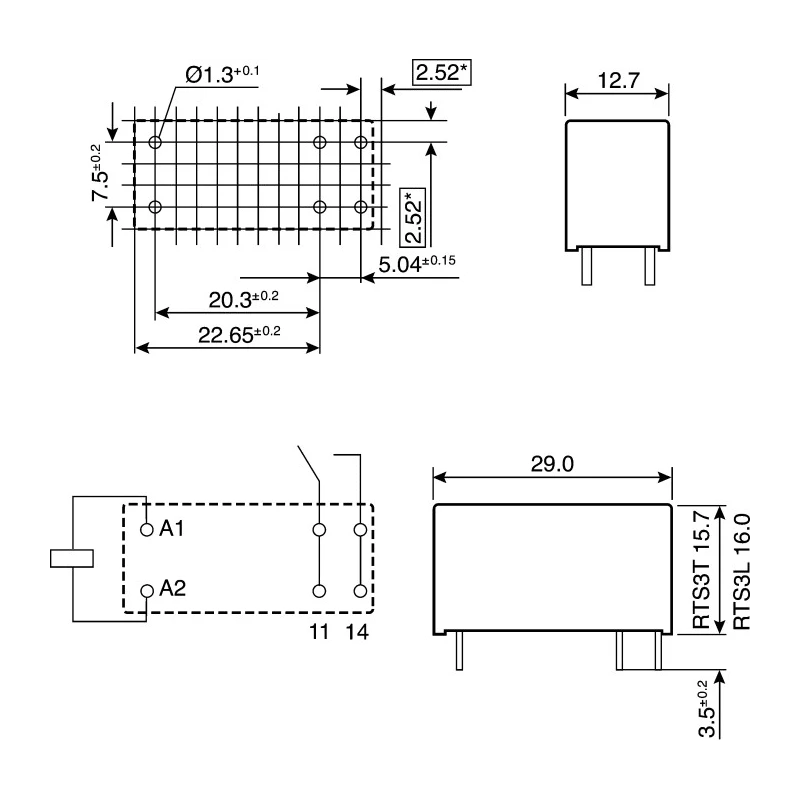

- Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height optimize PCB space.
- Compliance with IEC 60335-1, RoHS, and VDE standards ensures safety and environmental compatibility.
- Applications include lighting systems, movement sensors, filament lamps, and motor controls.
Product Description
TE Connectivity RTS3T012 PCB Power Relay is a new, high-quality relay designed for industrial and electronic applications requiring reliable switching performance. Featuring a 12V DC coil voltage and a robust 16 amp switching current, this single-pole single-throw (SPST) relay efficiently manages load switching on printed circuit boards with soldered terminals.
The relay belongs to the RT-iPower series, known for high inrush current tolerance and reinforced insulation with a creepage and clearance of 10mm. It provides a switching power rating of 4 kVA and can handle AC voltages up to 400 volts, making it suitable for various power relay use cases in industrial automation, lighting control, and motor switching circuits.
Designed to withstand operating temperatures ranging from -40°C to 85°C, the RTS3T012 maintains reliable function in diverse environmental conditions. It uses tungsten silver tin oxide as contact material to ensure longevity and durability under switching stresses. The relay’s compact form factor - 29mm in length, 12.7mm width, and 15.7mm height - is optimized for space-constrained PCB layouts.
Certified with IEC 60335-1, RoHS compliance, and VDE approvals, this power relay meets international safety and environmental regulations, providing peace of mind for manufacturers and designers. Its typical applications include lighting systems, movement sensor circuits, filament and incandescent lamp loads, and motor control.
This relay mounts directly to PCBs using solder terminals for secure installation. Its coil resistance of 360 ohms and coil power rating of 250 milliwatts ensures low power consumption. The reinforced insulation rating enhances electrical isolation and safety performance.
Widely applicable in industrial automation, HVAC control, water treatment, and manufacturing equipment. Its compliance with multiple standards supports use in international markets and regulated environments. The RTS3T012 is engineered for durability, reliability, and compactness in Power Relay applications.
Explore EnvMart’s extensive collection of reliable relays and power control components for professional industrial, laboratory, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RTS3T012 relay has a switching current of 16A.
This model operates with a coil voltage of 12V DC.
The relay measures 29mm in length, 12.7mm in width, and 15.7mm in height.
It supports a maximum switching AC voltage of 400V AC.
The coil resistance of this relay is 360 ohms.
The coil power consumption is 250 mW.
This relay operates effectively between -40°C and 85°C.
It is designed for PCB mounting with solder terminals.
This relay complies with IEC 60335-1, RoHS, and VDE standards.
It is suitable for applications including lighting systems, movement sensors, filament lamps, and motor controls.
This model belongs to the RT-iPower series.
The switching power rating is 4 kVA.
